Form 4D and Form 6 Control Settings
The Form 4D and Form 6 controls must be programmed
with a PT ratio and a phase angle adjustment; refer
to Tables 8 and 9. These are entered in the System
Configuration screen (Figures 20 and 21).
When programming either control, the PT connection must
be set for a Wye connection. Also, the Phantom Phase fea-
ture must be disabled.
Refer to • Service Information S280-104-2 for more
information on programming the Form 4D control.
Refer to • ServiceInformationS280-70-4 for more infor-
mation on programming the Form 6 control.

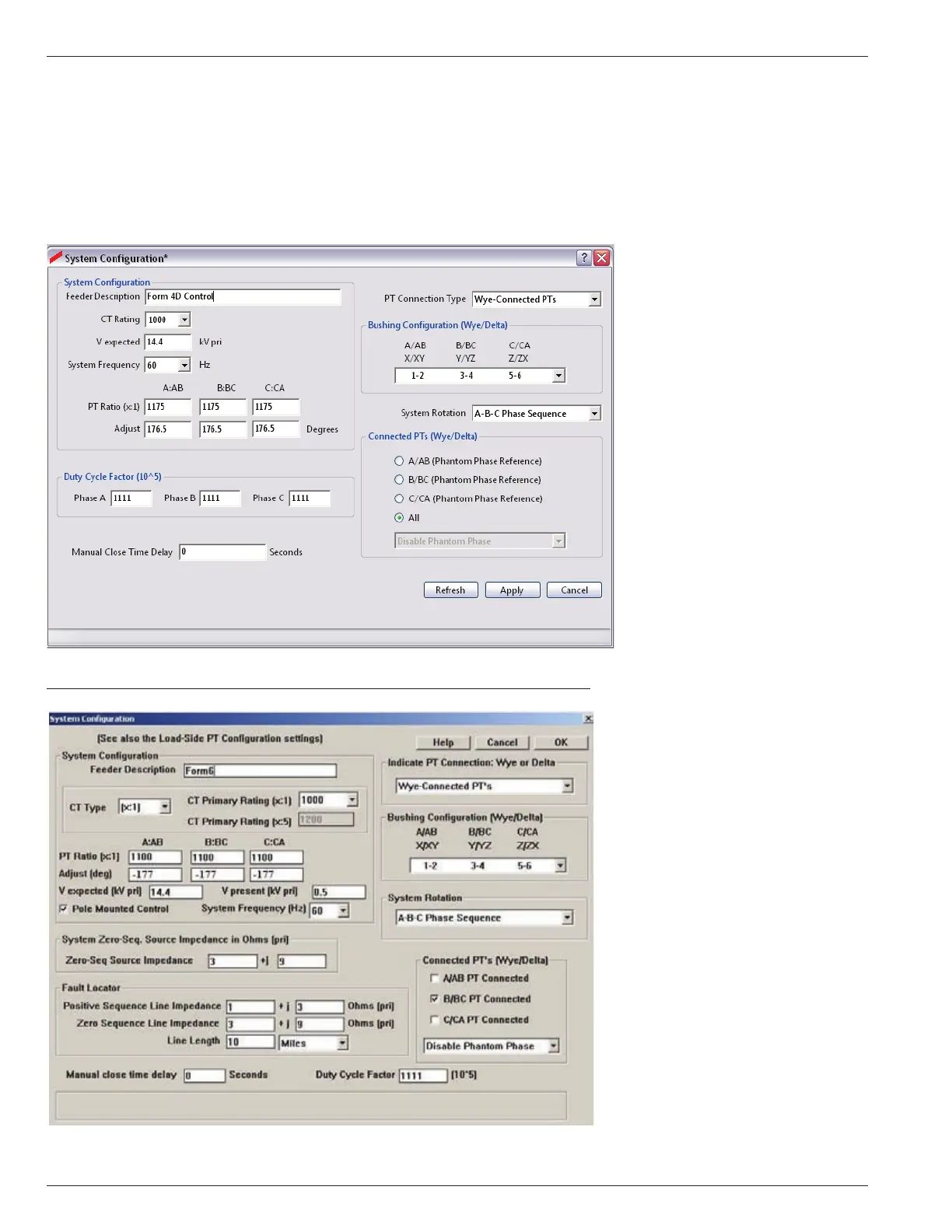

Figure 20.
Form 4D control System Configuration screen.
Figure 21.
Form 6 control System Configuration screen.
