Operation
Form 5 Control Settings
The Form 5 control must be programmed with an adjusted
voltage sensor ratio and a phase angle correction; refer to
Tables 8 and 9. These are entered in the Form 5, Voltage
Sensor Parameters screen (Figure 19).
The Form 5 control Recloser Interface (RIF) module must
be set to 12 V for the source side bushings. (The load side
bushings are not configured to work with the internal volt-
age sensing option and are set as described in the Form
5 Programming Guide.) Also, the Phantom Phase feature
can not be enabled on the Form 5 control when using the
voltage sensing option.
Refer to • ServiceInformationS280-79-10 for installation
and operation information of the Form 5 control.
Refer to • ServiceInformationS280-79-2 for more infor-
mation on programming the Form 5 control.
S280-42-1
17
!
SAFETY
NOW
!
SAFETY
FIRST
!
SAFETY
FOR YOUR SAKE
!
SAFETY
MAKES SENSE
!
SAFETY
USE IT
!
SAFETY
FOR LIFE

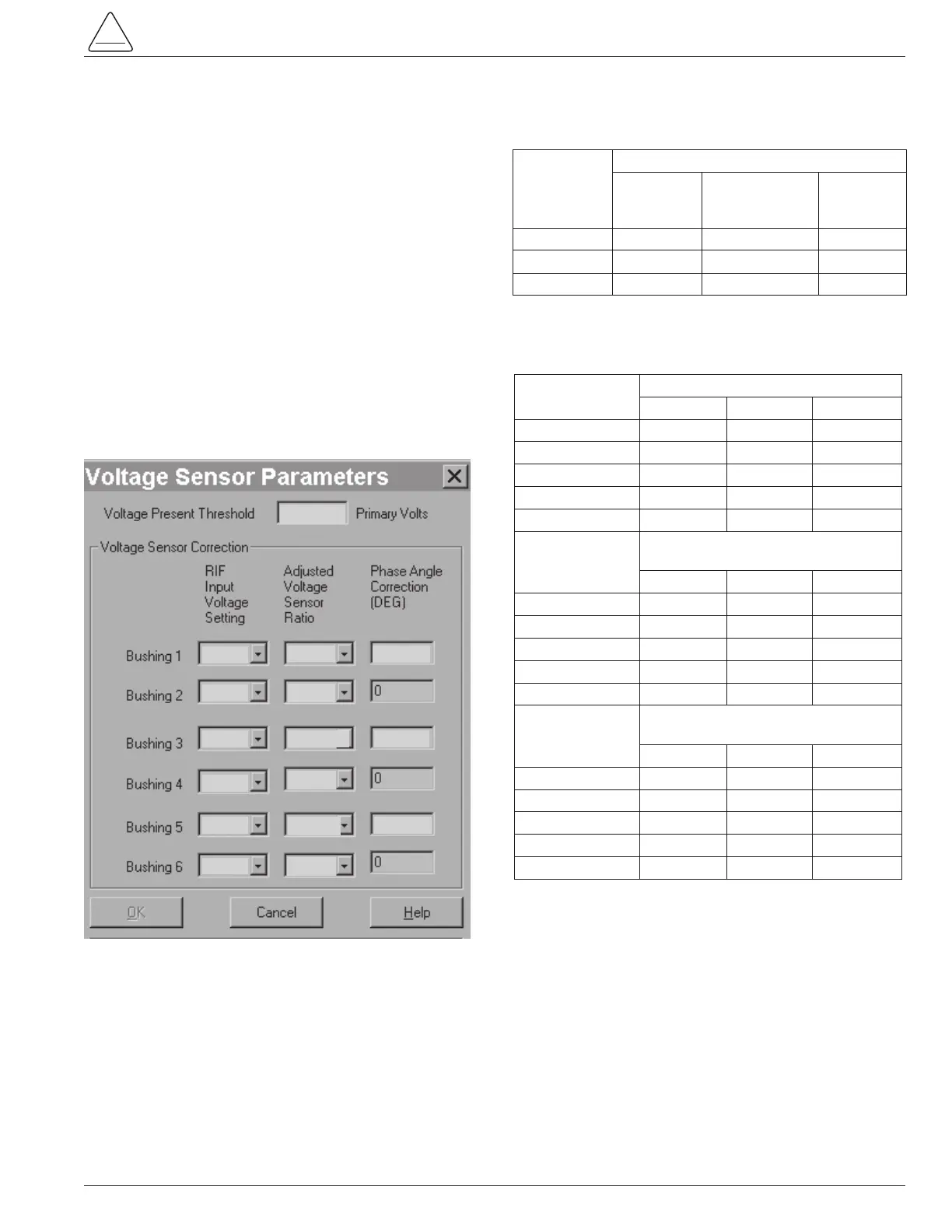

Figure 19.
Form 5 control Voltage Sensor Parameters screen.
140.84
140.84
140.84
-3.3
-3.3
-3.3
12
120
12
120
12
120
12000.0
120
120
120
TABLE 8
Adjusted Voltage Sensor Ratio/PT Ratio
Recloser
Recloser Control
Form 4D
PT Ratio
Form 5
Adj. Voltage
Sensor Ratio
Form 6
PT Ratio
NOVA 15 1175:1 140.84:1 1100:1
NOVA 27 2370:1 281.69:1 2200:1
NOVA 38 2370:1 281.69:1 2200:1
Note: For Form 4D controls, the phase shift is adjusted -0.6°
for each additional 3.05 m (10 ft.) of cable.
For Form 5 controls, the phase shift is adjusted -0.8° for
each additional 3.05 m (10 ft.) of cable.
For Form 6 controls, the phase shift is adjusted +0.8° for
each additional 3.05 m (10 ft.) of cable.
Note: This Service Information issue contains the correct
phase angle adjustment for concurrent cable and reclos-
er design. Note the manual issue date and correspond-
ing recloser serial numbers: design changes can impact
the phase angle adjustment.
*Maximum cable length is 15.25 m (50 ft.).
TABLE 9
Phase Angle Adjustment
Voltage Sensor
Cable Length*
Phase Shift, NOVA 15
Form 4D Form 5 Form 6
3.05 m (10 ft.) 177.1° -3.3° -177.8°
6.10 m (20 ft.) 176.5° -4.1° -177.0°
9.15 m (30 ft.) 175.9° -4.9° -176.2°
12.2 m (40 ft.) 175.3° -5.7° -175.4°
15.25 m (50 ft.) 174.7° -6.5° -174.6°
Phase Shift, NOVA 27 and NOVA 15
with extended BIL
Form 4D Form 5 Form 6
3.05 m (10 ft.) 175.9° -4.0° -176.0°
6.10 m (20 ft.) 175.3° -4.8° -175.2°
9.15 m (30 ft.) 174.7° -5.6° -174.4°
12.2 m (40 ft.) 174.1° -6.4° -173.6°
15.25 m (50 ft.) 173.5° -7.2° -172.8°
Phase Shift, NOVA 38 and NOVA 27
with extended BIL
Form 4D Form 5 Form 6
3.05 m (10 ft.) 174.1° -6.6° -174.2°
6.10 m (20 ft.) 173.5° -7.4° -173.4°
9.15 m (30 ft.) 172.9° -8.2° -172.6°
12.2 m (40 ft.) 172.3° -9.0° -171.8°
15.25 m (50 ft.) 171.7° -9.8° -171.0°
