Testing with Type MET Tester
Use the Kyle
®
Type MET electronic recloser control tester
(Figure 10) to test the following functions of the Form 6
recloser control:
• Overcurrent Timing
• Reclose Time
• Operating Sequence
• Reset Time
The MET Tester is completely self-contained, capable of
performing all required checks and tests to verify over-
current protection parameters.
Refer to Service Information S280-76-1 Type MET
Electronic Recloser Control Tester Operating Instructions
for proper setup and use of the MET Tester.
Additional Testing Required
Apply and verify source side voltage levels per your local
standard utility procedures.
S280-70-11
11
!
SAFETY
FOR LIFE
TB1
1
2
3 5 7 9 11 13 15 17 19
46 81012141618
CI1
CI2 CI3 SS1 CO1
CO2 CO3
CO4
CI4
CI1 CI2 CI3 SS1 CO1 CO2 CO3 CO4
TB3
1
3
5 7 9 1113151719 21
CI5 CI6 CI7 CI8 CI9 CI10 CI11 CO5 CO6
TB4
2
46 81012141618
20
CI4 CI5 CI6 CI7 CI8 CI9 CI10 CI11 CO5
CO6
13
5
7 9 11 13
CO7 CO8
CO9 CO10 CO11
CO12
2
46 81012
CO7 CO8 CO9 CO10 CO11 CO12
J1 RS232
J2 IRIG-B
TTL IRIG-B
J3 RS485
2-Wire RS485
FUSE
(10 AMP)
FUSE
(10 AMP)
TB5
+
1
-
5
2
-
4
+
INPUT POWER AUXILIARY POWER
28 VDC
RECLOSER INTERFACE CONNECTIONS
A
1
D
3
F
57
2
B
4
C
6
E
TB6
RS232 DTE
TB2
•
12
•
34
•
56
•
78
•
910
•
11 12
•
13 14
•
15 16
•
17 18
•
19
20
I(1-2)
I(3-4) I(5-6) V(1-2)
V(3-4) V(5-6) V1
I(SEF)
Mfg. No. 6A0016010XX
*Location of
Module Mfg. No.
Refer to Table 3

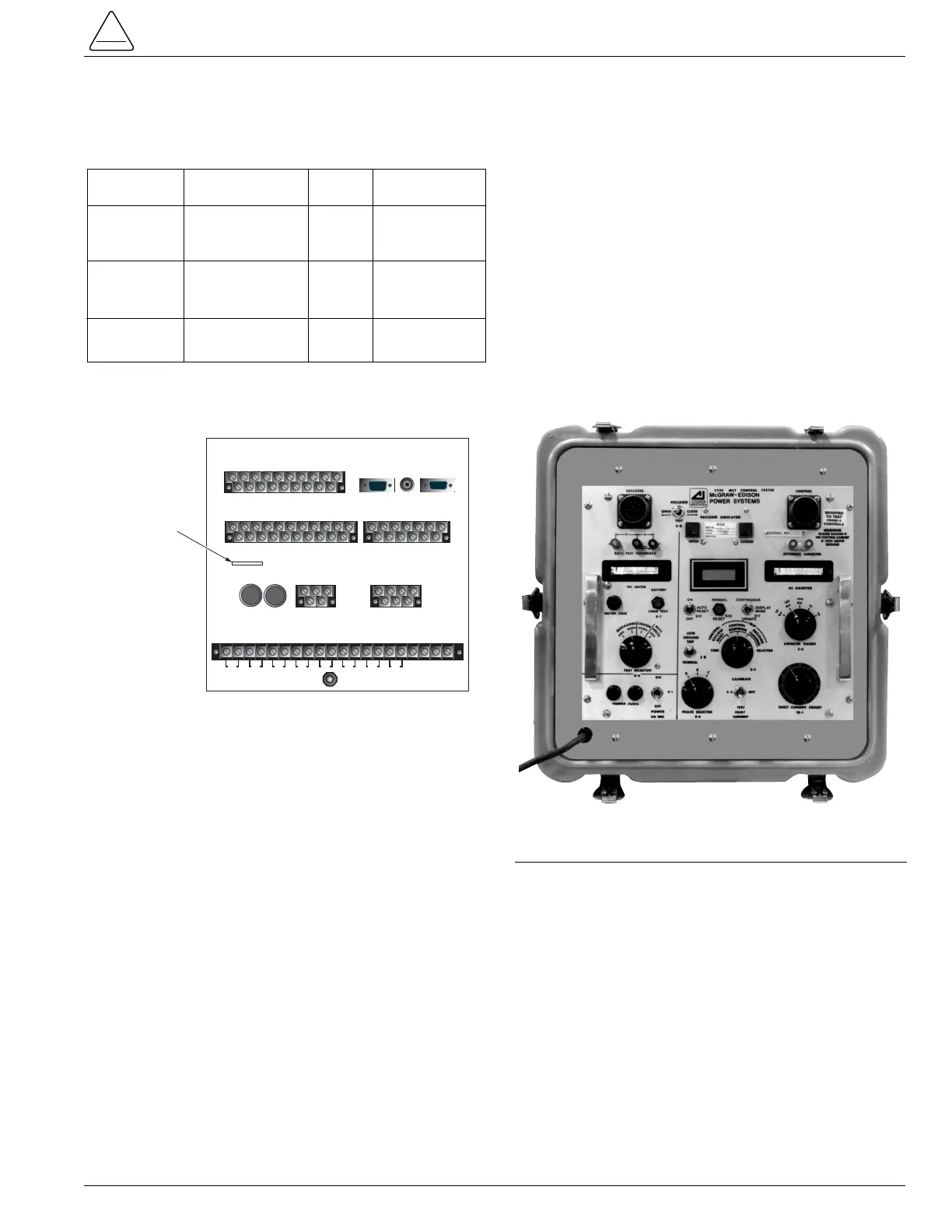

Figure 9.
Module Mfg. No. location on back of Form 6 rack
and yard mount control.
Module Input Nominal Minimum
Mfg. No.* Voltage Current Operating Time
6A00160121 12 Vdc – 48 Vdc 5 mA 5 milliseconds
through
6A00160128
6A00160129 48 Vdc – 125 Vdc, 5 mA 5 milliseconds
through 120 Vac
6A00160136
6A00160170 12 Vdc – 250 Vdc 5 mA 5 milliseconds
120 Vac – 240 Vac
TABLE 3
Operating Voltage Requirements for Standard and
Optional Supervisory Inputs for Form 6 Rack and
Yard Mount Recloser Controls
*Refer to Figure 7 for location of Module Mfg. No.
Figure 10.
Kyle
®
Type MET electronic recloser control tester.
010028KM
