Types VW and VWV Maintenance Instructions
16
SERVICE PARTS LIST
The service parts and hardware listed and illustrated include
only those parts and assemblies usually furnished for repair or
involved in the maintenance procedures described in this man-
ual. Further breakdown of listed assemblies is not recom-
mended.
Dimensions of all common hardware parts have been care-
fully checked so that they may be locally acquired. The suffix let-
ter of the 14 character catalog number for common hardware
parts codes the plating of the part:
A - No plating; raw material
H - Silver
M- Black oxide
Q - Cadmium + zinc + chromate
Y - Zinc + chromate
Z - Electro zinc + bronze irridite
A hardware kit, Catalog No. KA849R1, contains an assortment
of roll pins, cotter pins, retaining rings, stop nuts, etc.—common
hardware parts used in Cooper Power System's reclosers that
may not be readily locally available.
To assure correct receipt of any parts order, always include
recloser type and serial number. Because of Cooper Power Sys-
tem's continuous improvement policy, there may be instances
where the parts furnished may not look exactly the same as the
parts ordered. However, they will be completely interchangeable
without any rework of the recloser.
All parts carry the same warranty as any whole item of
switchgear, i.e. against defects in material or workmanship within
a period of one year from date of shipment.

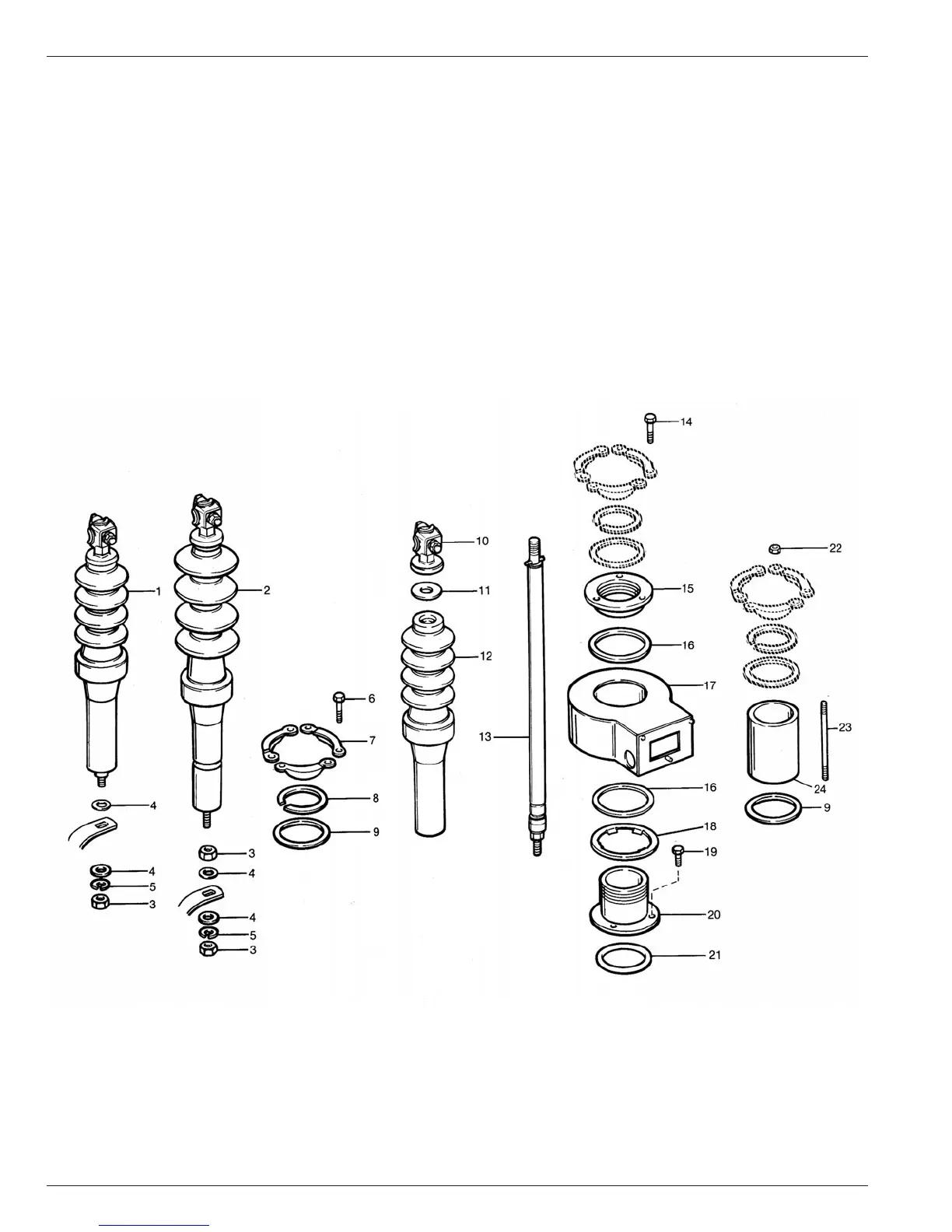

Figure 25.
Bushing Parts.
