Cornelius CB2323 - Syrup System Installation; CO2 System Installation

IntelliCarb Drop-In Ice Cooled Installation Guide
© 2003-2017, Cornelius Inc. - 11 - Publication Number: 630460204INS
4. Connect from water filter system outlet to water regulator assembly and tee to surge tank

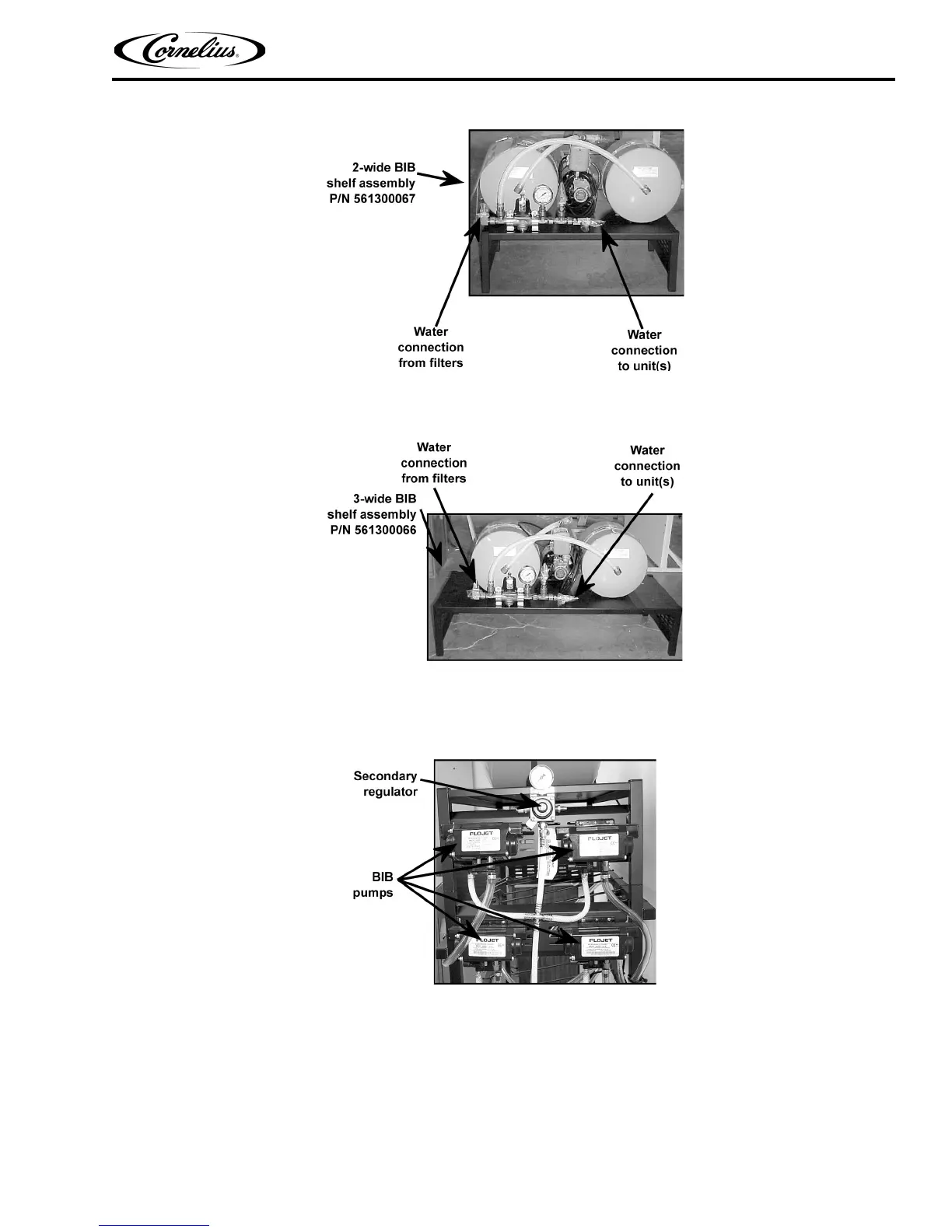

Figure 7. 2-Wide BIB Shelf Assembly
5. Connect water lines from manifold outlet to water line going to each dispenser
Figure 8. 3-Wide BIB Shelf Assembly
Syrup
Connect syrup lines from bundled tubing to BIB pump outlet fitting
Figure 9.
High Pressure Cylinder CO2
1. Connect primary regulator manifold to high pressure cylinder CO2 source and connect tubing to the sec-
ondary regulator mounted on the side of BIB rack.
2. Connect one CO
2 line from the bundled tubing to the primary regulator manifold on CO2 source to supply
each dispenser.
