Cornelius CB2323 - Manifold Parts Breakdown

IntelliCarb Drop-In Ice Cooled Installation Guide
© 2003-2017, Cornelius Inc. - 29 - Publication Number: 630460204INS
CB1522, CB2323, CB3023 MANIFOLD PARTS BREAKDOWN

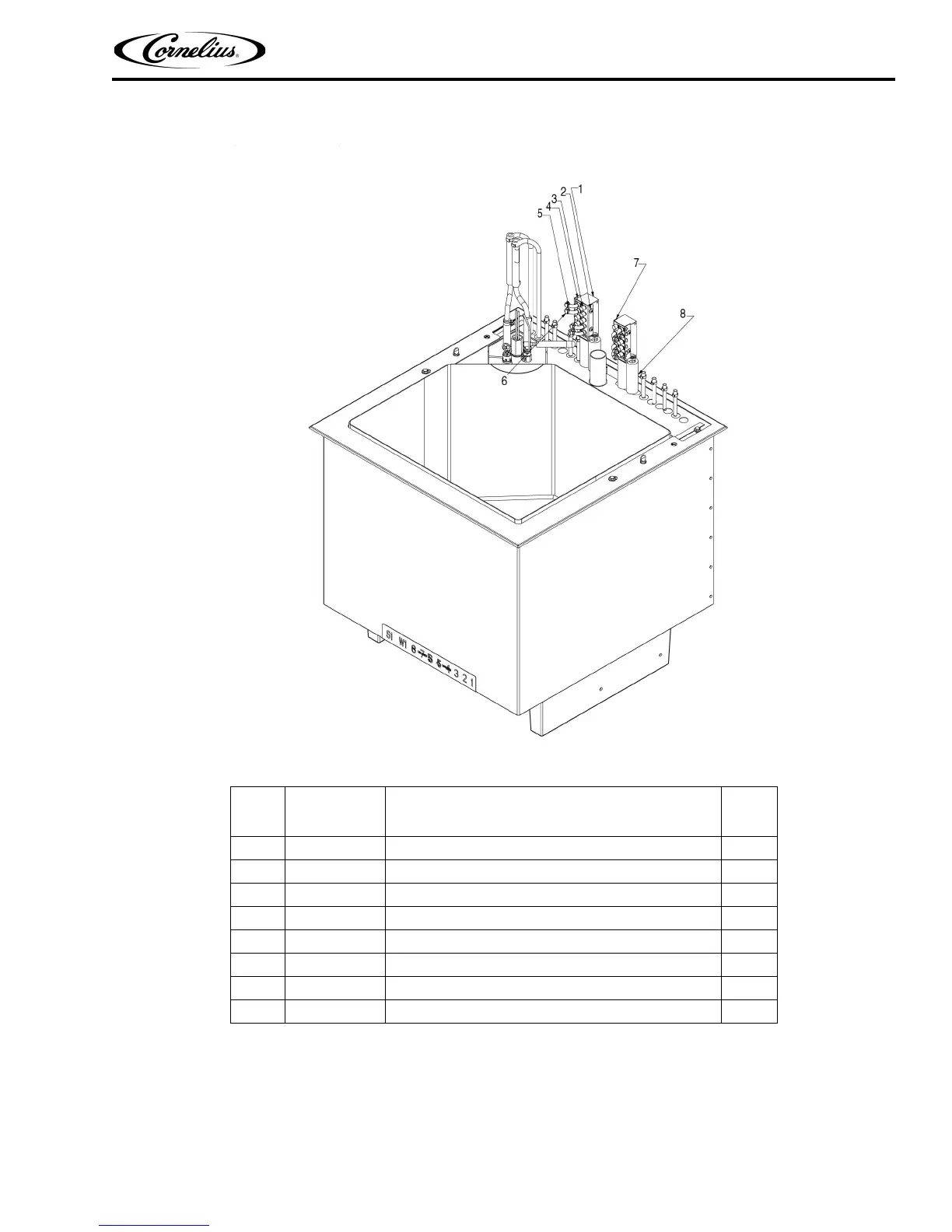

Figure 22.
Item
No.
Part No. Name Qty.
1 620407728 Manifold Flex 5 POS 2
2 164126000 Screw SM 08 TA TRPH 16 SS 10
3 620519005 Plug Manifold 12
4 630201533 Brkt Manifold Block 2
5 77051500 Fitg-Val Dole Elb 102 Degree 8
6 309854000 Clamp Oetr 413 Open Stpls #10.5 8
7 630201532 Brkt Retainer Manifold 2
8 630600024 Hose .375 B 5.00” C-PLT to Manifold Block 4
