Cornelius SPIRE 4.2 - Final Connections and Cable Bundling

Manual Installation Conversion Kit 4.1 To 4.2
©2019, Cornelius Inc. - 13 - Publication Number: 629097805INS
d) Add ferrite supplied in kit to upper half of new ADA cable (3) times thru ferrite at approx. 3” from the cable end. Close
ferrite and be sure a ‘snap’ is heard to confirm closure.
e) Old ADA cable can be left as in the unused state. Tape both ends of cable with electrical tape to prevent future use.
30. Make all the following final connections to the display.
• Power plug.(from terminal block on Lx3 mounting plate)
• USB cable from MFV.
• USB cable from unit.
• (2) Antenna cables
• ADA USB cable.
Make sure all cables are neatly bundled and wired tied together so that there is no interference with panels or door opening /
closure.

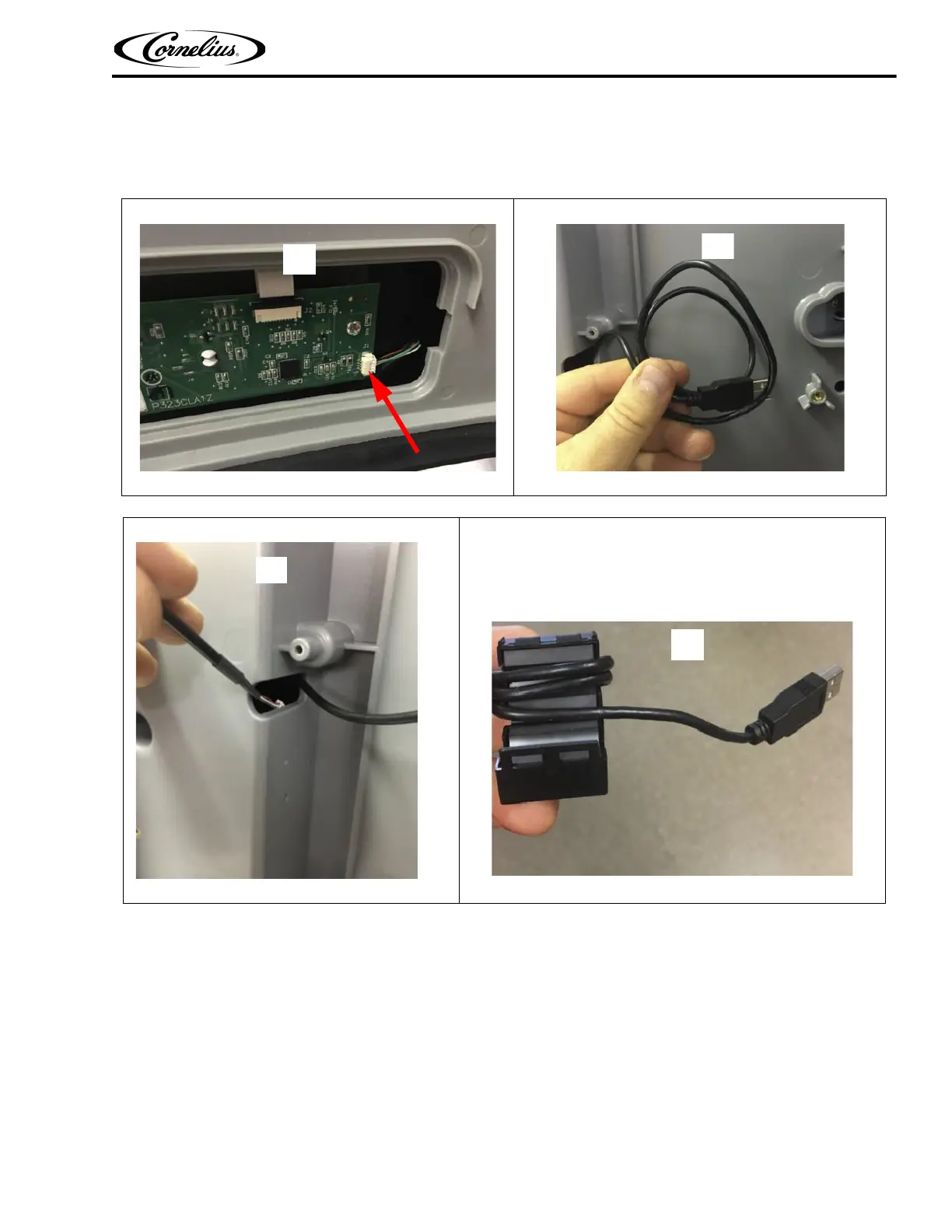

Figure 21 Figure 22
Figure 23 Figure 24
a
b
c
d
