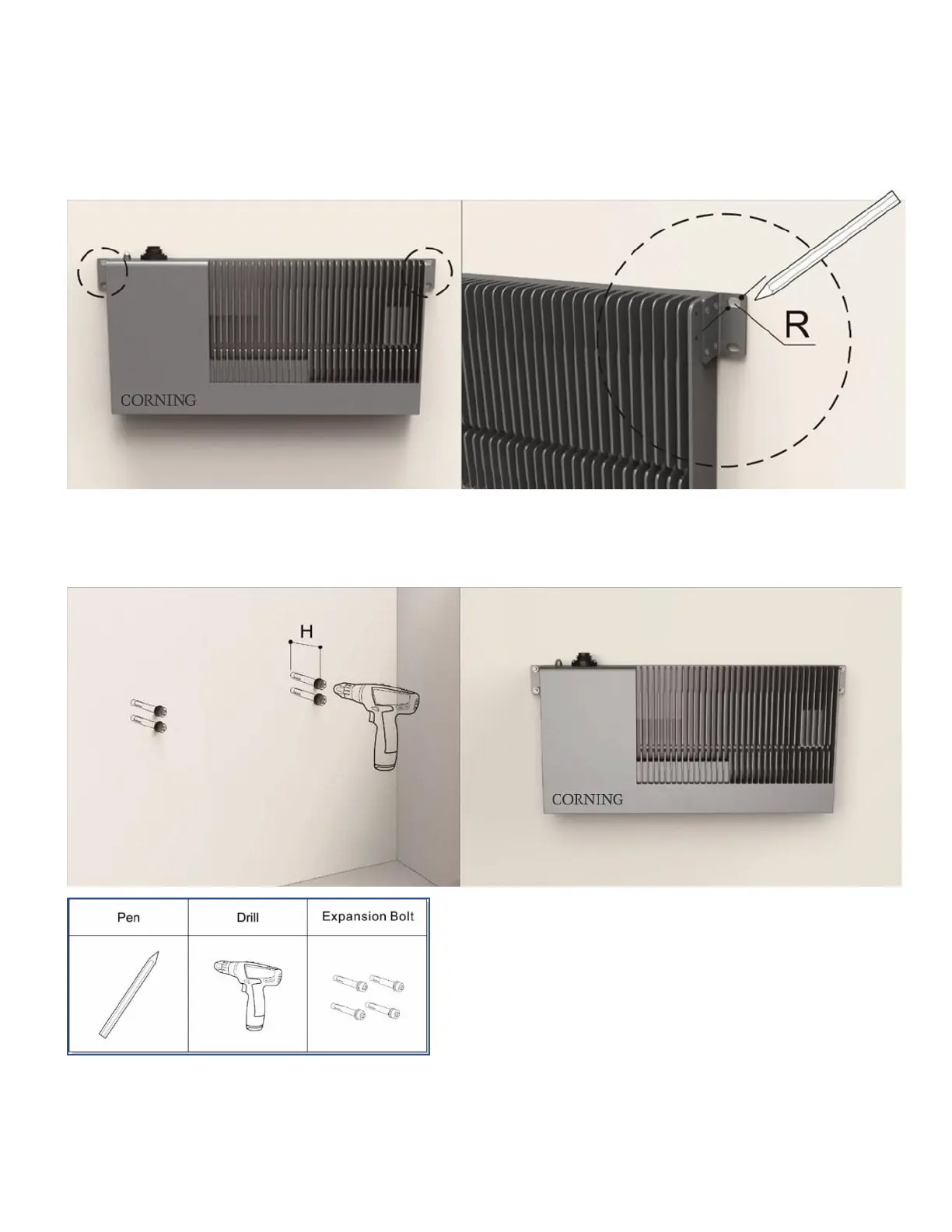

2. Mark 4 x ∅6.8 mm drilling holes sites for the hanger to be attached to the wall.
3. Drill 4 holes at the marked sites using percussion drill and embed 4×∅10 plastic expansion pipes. Note: H = 70 mm.
Fasten the case with 4×M6 expansion bolt.
