CORNING Everon 6200 - RU Optical Port Description

Corning Optical Communications
Installation Manual
|
CMA-793-AEN
|
Page 50
RU Optical Port Description
Obtain the required lengths of optical fibers for all the optical connections and connect the fibers on the front panel of
Remote Unit (RU). The interface type of SFP transceivers is an LC connector. It is important to label all ports on the fiber
distribution panel correctly. It is recommended to include additional length/slack in the optical fiber to allow future
reconfigurations without requiring additional splices.

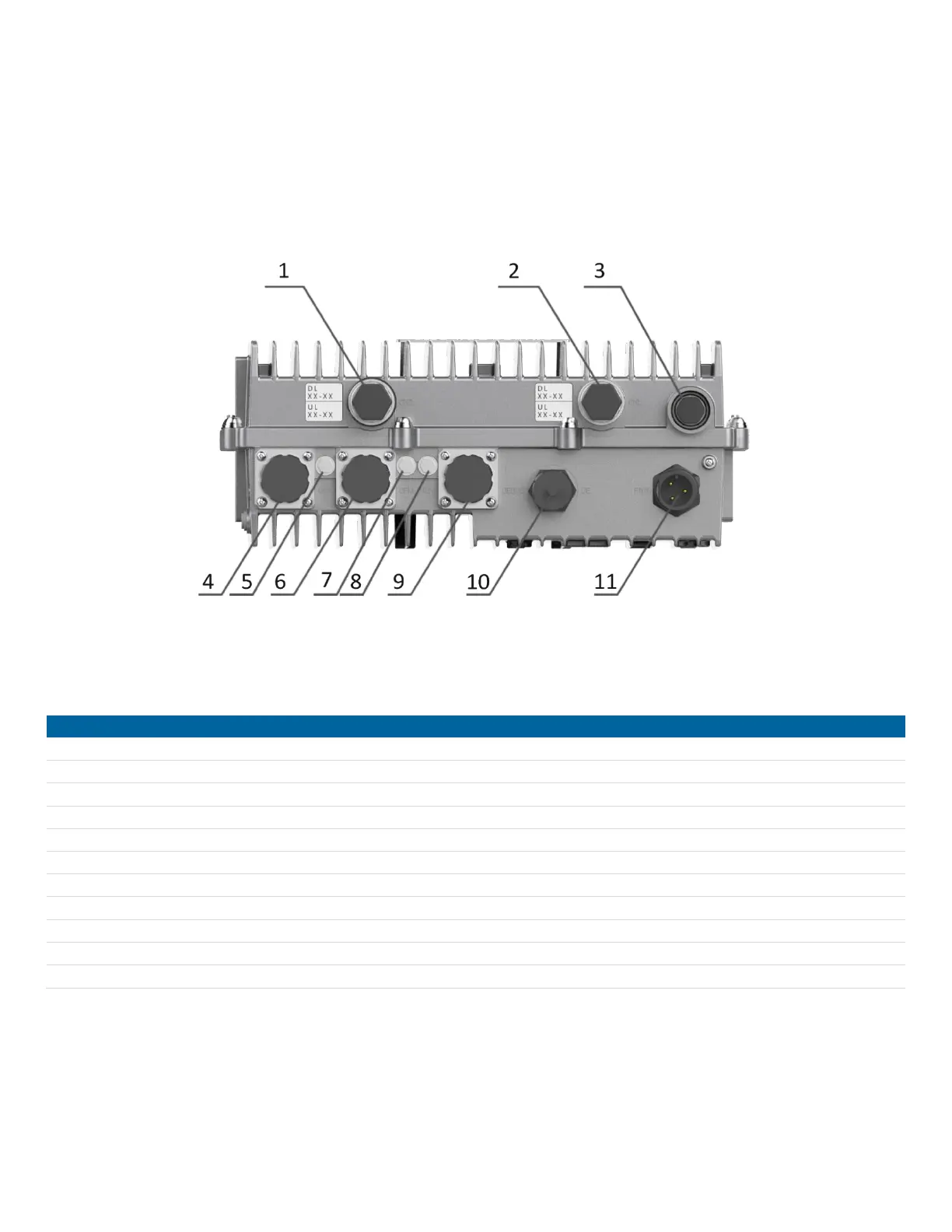

RU Front Panel Interfaces
SN
Interface Name
Description
1
CH2
PA 2 Module Interface, 4.3-10 female connector
2
CH1
PA 1 Module Interface, 4.3-10 female connector
3
Air Pressure hole
Make the pressure balance
4
Slave OP
Connection for EU or RU at the next higher level
5
Slave
Indicates Slave OP port operating status
6
MASTER OP
Connection for RU at the next lower level
7
Master
Indicates Master OP port operating status
8
RUN
Indicates device operating status
9
DEBUG
Connection for local PC through CAT-5 for local monitoring
10
GE
Wi-Fi signal output port
11
PWR
Electrical Power Line Interface
