CORNING Everon 6200 - H2 RU Wall Installation (Side on the Wall)

Corning Optical Communications
Installation Manual
|
CMA-793-AEN
|
Page 39
Wall Installation (Side on the Wall)

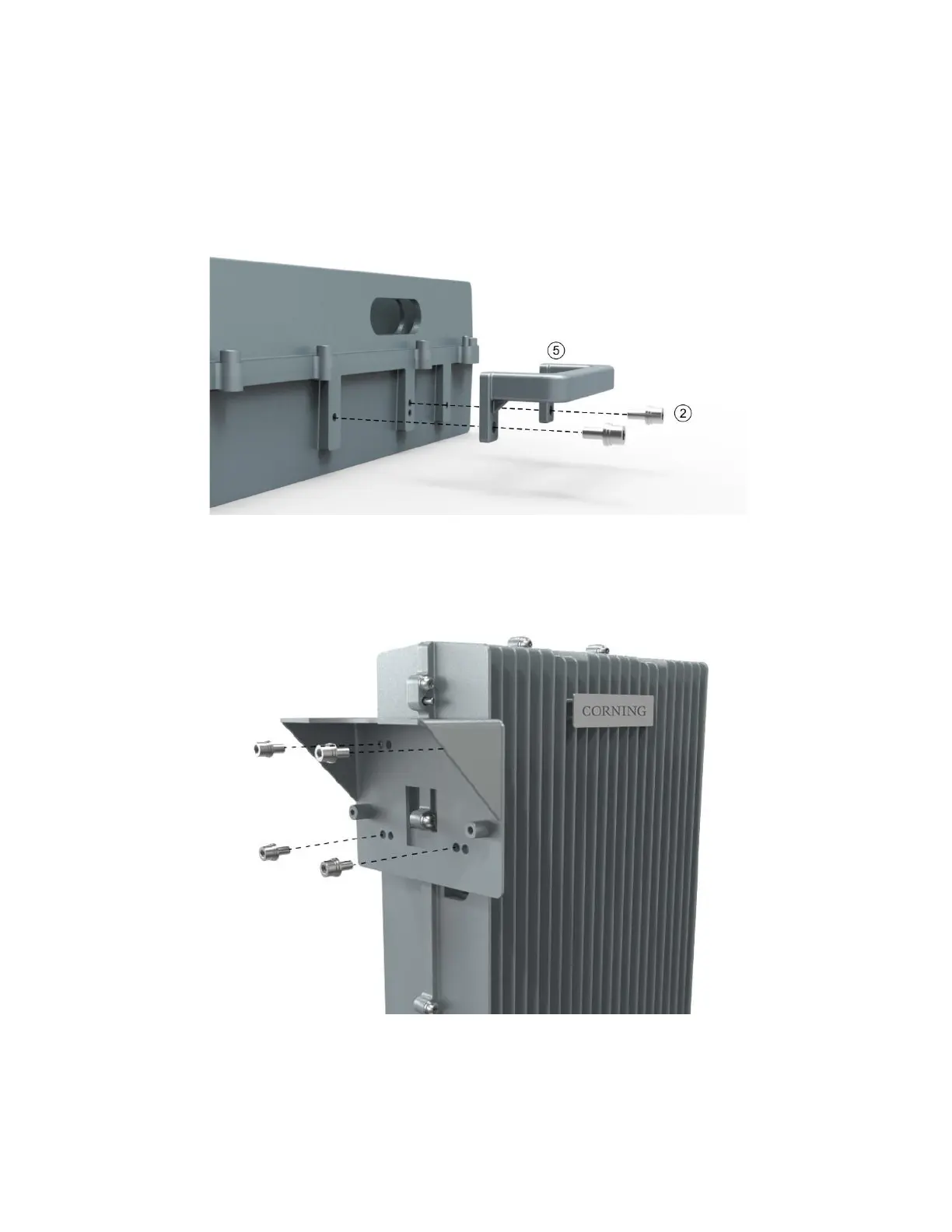

1. Attach and fasten the handle to the side of H2RU with screws M6×14 using T5 Wrench.
2. Attach and fasten the Bracket I to the left side of H2RU with screws M6×14 using T5 Wrench.
