CORNING Everon 6200 - H2 RU Pole Installation

Corning Optical Communications
Installation Manual
|
CMA-793-AEN
|
Page 44
Extra accessories are required for pole installation and purchased separately.
Note: The diameter of Pole shall not be over 110 mm or less than 55 mm.

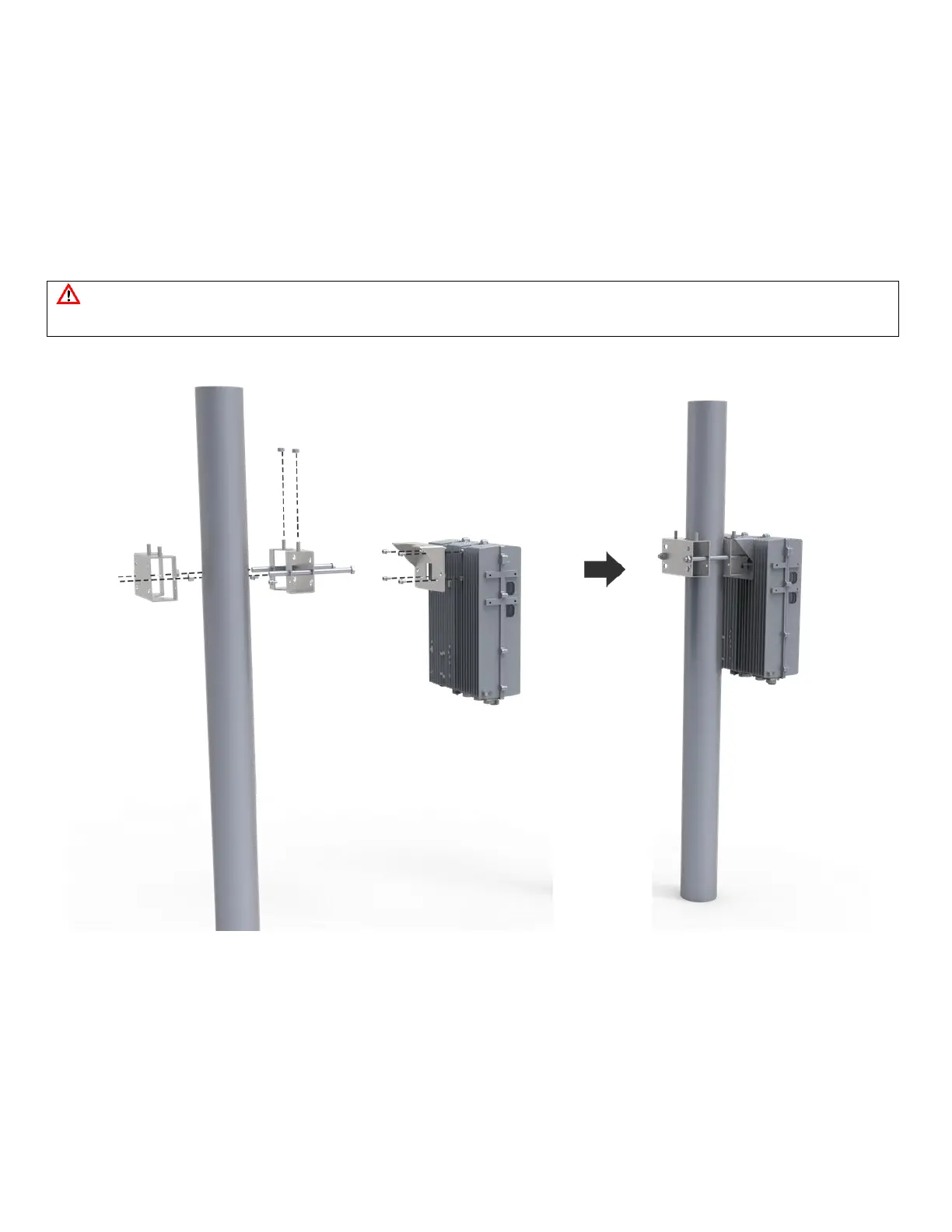

Pole Installation
1. Install the handle and Bracket I to the back of H2RU.
2. Install the Bracket II and Bracket III to the pole.
3. Hang the H2RU on the mounting bracket and fasten with nuts M10.
4. Connect the ground cable and power cable.
