AU Optical Port Description
Obtain the required lengths of optical fibers for all the optical connections and connect the fibers on the front panel of the
Access Unit (AU). The interface type of SFP transceivers is an LC connector. It is important to label all ports on the fiber
distribution panel correctly. It is recommended to include additional length/slack in the optical fiber to allow future
reconfigurations without requiring additional splices.

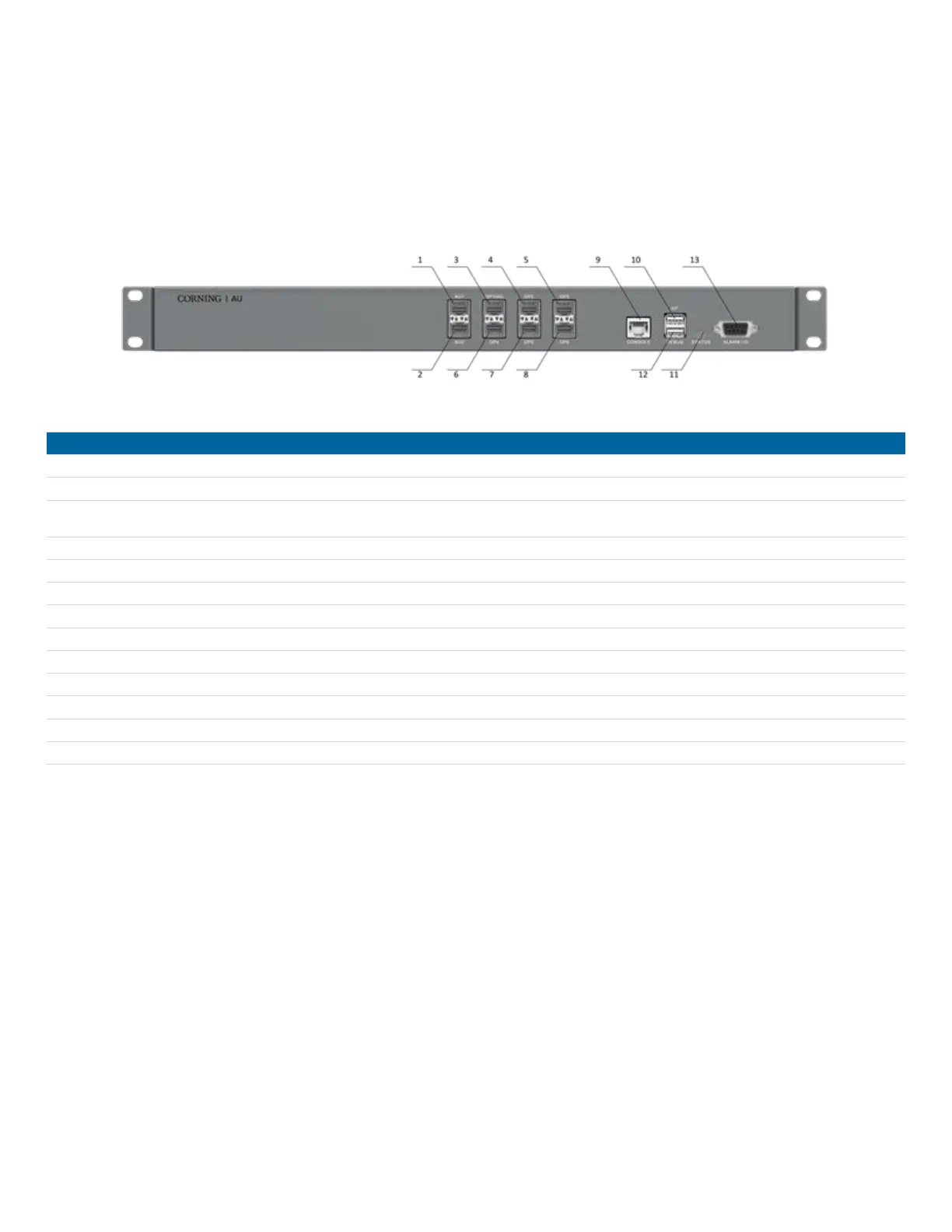

AU Front Panel Interfaces
SN
Interface Name
Description
1
AU1
Connects Slave AU1
2
AU2
Connects Slave AU2
3
OP1/AU
For Master AU: connects EU/RU
For Slave AU: connects Master AU
4
OP2
Connects EU/RU
5
OP3
Connects EU/RU
6
OP4
Connects EU/RU
7
OP5
Connects EU/RU
8
OP6
Connects EU/RU
9
CONSOLE
Connects OMC or local PC through CAT-5 for local and remote monitoring
10
AP
Connects WLAN network adapters for monitoring device through Wi-Fi
11
STATUS
Indicates device operating status
12
DEBUG
Connects local debugging PC through a USB connection
13
ALARM I/O
Connects external environment alarm interface for environment monitoring
