CORNING Everon 6200 - Page 37

Corning Optical Communications
Installation Manual
|
CMA-793-AEN
|
Page 36

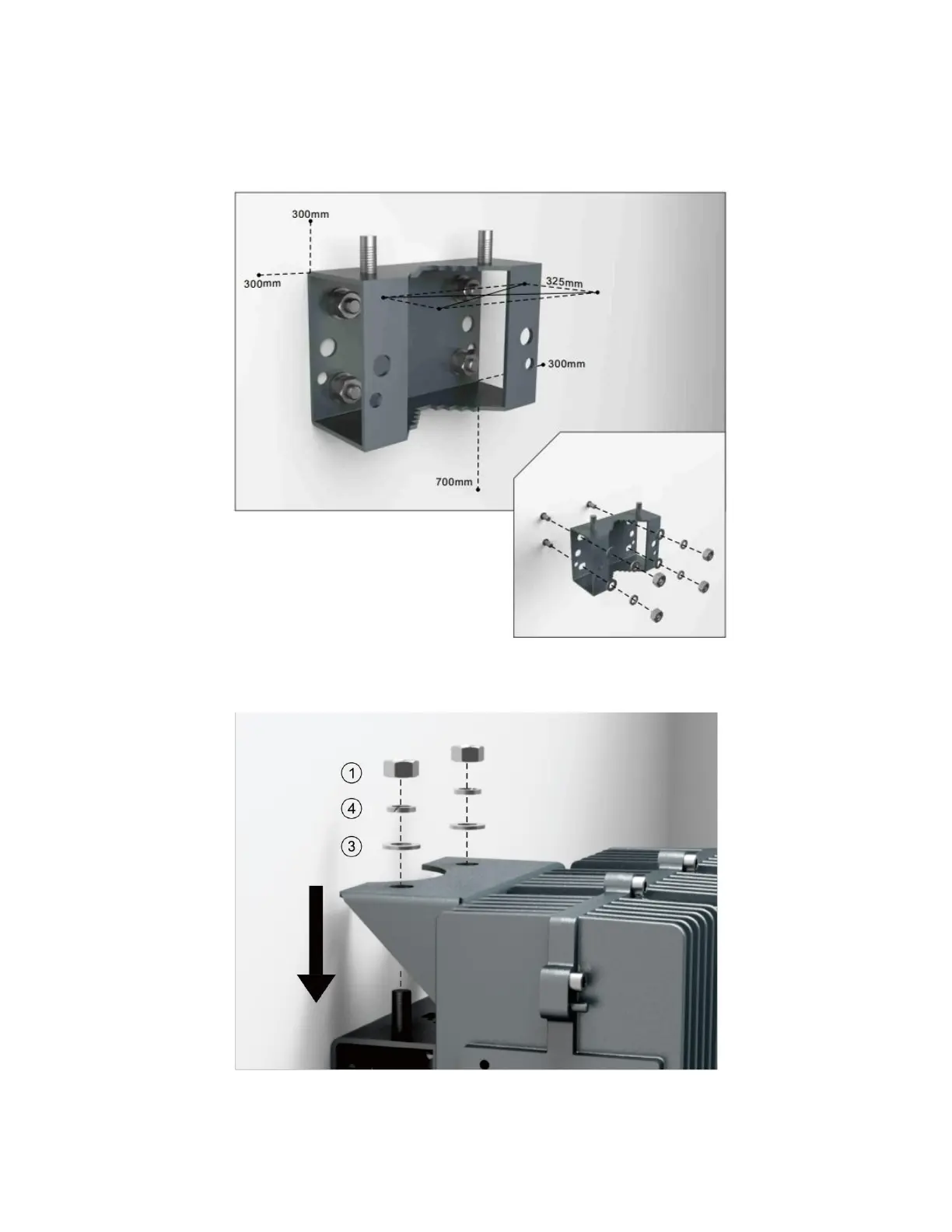

5. Attach the dowels, expansion screws or the like and fasten the Bracket II to the wall.
Tips: Use Bracket II as a reference to control each devices’ separation distance before hanging and locking H2RU up.
6. Hang the H2RU on the mounting Bracket II and fasten with nuts M10.
