PEAK HOLD MODE
Storing Peak Hold Values:
Viewing Peak Hold Values:

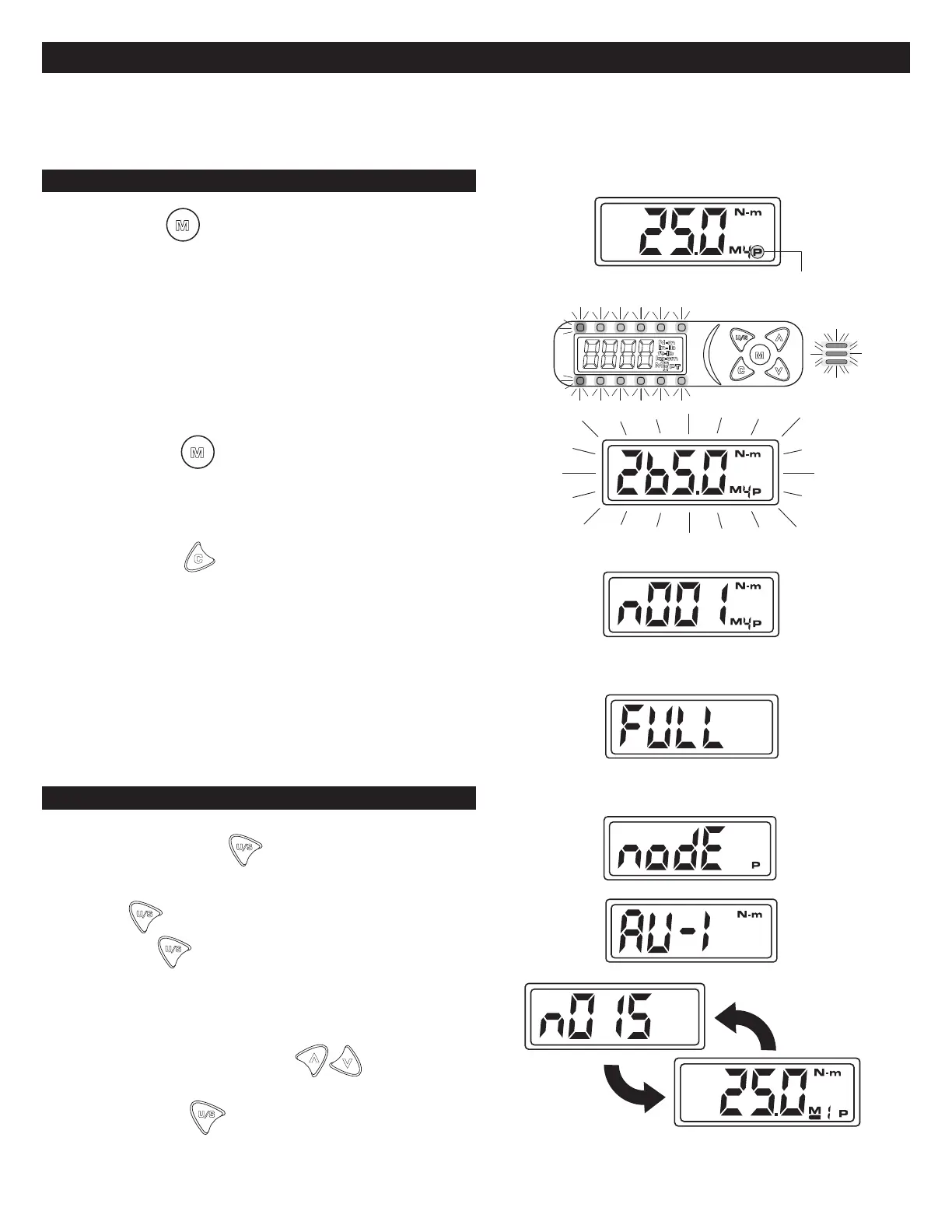

Peak Hold Mode: This mode allows the operator to view and store individual torque values. Up to 50 values can
be stored. NOTE: The peak hold mode can only be used with a torque value previously stored
in one of the 9 Pre-Set memory locations.
1. Using the button, navigate to the desired
preset value.
(e.g. M3, M4, M5 . . . etc.)
2. Apply load to the handle until the red light
illuminates and the alarm tone sounds, then release
the load.
3. The highest torque value reached during the
application shows and flashes in the display.
4. Pressing the button stores the torque value.
Note: Each time a value is stored, the location
number increases sequentially:
n001, n002, n003 . . . etc.
5. Pressing the button while the torque value is
flashing allows the operator to bypass this value and
not store it.
6. Repeat steps 1 through 4 until the desired number of
torque values have been stored.
NOTE: A maximum of 50 values can be stored in memory.
The word "FULL" appears in the display when an
attempt is made to store more than the allotted
maximum.
1. Press and hold the button for 2-3 seconds.
"nodE" appears in the display.
2. Press button again "AU-1" appears in display.
3. Press the button again and the display will
alternate between the last stored value and the
location to which it was assigned.
4. To display a different torque value stored in the
Peak Hold memory, use the buttons to
navigate to the desired location.
5. To exit, press button four (4) times
Be sure the wrench is in Peak Hold Mode (P).
