INSTALL CLAMPING BRACKETS
Wooden Countertops
Make sure any cut surfaces on the wooden countertop are sealed with a
special varnish, silicone rubber, or resin to prevent the wood from swelling as
a result of moisture. The sealant must be temperature-resistant. Ensure that
the sealant does not get on the top surface of the countertop.

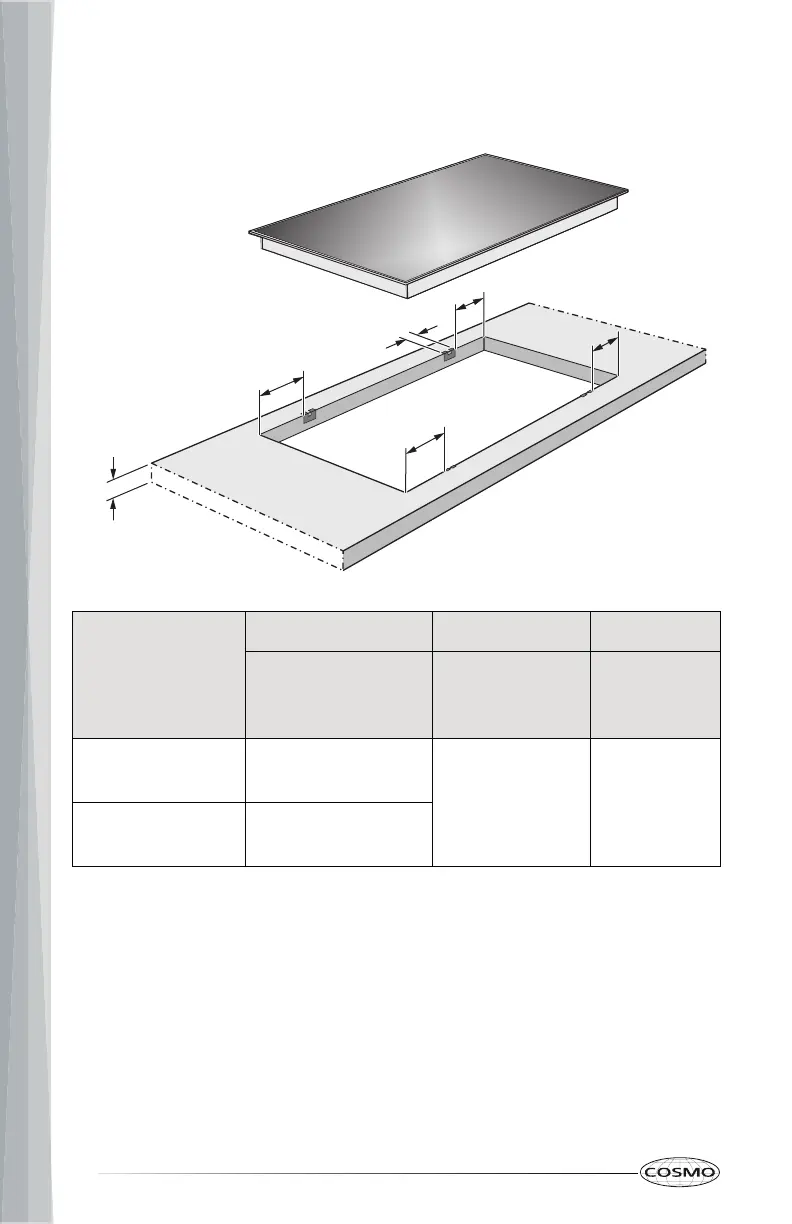

1. Position the clamping brackets on the top front and rear edges of the
cutout as shown in the illustration above.
F
F
F
F
G
H
Model
F G H
Suggested Bracket
Assembling
Distance
Countertop
Surface
Thickness
Bracket
Width
COS-304TBECC
(30") (125 mm)
2"
(50 mm) (30 – 40 mm)
COS-365TBECC
(36")
(155 mm)
4 ¹⁵⁄₁₆"
6 ¹⁄₈"
1 ³⁄₁₆" – 1 ⁹⁄₁₆"
