Parts location diagrams
6-2
Coway co., Ltd

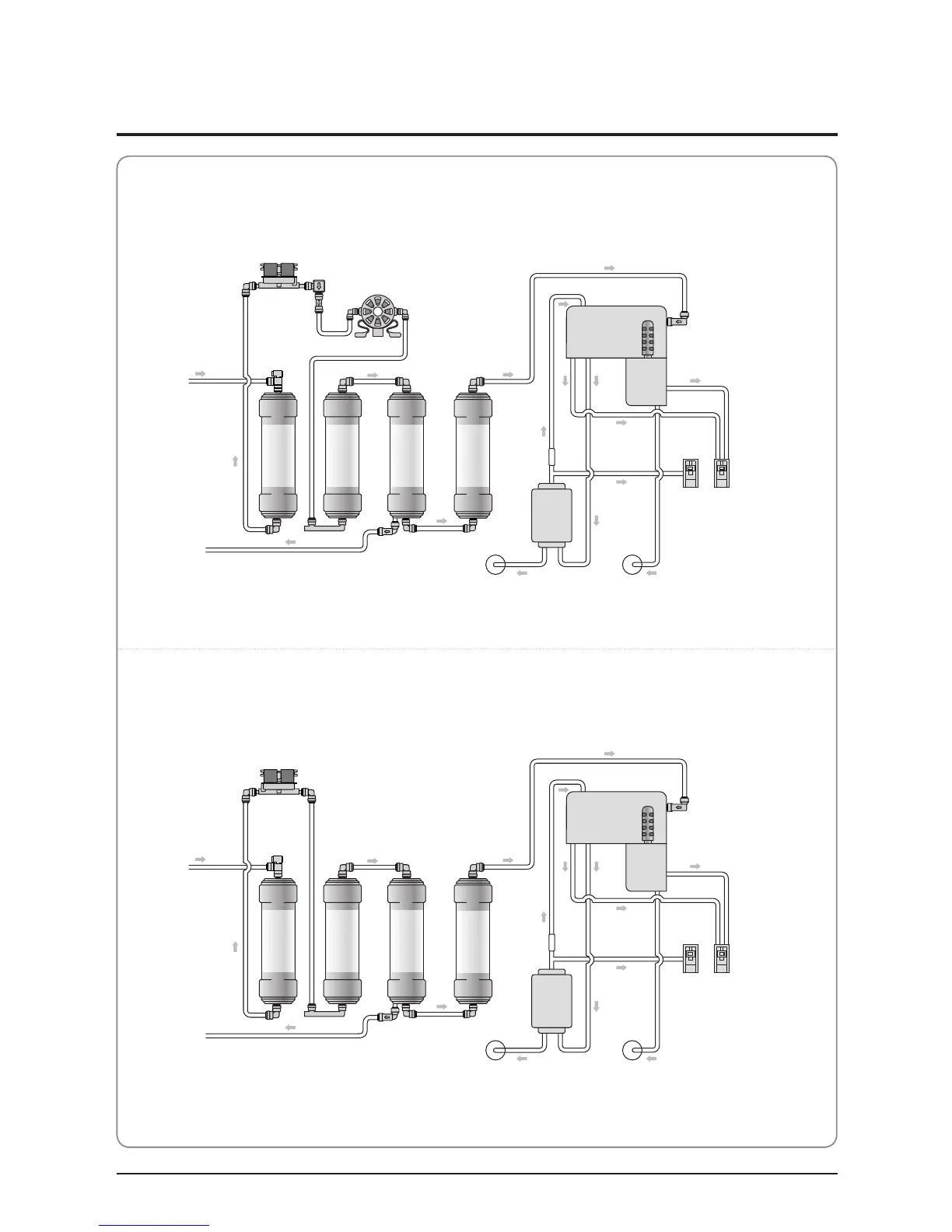

6-2 Water piping diagram
CHP-671R
Hand Valve
Feed Water
Reject Water
Reject Water
supply Valve
Check Valve
Over Heating
Storage
tank
Heating
tank
Cooling
tank
Hot Water
Drain
Cool/Room
Drain
Cool/Room
Water
Hot
Water
Antibacterial
Filter
Pre-Carbon
Plus-Sediment
Membrane Filter(RO)
Plus Inno-sense Filter
Booster
Pump
Check
Valve
LPS
Feed-NOS Valve
FEED-NOS
Valve
Hand Valve
Feed Water
Reject Water
Reject Water
supply Valve
Check Valve
Over Heating
Storage
tank
Heating
tank
Cooling
tank
Hot Water
Drain
Cool/Room
Drain
Cool/Room
Water
Hot
Water
Antibacterial
Filter
Pre-Carbon
Plus-Sediment
Membrane Filter(RO)
Plus Inno-sense Filter
CHP-671L
Hand Valve
Feed Water
Reject Water
Reject Water
supply Valve
Check Valve
Over Heating
Storage
tank
Heating
tank
Cooling
tank
Hot Water
Drain
Cool/Room
Drain
Cool/Room
Water
Hot
Water
Antibacterial
Filter
Pre-Carbon
Plus-Sediment
Membrane Filter(RO)
Plus Inno-sense Filter
Booster
Pump
Check
Valve
LPS
Feed-NOS Valve
FEED-NOS
Valve
Hand Valve
Feed Water
Reject Water
Reject Water
supply Valve
Check Valve
Over Heating
Storage
tank
Heating
tank
Cooling
tank
Hot Water
Drain
Cool/Room
Drain
Cool/Room
Water
Hot
Water
Antibacterial
Filter
Pre-Carbon
Plus-Sediment
Membrane Filter(RO)
Plus Inno-sense Filter
