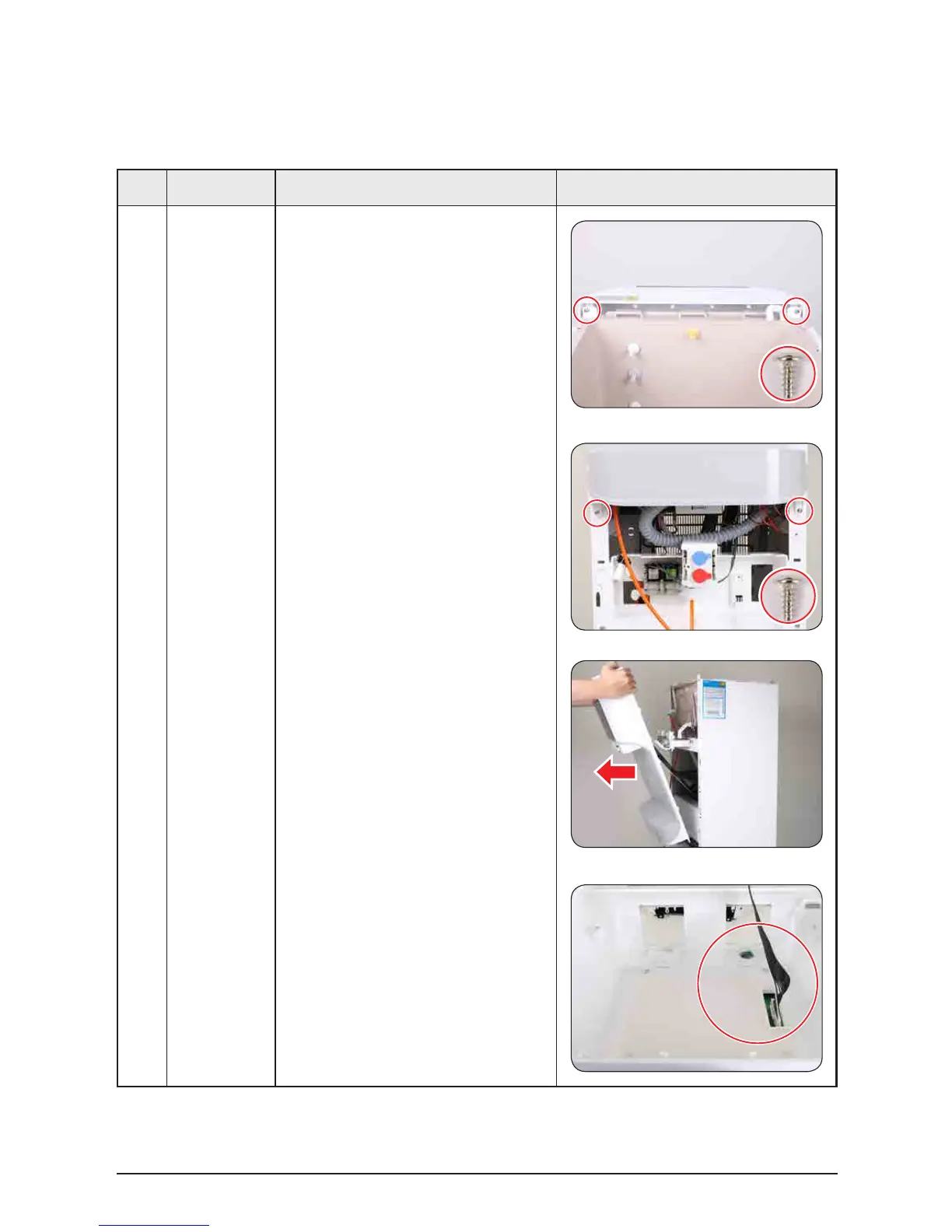

3-1-4 Cover-front upper ASSY separation
No. Part name Description Reference picture
1 Cover-front
upper ASSY
1) Remove the 4 screws from the
cover-front upper ASSY.
: 4-THT 4X10
2) Remove the cover-front upper
ASSY in the direction of the arrow.
Change the deco-multifaucet
ASSY to the cold water location
and then remove. Assemble the
cover-front ASSY.
Do not detach the deco-multifaucet
ASSY.
3) Remove connectors connected to
the cover-front upper ASSY.
To Next Page
