Coway CHP-671R/L User Manual

Parts location diagrams
Coway co., Ltd
6-7

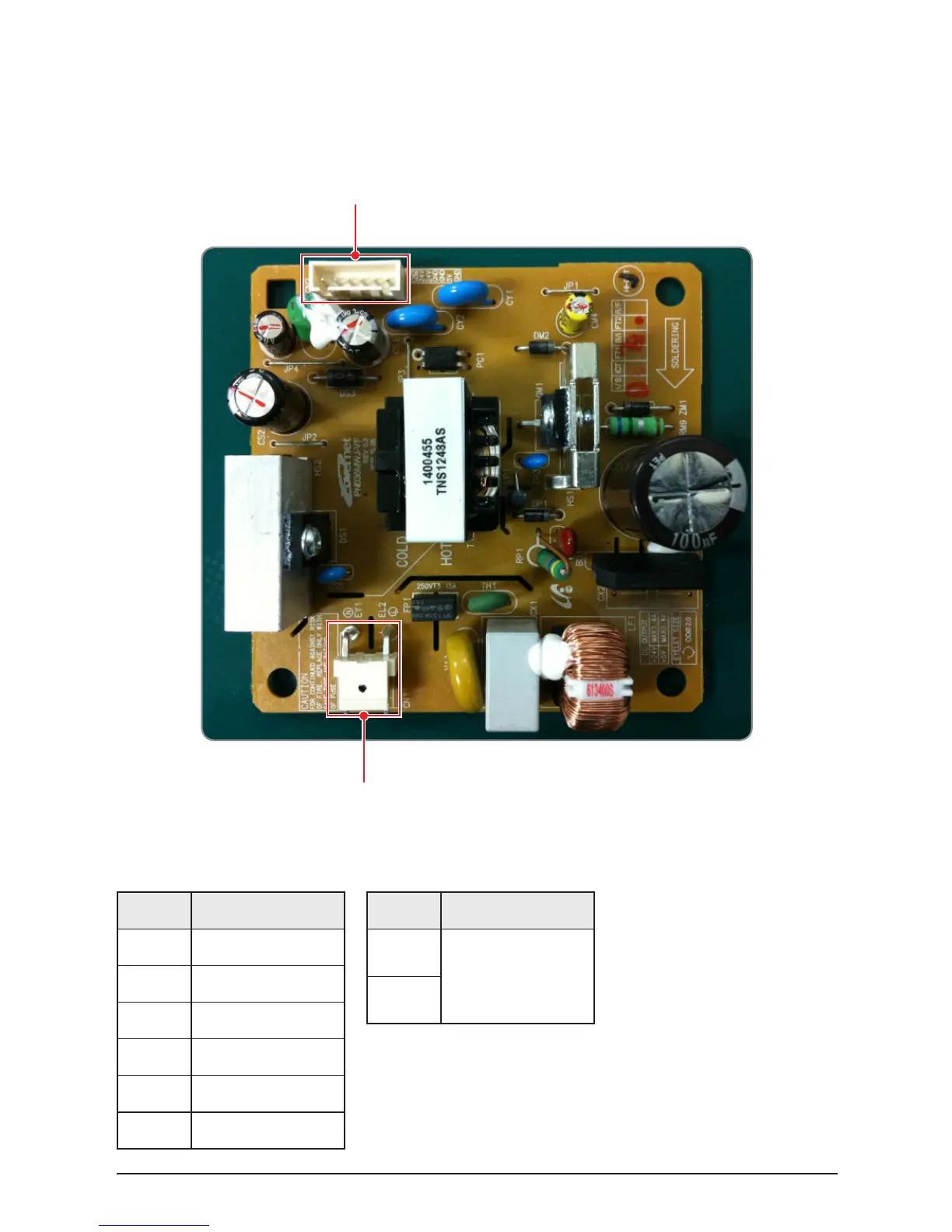

6-3-3 SMPS PBA
1 CN2
OUT PUT - MAIN PBA
Pin No. Signal
1 GS
2 + 5 V
3 GS
4 GS
5 + 24 V
6 + 24 V
2 CN1
AC IN
Pin No. Signal
1
Voltage rating that
matches it on the
rating plate.
2
1
2
