Parts location diagrams
6-6
Coway co., Ltd

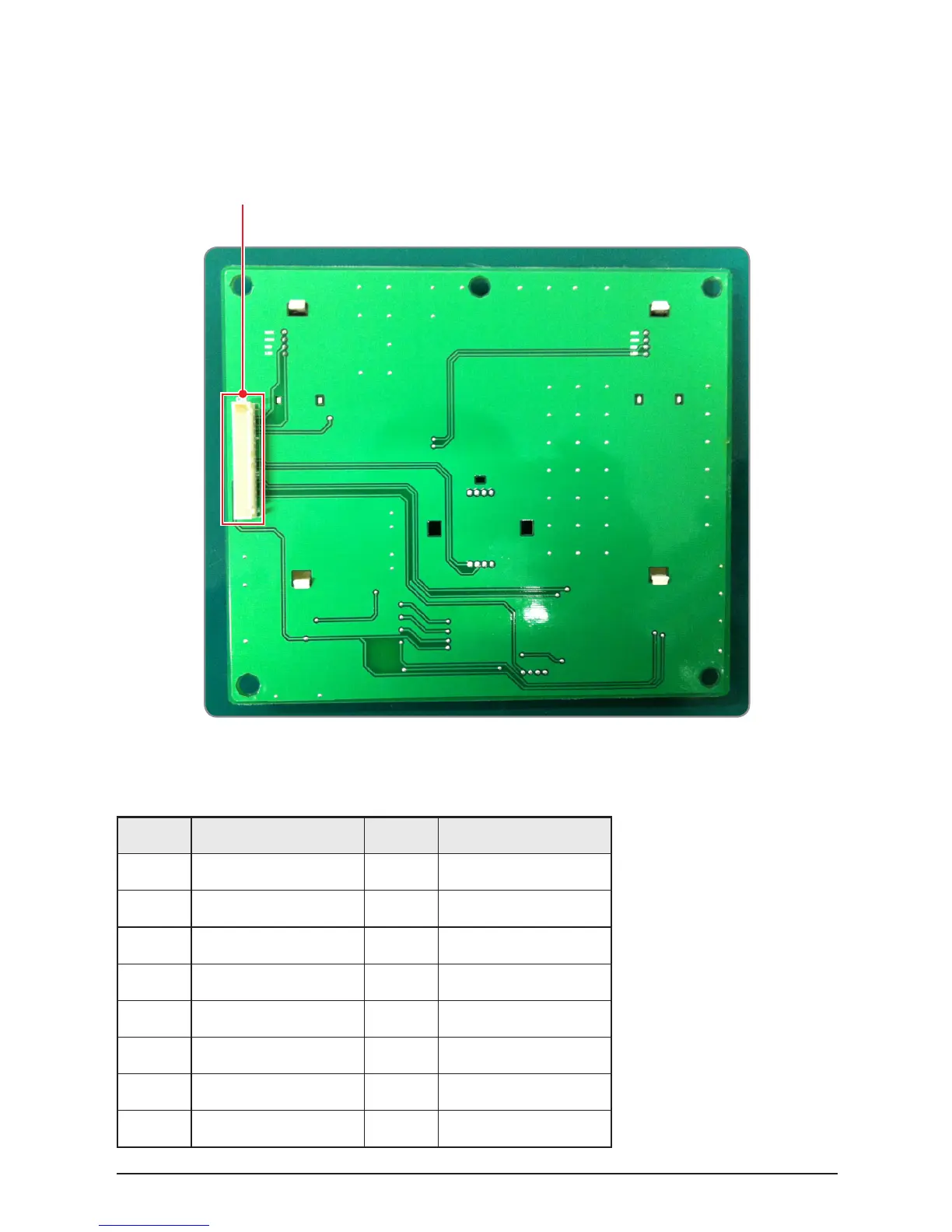

6-3-2 FRONT PBA
1 CN1
DISPLAY
Pin No. Signal Pin No. Signal
1 SIGNAL 9 SIGNAL1 (SINK)
2 GS 10 SIGNAL2 (SINK)
3 SIGNAL1 (SOURCE) 11 SIGNAL3 (SINK)
4 SIGNAL2 (SOURCE) 12 SIGNAL4 (SINK)
5 SIGNAL3 (SOURCE) 13 + 5 V
6 SIGNAL4 (SOURCE) 14 GS
7 SIGNAL5 (SOURCE) 15 -
8 SIGNAL6 (SOURCE)
1
