Coway CHP-671R/L - PBA ASSY Separation

Disassembling and refitting
3-8
Coway co., Ltd
3-1-5 PBA ASSY separation

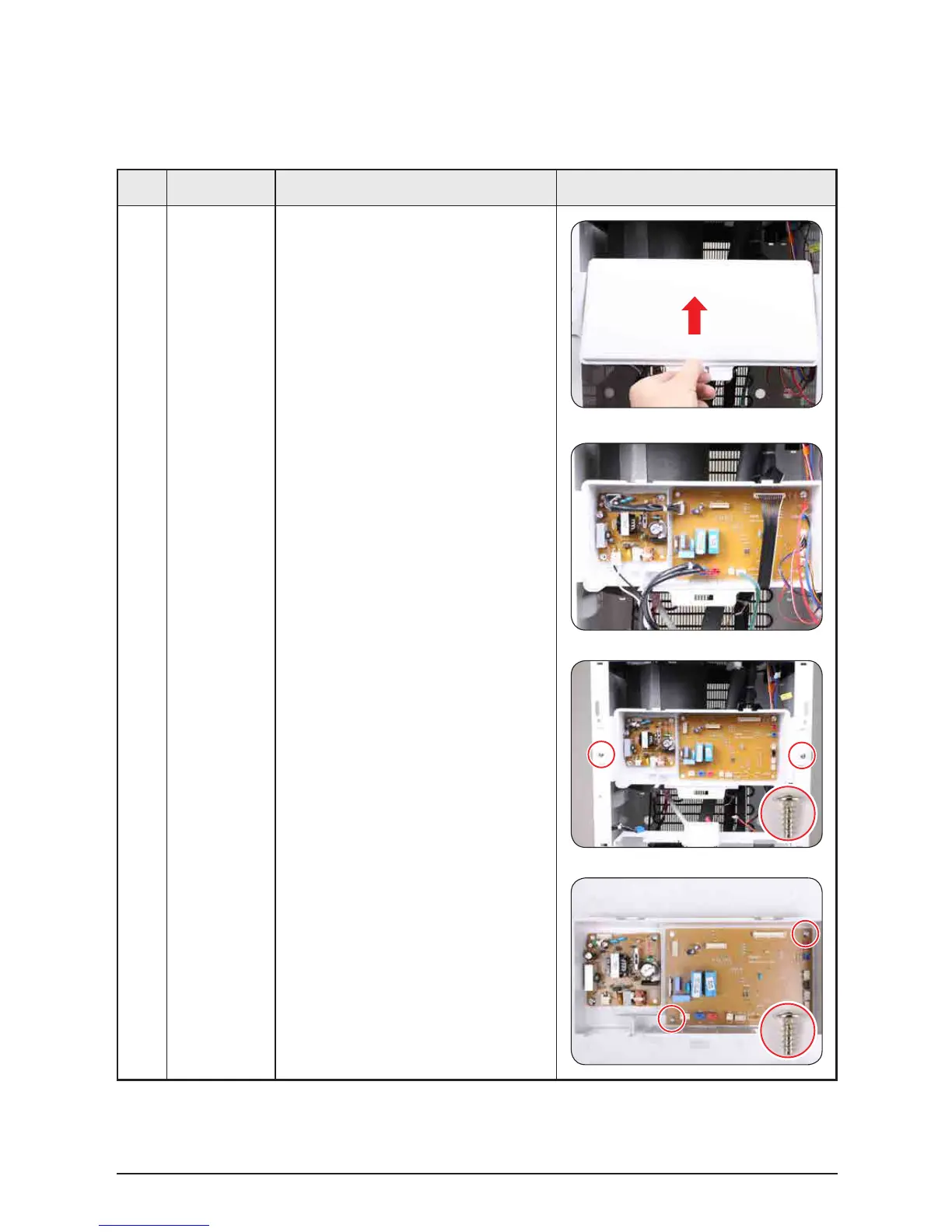

No. Part name Description Reference picture
1 PBA ASSY 1) Remove the cover-front PBA in the
direction of the arrow.
2) Remove all connectors connected
to the PBA ASSY.
3) Remove the 2 screws from the
case-PBA main ASSY.
: 2-THT 4X10
4) Remove the 2 screws from the
PBA-main.
: 2-THT 4X10
