CMP 200
® X-Ray Generator Service Manual Ch # 901476-02 Rev. C Page 2-13
2.6.5 Power Line Mains (Cont)
6. Re-install the fan cover and reconnect the fan by reversing the previous steps.
THE FAN MUST BE CONNECTED AT ALL
TIMES.
FAILURE TO CONNECT THE FAN WILL RESULT IN GENERATOR MALFUNCTION &
ERROR MESSAGES.
5. Do not switch on mains power until requested to do so in a later step.

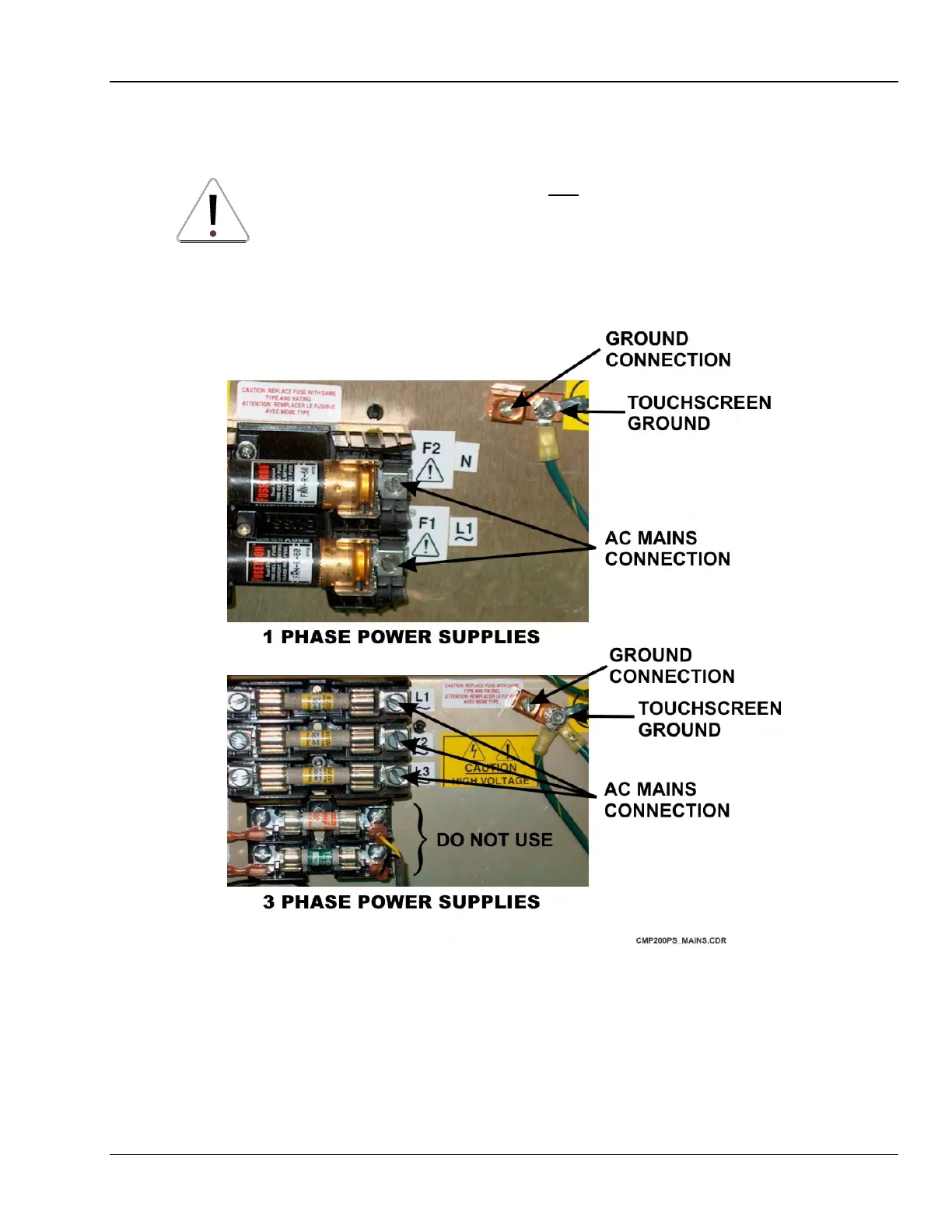

Figure 2-7: Generator mains connection
