CPI TALOS - Pulse Outputs; Credit Relay (Isolated); Credit Pulse (Non-Isolated)

Talos Operation and Service Guide
30
Pulse Outputs
Pulse Timing
• Vending
o Short = 30ms ON with 50ms between pulses (off) ± 5ms
o Long = 35ms ON with 300ms between pulses (off) ± 5ms
• Gaming
o Short = 50ms ON with 50ms between pulses (off) ± 5ms
o Long = 60ms ON with 300ms between pulses (off) ± 5ms

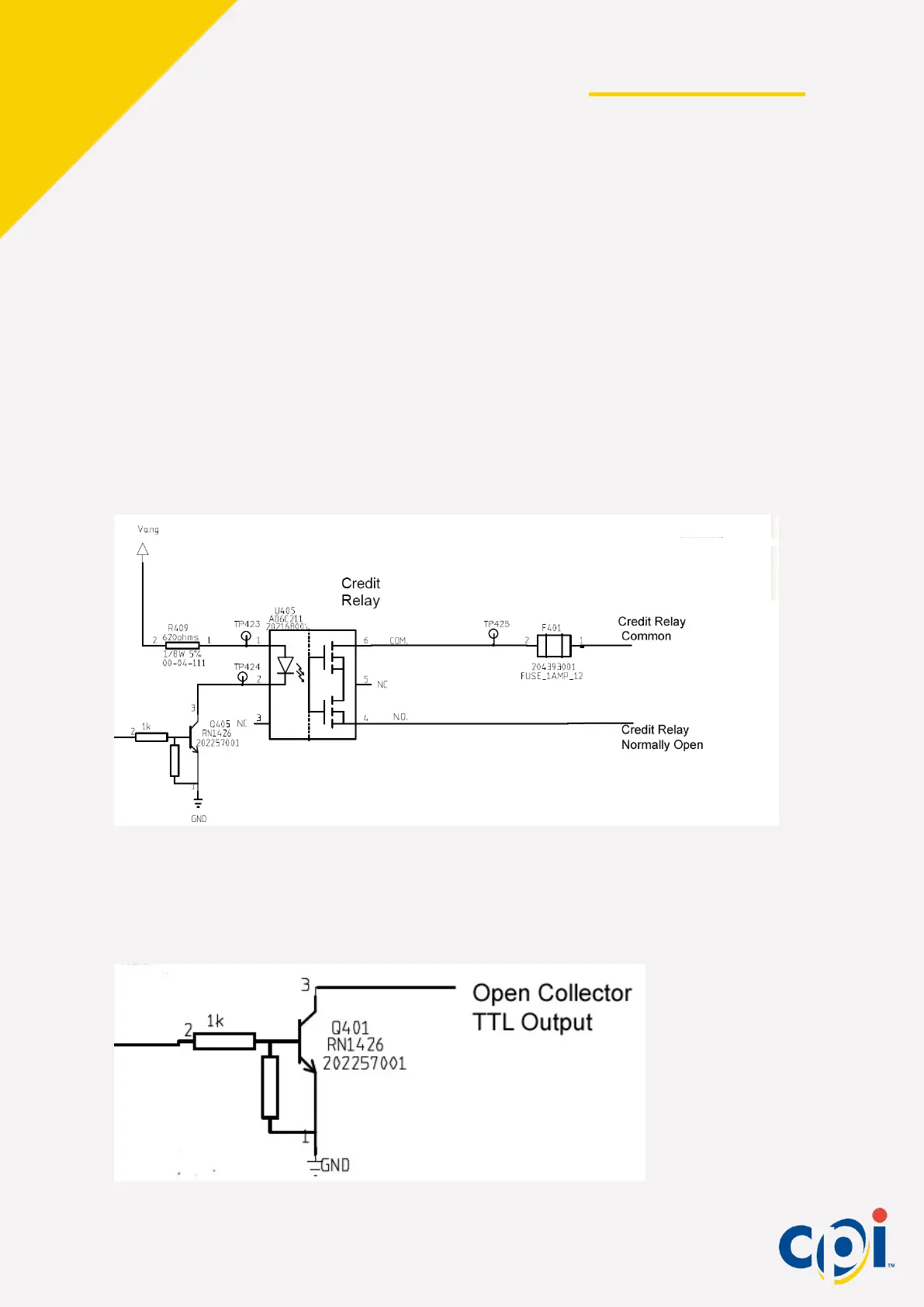

Credit Relay (Isolated)
• Voltage to “Credit Relay Normally Open” supplied by VMC
• “Credit Relay common” also supplied by VMC.
Credit Pulse (Non-Isolated)
• Open collector output must be tied to a voltage through a pull-up resister on the
Control System. The voltage is typically 5 to 12VDC.
.
