Talos Operation and Service Guide

Magazine Styles

The Talos is compatible with the following CPI bill magazines:

Capacity

Access

Part Number

200

Top door removal

250063015

300

Top door removal

250061016

500

Hinged Side-Door Removal

253115019

700

Hinged Side Door Removal

250068021

1000

Hinged Side Door Removal

250060086

If necessary, you can easily replace any magazine with another method of bill removal.

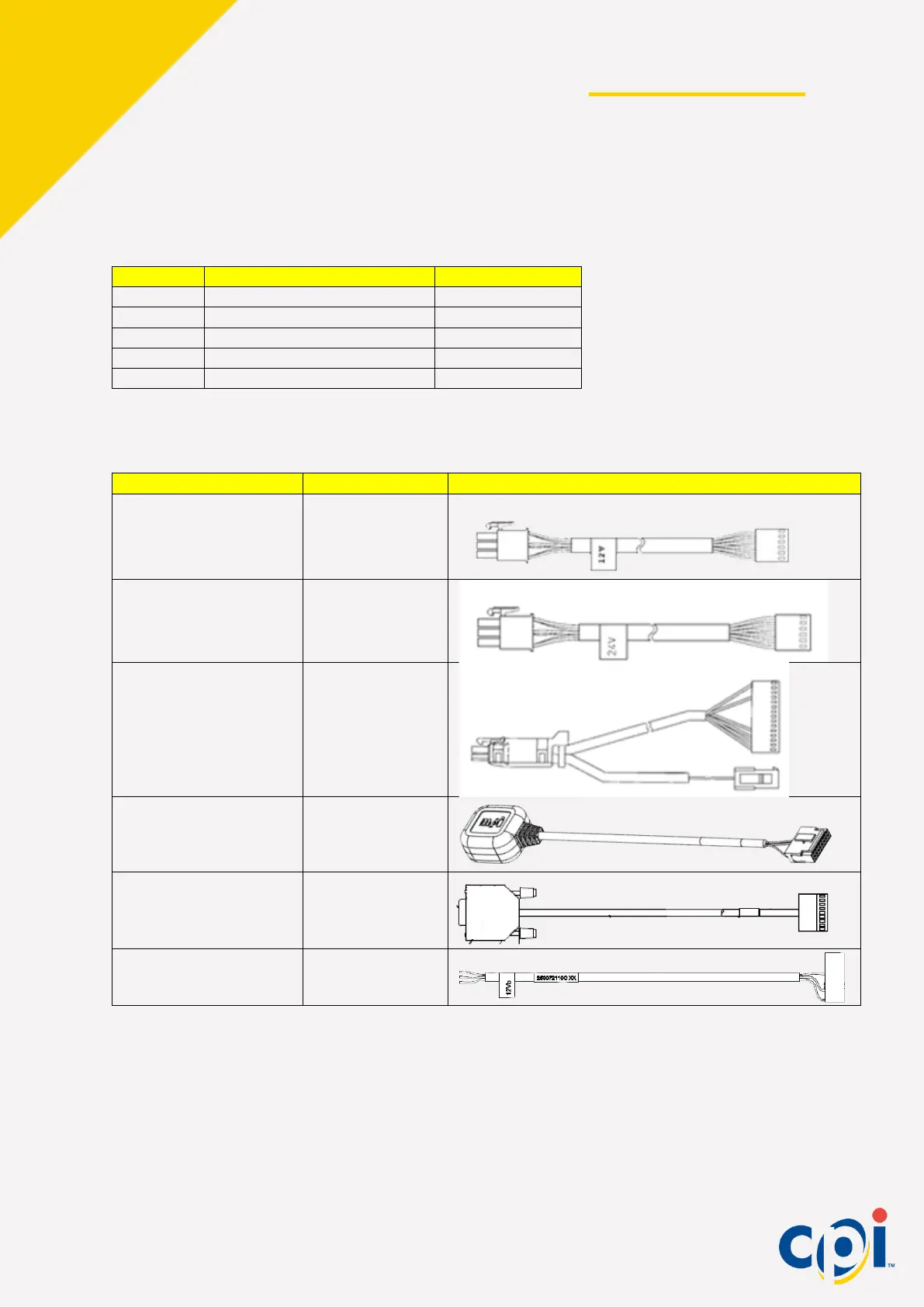

Cables

Cable

Part Number


110VAC Power Cable 250077006

24VAC Power Cable 250075007

MDB Cable 250071043

USB EBDS Cable 250079066P1

Standard EBDS Cable 250079049P

12V Battery Cable 250072110P
