Talos Operation and Service Guide

35

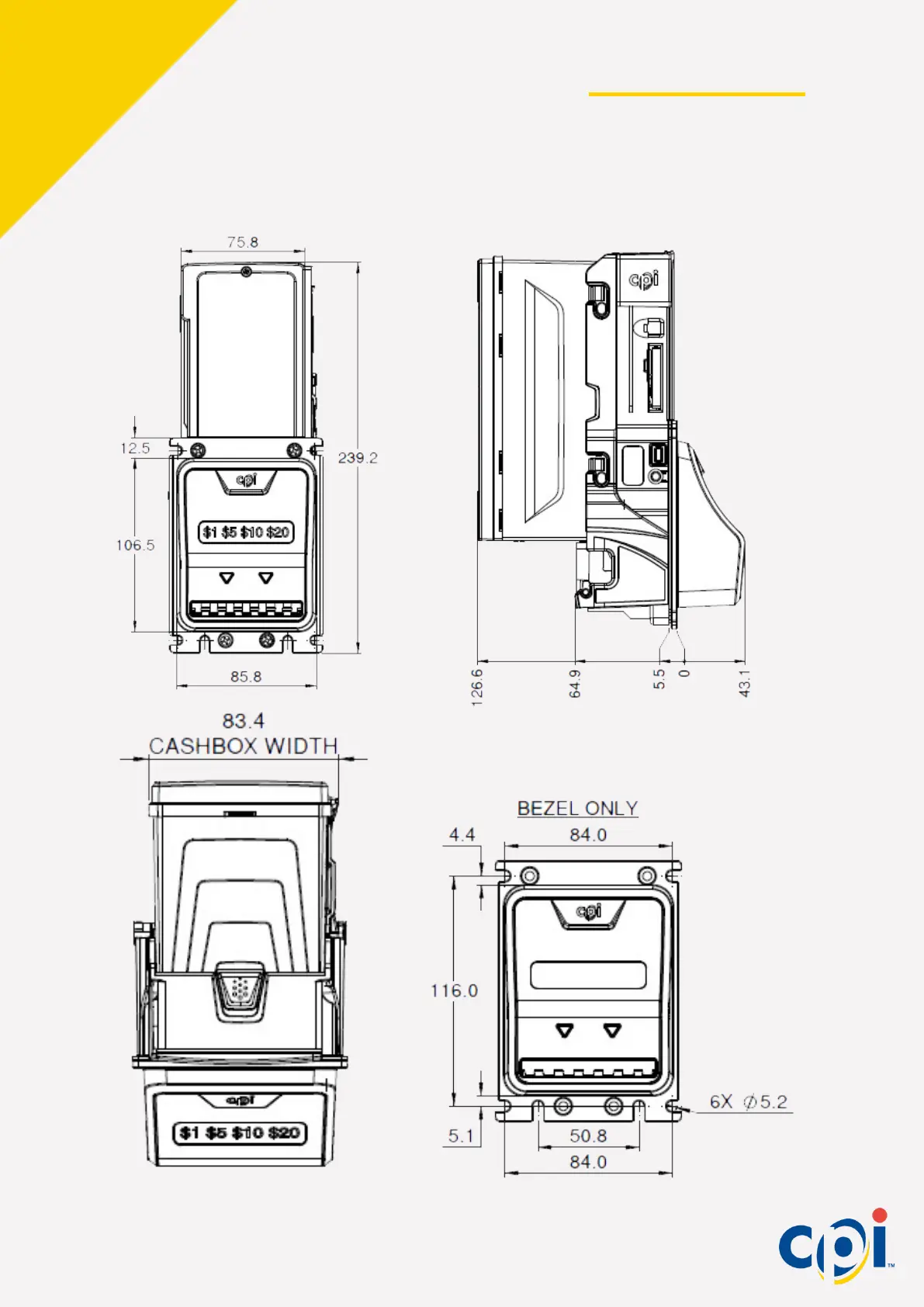

DIMENSIONAL DRAWINGS

Table of Contents

Talos Operation and Service Guide1
General Information3
- Overview3
- Restrictions3
- Product Summary3
- Bezel Styles4
- Bezel Conversion Kits4
- Magazine Styles5
- Cables5
- Specifications6
- UL Listing6
- Warranty6
Installation7
- Unpacking the Bill Acceptor7
- Mounting7
Operation8
- Functional Overview8
- Enabling Bills and Vend Coupons8
- Coupon Configuration9
CPI SynQ11
- Features11
- Installation12
- Synq Error Codes15
Interfaces16
- Vending Interfaces16
- Gaming Interfaces16
- Features16
Features included in the interfaces are Escrow, Lockout, Credit Pulse and Out of Service Line Indication.16
- Escrow16
The bill can be held indefinitely and then can either be accepted or returned prior to being stacked. Escrow allows a vending machine control system to decide whether or not the last valid bill inserted will be credited or returned to the user.16
Normally, a valid bill will be accepted and held in mid-transport. At this point, the bill acceptor will transmit the value of the bill. The control system then decides to keep or return the bill.16
If the bill was kept, the bill acceptor completes transportation of the bill and transmits confirmation that the bill was stacked.16
- Accept Enable (Lockout)16
The accept enable feature allows the control system the option of disabling the Bill Acceptor. This function is controlled by the "Accept Enable" interface lines.16
- Out of Service Line Indication17
- Isolated Low Level Pulse (ILLP) Interface17
- Input Signals18
- Non-Isolated Low Level Pulse (NILLP) Interface20
- Multi-Drop Bus (MDB)22
- Non-Isolated Serial (NISR) Interface23
- Isolated Pulse (IP) Interface25
- Non-Isolated Pulse (NIP) Interface25
- Input Signals27
- Extended Bi-Directional Serial Interfaces (EBDS)28
- Non-Isolated Pulse+ (NIP+) Interface (12V Battery Only)29
- Pulse Outputs30
 Vending30
o Short = 30ms ON with 50ms between pulses (off) ± 5ms30
o Long = 35ms ON with 300ms between pulses (off) ± 5ms30
 Gaming30
o Short = 50ms ON with 50ms between pulses (off) ± 5ms30
o Long = 60ms ON with 300ms between pulses (off) ± 5ms30
 Voltage to “Credit Relay Normally Open” supplied by VMC30
 “Credit Relay common” also supplied by VMC.30
 Open collector output must be tied to a voltage through a pull-up resister on the Control System. The voltage is typically 5 to 12VDC.30
.30
Maintenance33
- Cleaning33
- Bezel LED Error Flash Codes33
Troubleshooting34
Dimensional Drawings35
Fine print36
- Owner’s Responsibility36
- CPI, Inc. Responsibility36
- Service36
