Talos Operation and Service Guide
32

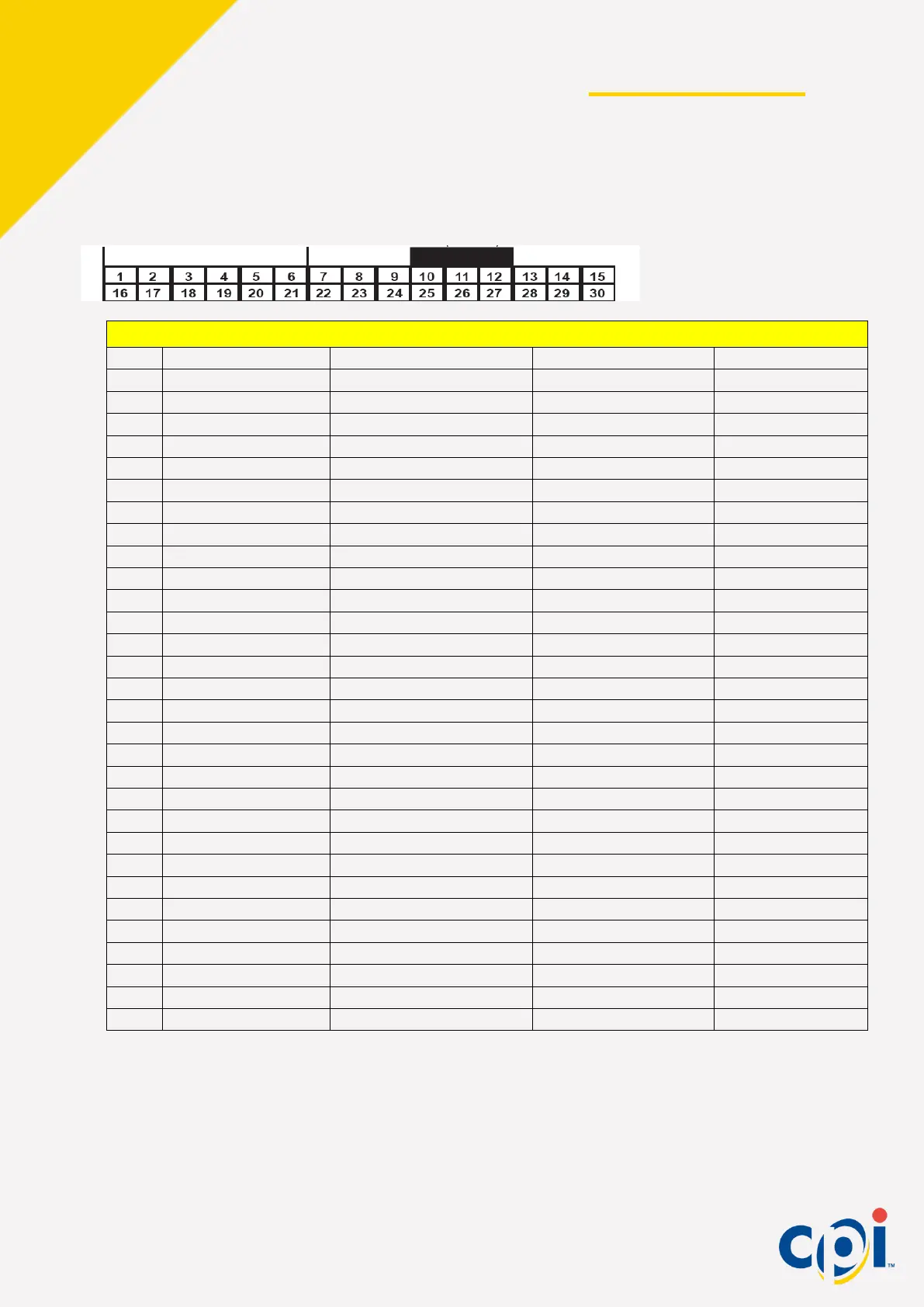

PINOUT INFORMATION FOR 30 PIN CONNECTOR (CONT.)
VENDING PINOUTS ONLY
Pinout
115 Volt AC Model
24 Volt AC /MDB Model
12 Volt DC Model
12Volt Battery Model
Pin 1
CREDIT RELAY Common
Same
Same
Not Applicable
Pin 2
RESERVED
CREDIT RELAY N.O.
CREDIT RELAY N.O.
Not Applicable
Pin 3
NEUTRAL ENABLE
24 VAC HOT power
RESERVED
Not Applicable
Pin 4
115 VAC NEUTRAL
HOT ENABLE
RESERVED
Not Applicable
Pin 5
NEUTRAL INHIBIT
KEY
KEY
Not Applicable
Pin 6
KEY
MDB MASTER RECEIVE
MDB MASTER RECEIVE
Not Applicable
Pin 7
$ 1 CREDIT_NOT
Same
Same
Not Applicable
Pin 8
INTERRUPT_NOT
Same
Same
Not Applicable
Pin 9
$ 5 CREDIT_NOT
Same
Same
Not Applicable
Pin 10
LOW LEVEL_GND
Same
Same
Not Applicable
Pin 11
DATA_NOT
Same
Same
Not Applicable
Pin 12
ESCROW, High
Same
Same
Not Applicable
Pin 13
$ 5 ENABLE, High
Same
Same
Not Applicable
Pin 14
$ 2 ENABLE, High
Same w MDB_MASTER_TXD
Same w
Not Applicable
Pin 15
$ 1 ENABLE, High
Same
Same
Not Applicable
Pin 16
CREDIT RELAY - Open
DC RETURN
12VDC RETURN
Not Applicable
Pin 17
RESERVED
NEUTRAL INHIBIT
RESERVED
Not Applicable
Pin 18
HOT ENABLE
NEUTRAL ENABLE
RESERVED
Not Applicable
Pin 19
KEY
12 VDC HOT power
Not Applicable
Pin 20
115 VAC HOT power
24 VAC NEUTRAL power
RESERVED
Not Applicable
Pin 21
EARTH GROUND
KEY
KEY
Not Applicable
Pin 22
OUT-OF-SERVICE_NOT
Same
Same
Not Applicable
Pin 23
RESERVED
MDB_34 Volt DC
RESERVED
Not Applicable
Pin 24
ACCEPT ENABLE_NOT
Same
Same
Not Applicable
Pin 25
$2 CREDIT_NOT /
Same
Same
Not Applicable
Pin 26
SEND_NOT
Same
Same
Not Applicable
Pin 27
$ 1 ENABLE, Low
Same
Same
Not Applicable
Pin 28
$ 2 ENABLE, Low
Same with MDB_COMMON
$2 ENABLE, Low
Not Applicable
Pin 29
$ 5 ENABLE, Low
Same
Same
Not Applicable
Pin 30
ESCROW, Low
Same
Same
Not Applicable
