14
1. Install 4 AA Alkaline (included) or rechargeable batteries into back of manifold.
2. Press and hold [ON/OFF] (green button) to turn manifold ON.
3. WELCOME SCREEN appears briefly (displays current version of software).
4. “LOC” and “SEL” will appear on the display.
5. Intermittently press [CLR] to scroll among regions:
• AUSTRALIA (Australia, Asian Pacific)
• EUROPE (All of continental Europe, plus Great Britain, Russia)
• USA (Includes USA, Canada, Caribbean, Central or South America)
6. Press [SET] to select desired region.
7. To change the region selected:
A. Press and hold [SET], then [ON/OFF] until display appears, then release BOTH keys.
B. This will take you back to step 5 above. Select another region.

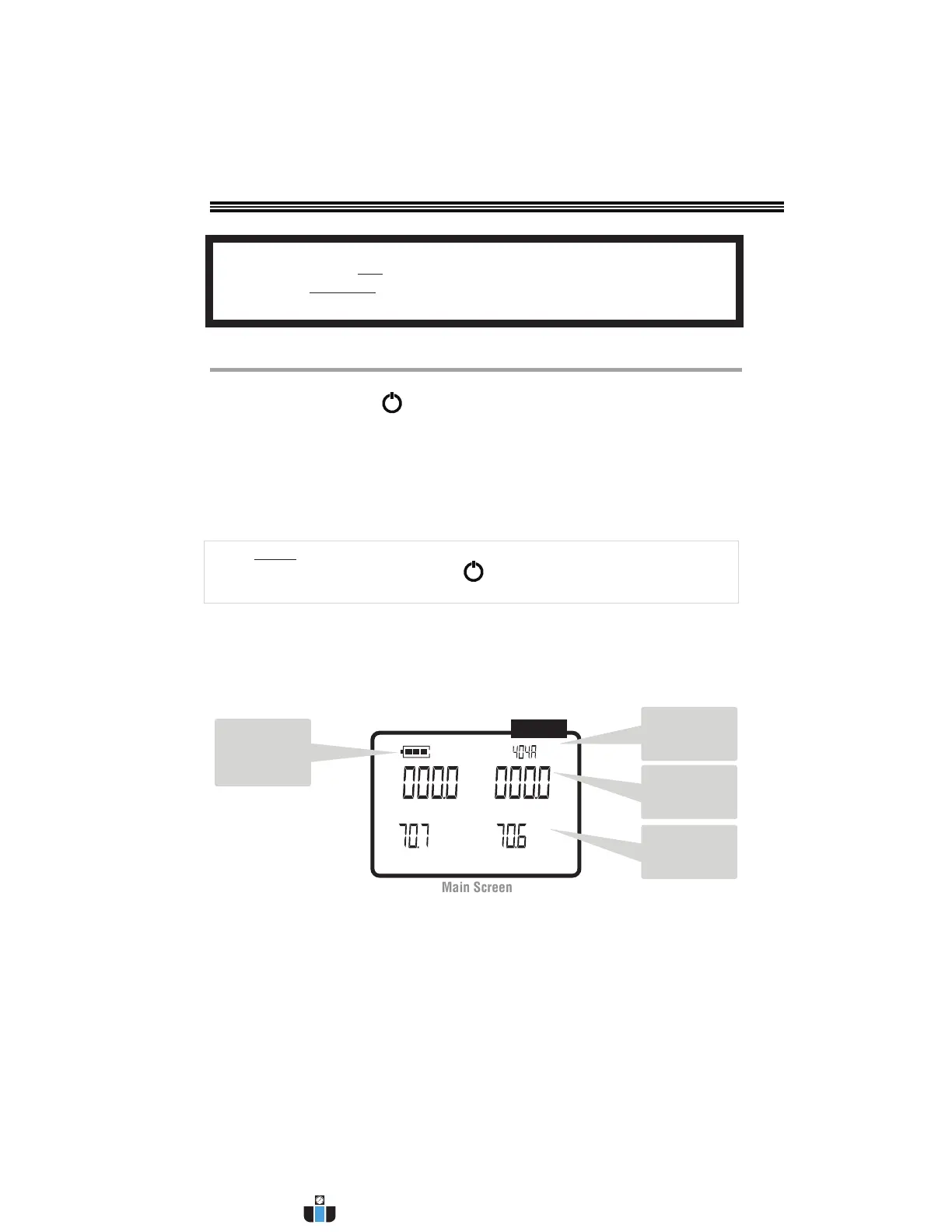

8. The next screen will be the “MAIN” screen [FIG.1] showing default status for the following:
• Battery charge status/APO (On or Off)
• High and low side working pressures
• High and low side temperatures
• Current working refrigerant
QUICK START INSTRUCTIONS (WIRELESS DIGITAL MANIFOLD)
If your mobile device is NOT available, Wireless BLACKMAX Digital Manifolds may also
be operated as stand-alone devices. Simply follow these instructions.
T LOW
°F
T HIGH
°F
R
Psig Psig
APO
Battery Level
Indicator,
(and APO Status)
Current
Working
Refrigerant
High and Low
Side Working
Pressures
High and Low
Side Working
Temperatures
FIG.1
OPERATING THE WIRELESS MANIFOLD WITHOUT THE APP
9. Review and adhere to all safety instructions.
10. Connect MD50W or MD100W series to an AC system.
11. You are now ready to work.
