15
T LOW
°F
T HIGH
°F
R
Psig Psig
APO
Refrigerants

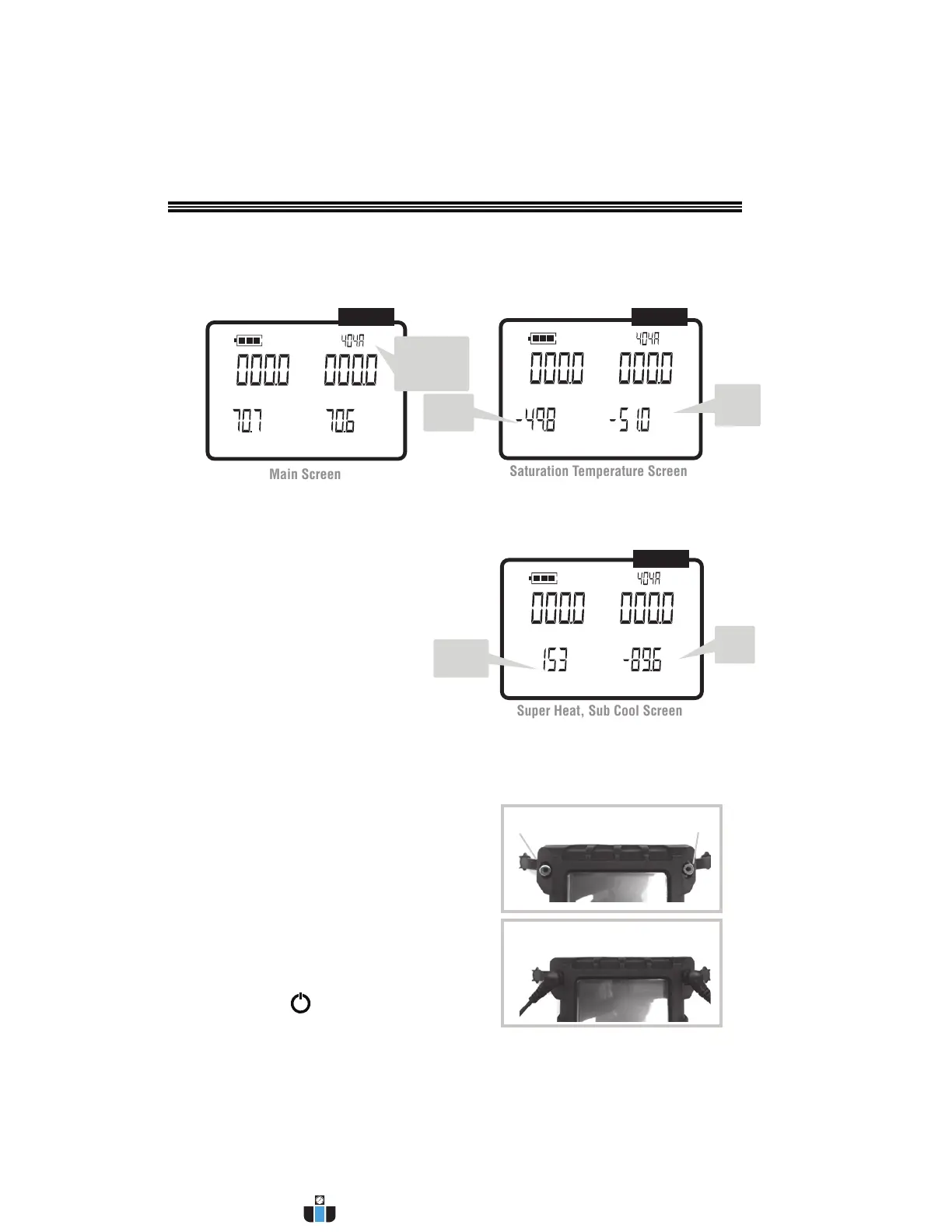

FIG.1
INITIAL OPERATION
3. Note: In this mode, and to prevent errors, refrigerant cannot be changed using [REF]
key. Press [CLR] to return to the Main Screen [FIG.1] from this view.
4. To View Superheat (SH) and Sub-cool (SC) Temperatures- Press [SH/SC] again.
1. To Select A Refrigerant Other Than the One Shown- From Main Screen [FIG.1], press
[REF] to scroll through a list of 5 common factory programmed refrigerants.
Note: To change default refrigerants, go to page 20.
Note: Thermistor sensors must be connected to get a T Low and / or T High temperature reading.
2. To View Vapor (VSAT) and Liquid (LSAT) Saturation Temperatures, press [SH/SC]
Saturation Temperature Screen
VSAT
°F
LSAT
°F
R
Psig Psig
APO
VSAT
LSAT
FIG.2
SH
°F
SC
°F
R
Psig Psig
APO
Super Heat, Sub Cool Screen
Sub
Cool
Super
Heat
FIG.3
5. Note: In this mode, and to
prevent errors, refrigerant
cannot be changed using the
[REF] key. Press [CLR] to return
to Main Screen [FIG.1] from
this view.
Thermistor Sensors - The
enclosed clamps can be used to
take temperatures of pipes or
other round surfaces within its
jaw range (1/8” to 1-1/8”). This greatly improves the calculation of Superheat and Subcool
temperatures, as the sensor is virtually isolated from ambient conditions, allowing
sensors to read true pipe temperatures while attached.
Blue Red
Operation - Plug one lead into the LEFT
(Blue) socket and one lead into the RIGHT
(Red) socket. Apply Thermistor Sensors to
system tubing and read the resulting display
temperatures.
6. To Display Difference Between High and
Low Side Temperatures- Press [SH/SC]
again. Press [CLR] to return to Main Screen
[FIG.1].
7. To turn manifold OFF, press and hold the
[ON/OFF] until the screen shows “OFF”.
www.calcert.com sales@calcert.com1.888.610.7664
