CPS BlackMax Series User Manual

5

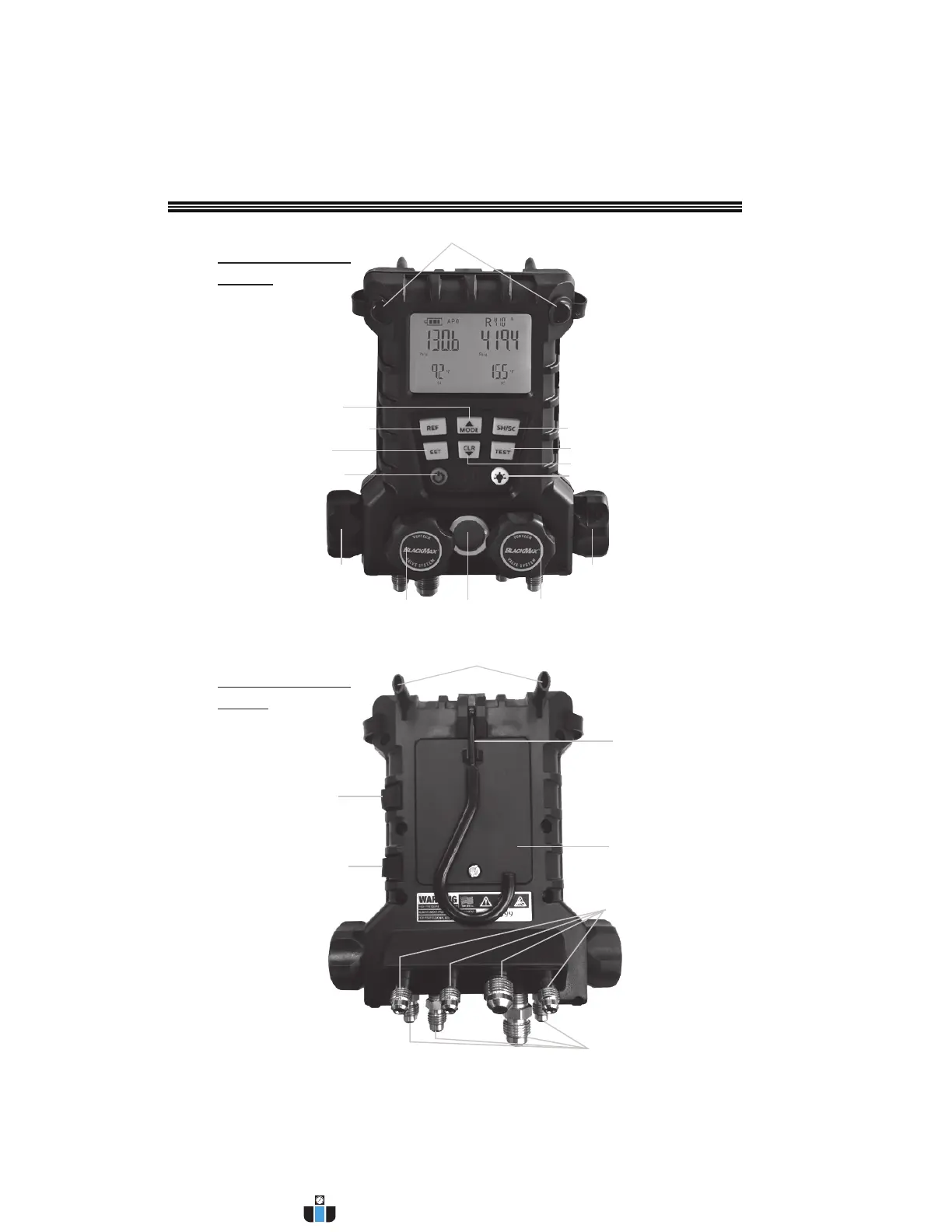

CONTROLS AND FEATURES - BLACKMAX WIRELESS DIGITAL MANIFOLD
4 Valve Manifold
(Front)
6.) Test
7.) Clear
8.) Backlight
9.) High Side Valve
10.) Refrigerant
Valve
11.) Sightglass12.) Vacuum
Valve
13.) Low
Side
Valve
1.) On/Off
2.) Set
3.) Refrigerant
4.) Mode
5.) Superheat/ Subcool
21.) Connection Points For
Thermistor Sensors
18.) Swivel Hook
19.) Battery Compartment
20.) Hose Hangers
15.) 9V DC
Charger Port
16.) Vacuum Gauge
Accessory Port
22.) SAE Hose Connection Ports
22.) Storage Posts
4 Valve Manifold
(Back)
