OPERATING INSTRUCTIONS FOR THE FA1000
IF REQUIRED
INJECT OIL AT
THIS TIME
CONTINUE >
QUIT >
If the
CHANGE UNITS
key is pushed, the LCD will read:
Select units of measure.
For model FA1000/FA1000B, use the
481500 Oil/Dye injector kit to inject
oil into the mobile A/C system. For all
other models, use the integrated oil in-
jection bottle to add oil into the mobile
A/C system.
Continue by pushing the + or - ARROW key until the charge
amount is programmed. Once desired amount is programmed,
push the
START
key.
SELECT UNITS
OF MEASURE
LBS >
LBS : OZ >
KGS >
GRAMS >
OZ >
CHARGE + >
CHARGE - >
CHANGE UNITS >
START >
QUIT >

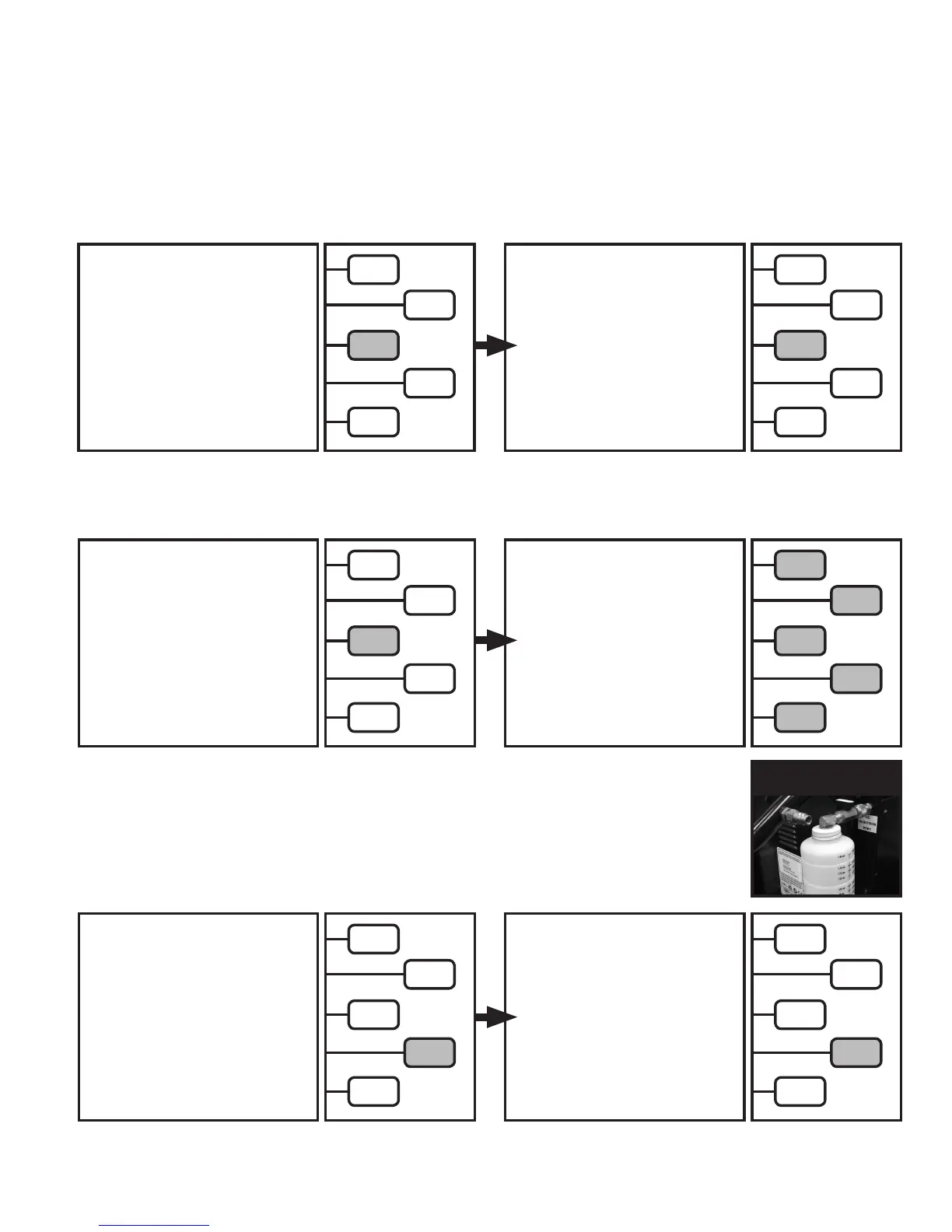

CHARGE MODE:
The CHARGE mode would be chosen to recharge a mobile A/C system after it has been properly evacuated.
This is also the time to inject oil back into the A/C system.
See special instructions on page 23 for High Voltage Compressor
A/C system charging.
From the Main Menu screen,
Push the
CHARGE
key.
SELECT MODE
RECOVER >
EVACUATE >
CHARGE >
TANK REFILL >
LOW SIDE >
HIGH SIDE >
BOTH >
The LCD will now read:
Select which service hose unit should charge through. It is
recommended to use
HIGH SIDE
charging to prevent
compressor slugging.
The LCD will now read:
If desired, the units of measure can be changed
at this time. Push the
CHANGE UNITS
key.
* AVAILABLE REF. This is the amount of refrigerant available for charging. If this drops below zero, charging will not start.
Integrated Oil
Injection System
CHARGE SELECT-
ED
2.00 LBS
* AVAILABLE REF.
24.00 LBS
CHARGE + >
CHARGE - >
CHANGE UNITS >
START >
QUIT >
10
To Next Page
