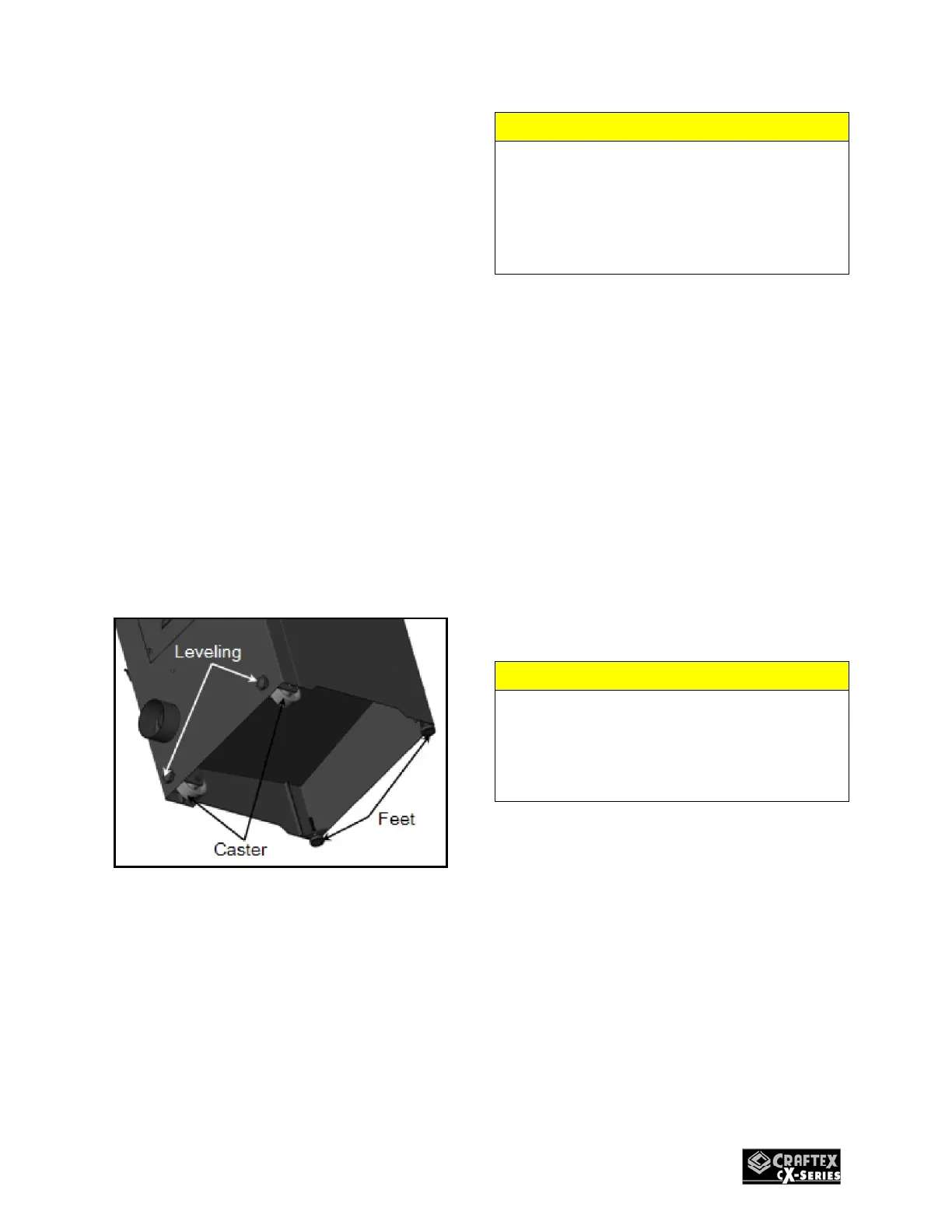

CABINET ASSEMBLY
Assemble the four cabinet sides together
with the eight hex bolts and nuts.
Use a fork truck / hoist and straps that
can hold at least 200 Kg. Lift the band
saw onto the top of the cabinet so that the
holes on the band saw base align with the
holes on the cabinet.
Secure the band saw onto the cabinet
using the four hex bolts and flat washers
provided.
Figure-2 Mounting the band saw to the
cabinet
CUTTING FLUID SYSTEM
This CX117 comes a built-in cutting fluid
system that extends the life of band saw
blade by lowering the temperature of the
blade and work-piece while operation.
TO USE THE CUTTING FLUID SYSTEM:
Remove the screws and the reservoir
cover.
Remove any foreign material that may
have fallen inside the reservoir during
shipping and machine use.
Fill the reservoir with your cutting fluid and
replace the cover.
Figure-3 Cutting fluid system reservoir
and cover
Turn the cutting fluid pump switch ON and
adjust the valves on the cutting fluid
hoses to control the flow of the cutting
fluid. See figure-4.
Figure-4 Cutting fluid control valve
Monitor the cutting fluid level frequently to
keep the system working properly.
WARNING!
CX117 is a very heavy machine, do not
over-exert yourself. For safe moving
method use fork truck.
IMPORTANT!
Always keep the reservoir cover clear
so that the cutting fluid recycle easily.
