CX418 PARTS LIST
No. Description Part Number Qty.
1 Caster 4
2 Hex Screw 5/16 x ½” 48
4 Base Plate 1
5 Pan Head Screw 10-24 x 3/8” 12
6 Inlet Cover 1
7 Hex Head Screw M6 1.0 x 19mm 1
8 Hex Head Screw 3/8” x 1/2" 2
9 Washer 1
10 Impeller, 12” 1
11 Collector Body 1
12 Washer 5/16” 8
13 Pan Head Screw 10-24 x 1” 2
14 Hex Head Screw 5/16” x 3/4" 4
15 Hex Head Screw 5/16” x 1” 4
16 Motor Switch 1
17 Motor 1
18 Nut 5/16” 4
19 Collector Body 1
21 Left Collector 1
22 Collector Bag 2
23 Collector Support 2
24 Right Collector 1
25 Gasket 1
27 Canister Filters 2
28 Gasket 3

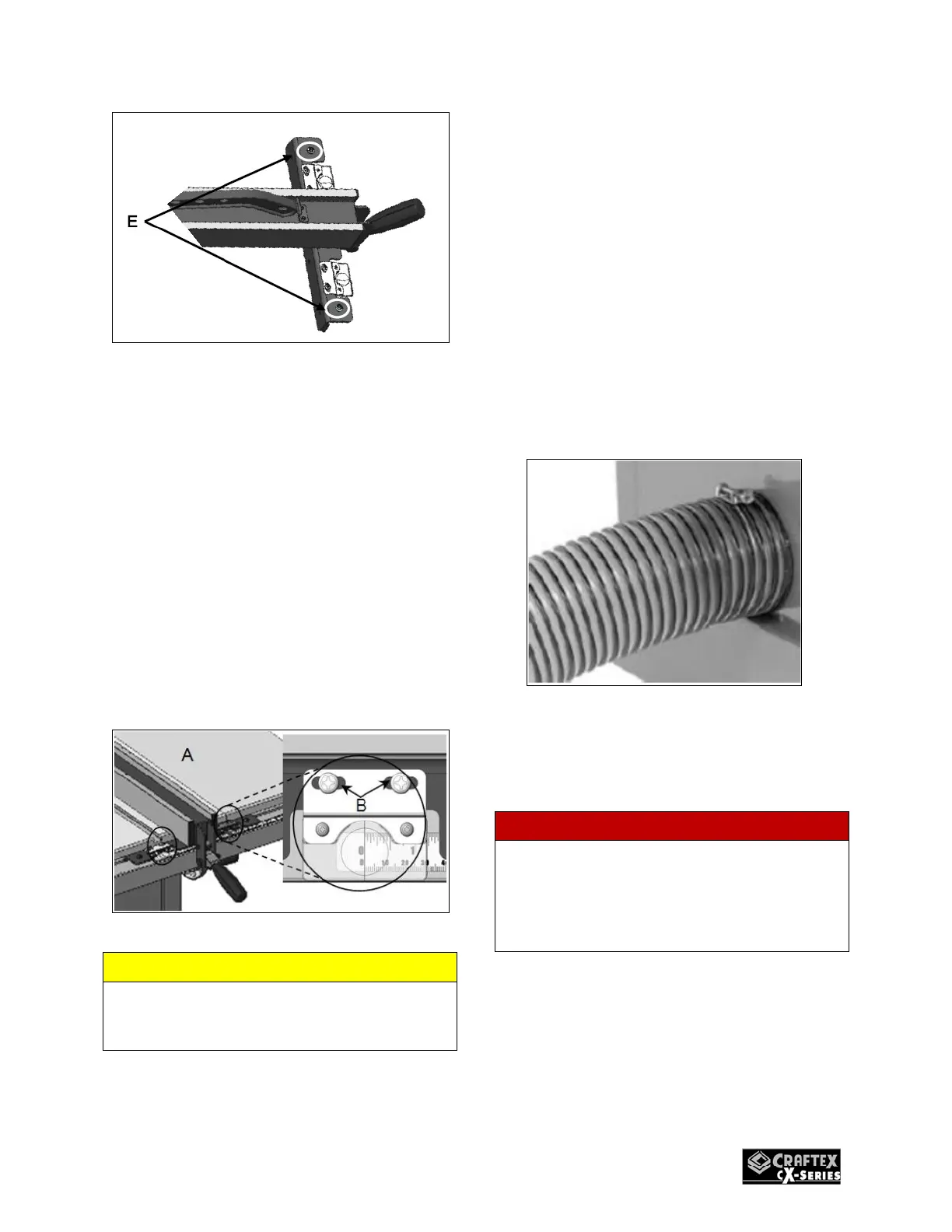

29 Triple Gate 1
30 Key 7mm x 7mm x 28mm 1
31 Power Cord 1
32 Wrench 12mm 1
33 Hex Wrench 5mm 1
34 Cable 1
35 Cap 2
36 Bag Clamp 2
37 Switch Box 1
38 Head Screw 4
40 Screw M4 x 12 2
44 Wrench 6mm 1
46 Spring Washer M10 4
47 Hex Screw M10 x 6 4
