Craftex CX418 - Base Plate Assembly; Motor;Impeller Assembly

8
CX418 DUST COLLECTOR
ASSEMBLY INSTRUCTIONS
Base Plate Assembly
You will first want to start by assembling
the base and casters.

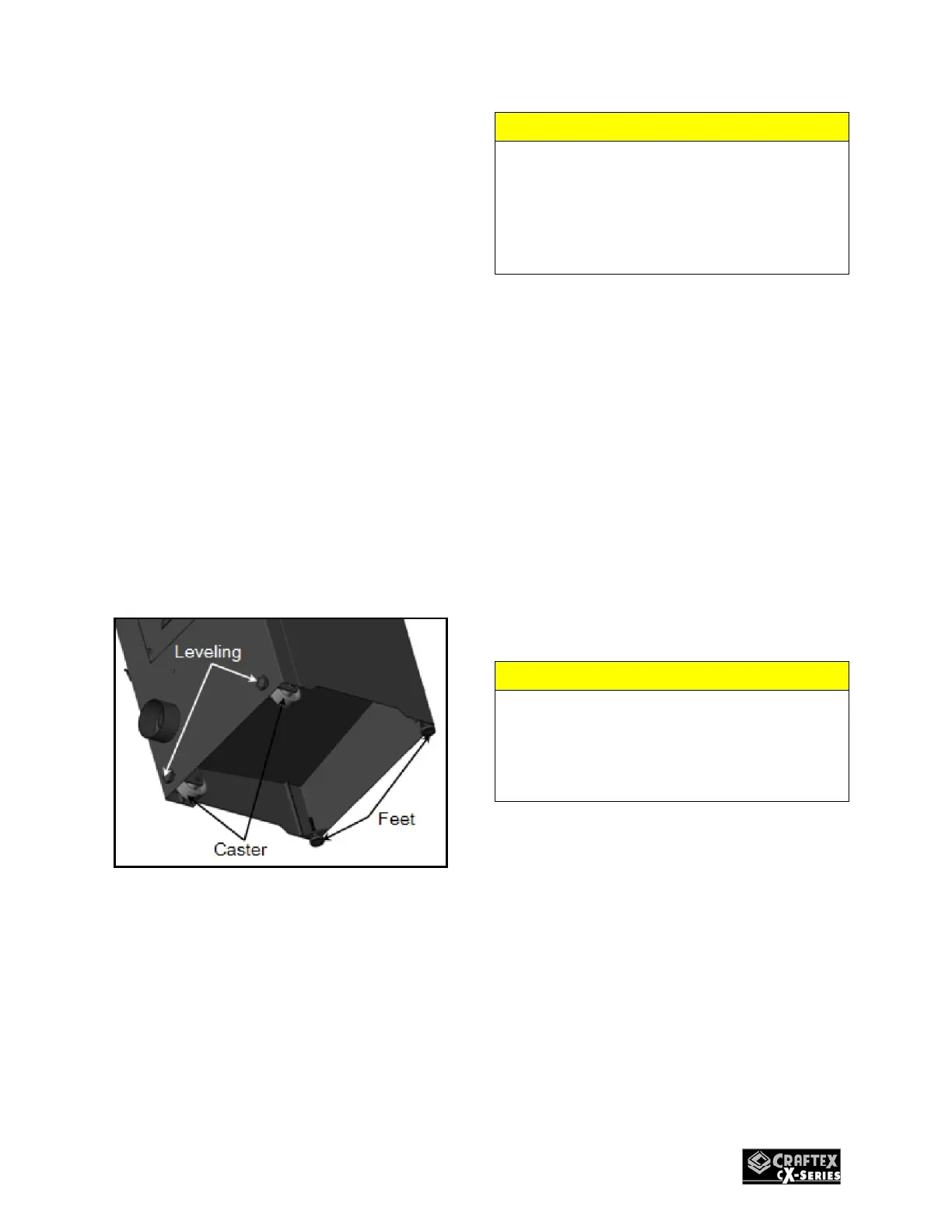

Select the Base Plate and turn it upside
down. Select the 4 Casters and fasten to
the Base Plate underside as illustrated.
Select the appropriate nuts from the Parts
Bag and tighten securely with the Metric
Wrench provided.
Motor/Impeller Assembly
Turn the Base Plate to its upright
position and select the Motor/Impeller
Assembly. Mount the Motor/Impeller
Assembly to the Base Plate by
locating the appropriate holes. Fasten
the Assembly with the nuts, bolts and
washers provided and tighten
securely with the Metric Wrench.
