0 0 0 0
o

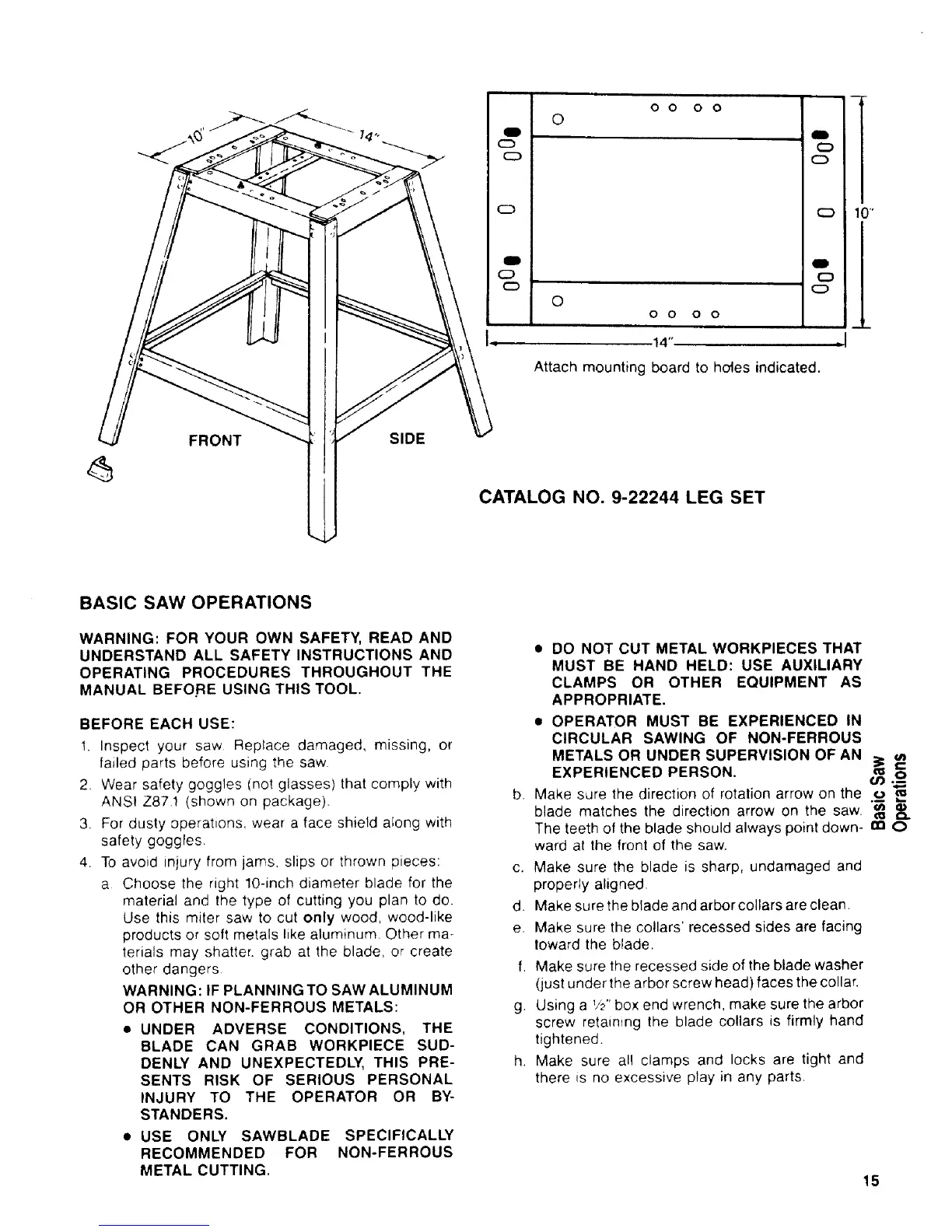

Attach mounting board to holes indicated.
l
10"
FRONT SIDE
CATALOG NO. 9-22244 LEG SET
BASIC SAW OPERATIONS
WARNING: FOR YOUR OWN SAFETY, READ AND
UNDERSTAND ALL SAFETY INSTRUCTIONS AND
OPERATING PROCEDURES THROUGHOUT THE
MANUAL BEFORE USING THIS TOOL.
BEFORE EACH USE:
1. Inspect your saw Replace damaged, missing, or
failed parts before using the saw.
2. Wear safety goggles (not glasses) that comply with
ANSI Z87.1 (shown on package).
3. For dusty operations, wear a face shield along with
safety goggles.
4. To avoid injury from jams, slips or thrown pieces:
a Choose the right 10-inch diameter blade for the
material and the type of cutting you plan to do.
Use this miter saw to cut only wood, wood-like
products or soft metals like aluminum. Other ma-
terials may shatter, grab at the blade, or create
other dangers
WARNING: IF PLANNING TO SAW ALUMINUM
OR OTHER NON-FERROUS METALS:
= UNDER ADVERSE CONDITIONS, THE
BLADE CAN GRAB WORKPIECE SUD-
DENLY AND UNEXPECTEDLY, THIS PRE-
SENTS RISK OF SERIOUS PERSONAL
INJURY TO THE OPERATOR OR BY-
STANDERS.
• USE ONLY SAWBLADE SPECIFICALLY
RECOMMENDED FOR NON-FERROUS
METAL CUTTING.
• DO NOT CUT METAL WORKPIECES THAT
MUST BE HAND HELD: USE AUXILIARY
CLAMPS OR OTHER EQUIPMENT AS
APPROPRIATE.
• OPERATOR MUST BE EXPERIENCED IN
CIRCULAR SAWING OF NON-FERROUS
METALS OR UNDER SUPERVISION OF AN
EXPERIENCED PERSON.
b. Make sure the direction of rotation arrow on the
blade matches the direction arrow on the saw.
The teeth of the blade should always point down-
ward at the front of the saw.
c. Make sure the blade is sharp, undamaged and
properIy aligned
d. Make sure the blade and arbor collars are clean.
e. Make sure the collars' recessed sides are facing
toward the blade.
f. Make sure the recessed side of the blade washer
(just under the arbor screw head) faces the collar.
g. Using a _/_"box end wrench, make sure the arbor
screw retaining the blade collars is firmly hand
tightened.
h. Make sure all clamps and locks are tight and
there _s no excessive play in any parts.
mO
15
