maintenance

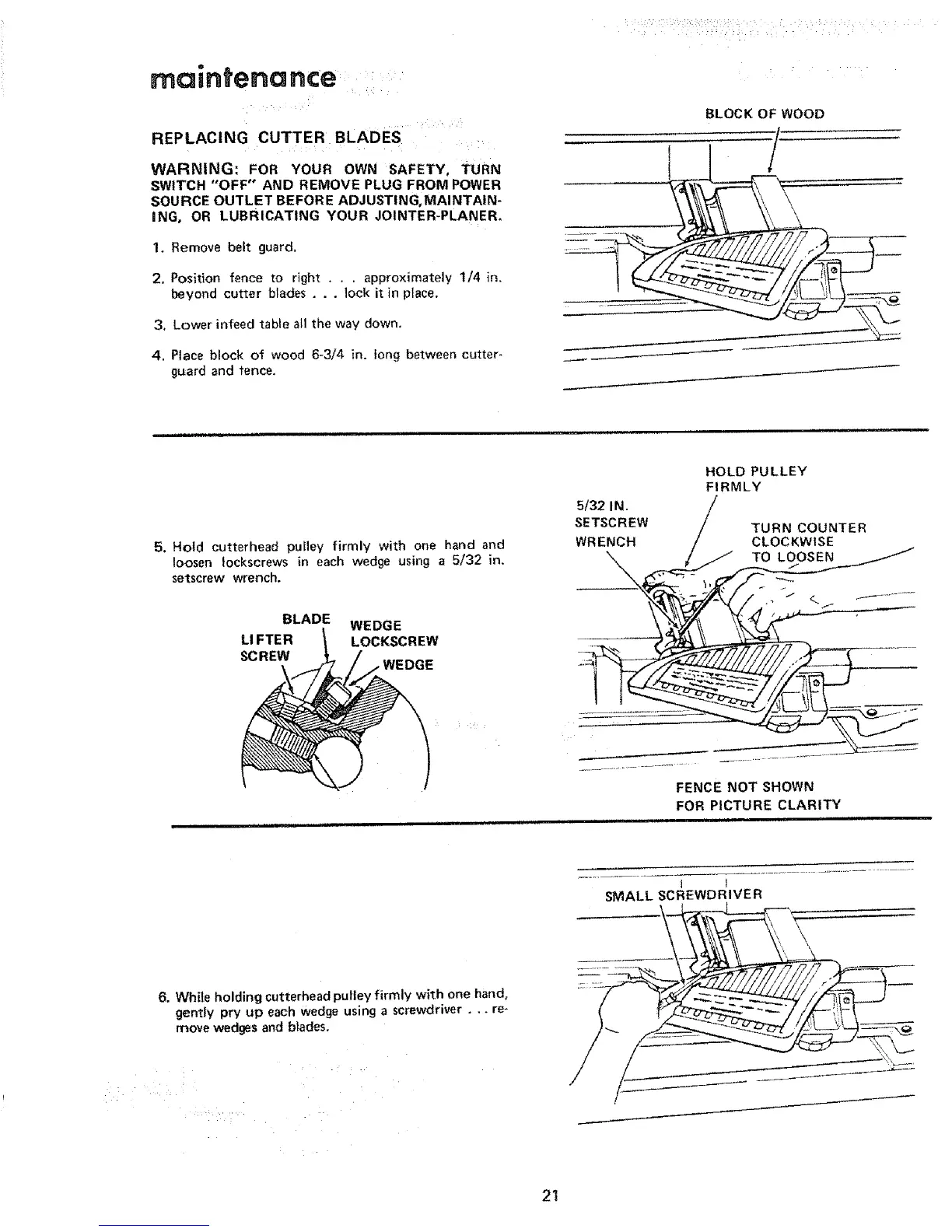

REPLACING CUTTER BLADES
WARNING: FOR YOUR OWN SAFETY. TURN
SWITCH "OFF" AND REMOVE PLUG FROM POWER
SOURCE OUTLET BEFORE ADJUSTING, MAINTAIN-
ING, OR LUBRICATING YOUR JOINTER-PLANER.
1. Remove belt guard,
2. Position fence to right . , . approximately I/4
beyond cutter blades . . . lock it in place,
3, Lower infeed table all the way down.
In.
4. Place block of wood 6-3/4 in. long between cutter-
guard and fence,
BLOCK OF WOOD
5, Hold cutterhead pulley firmly with one hand and
loosen tockscrews in each wedge using a 5/32 in.
setscrew wrench.
BLADE WEDGE
LIFTER LOCKSCREW
SCREW
HOLD PULLEY
FIRMLY
5/32 IN. /
SETSCREW
/ TURN COUNTER
WRENCH /_._ CLOCKWISE
__ TO LOOSEN __
____ •............. ..........
FENCE NOT SHOWN
FOR PICTURE CLARITY
= i
I I
SMALL SCREWDRIVER
6. While holding cutterhead pulley firmly with one hand,
gently pry up each Wedgeusing a screwdriver . re-
move wedges and blades.
21

Craftsman 113 Specifications

General

Type	Benchtop Planer
Motor Type	Induction
Cutterhead Speed	10, 000 RPM
Maximum Cutting Depth	1/8 inch
Maximum Material Thickness	6 inches
Motor Amperage	15 Amps
Feed Rate	26 ft/min
Maximum Cutting Width	12.5 inches
Knife Size	12.5 x 1 x 0.125 inches
Dust Port Size	2.5 inches
