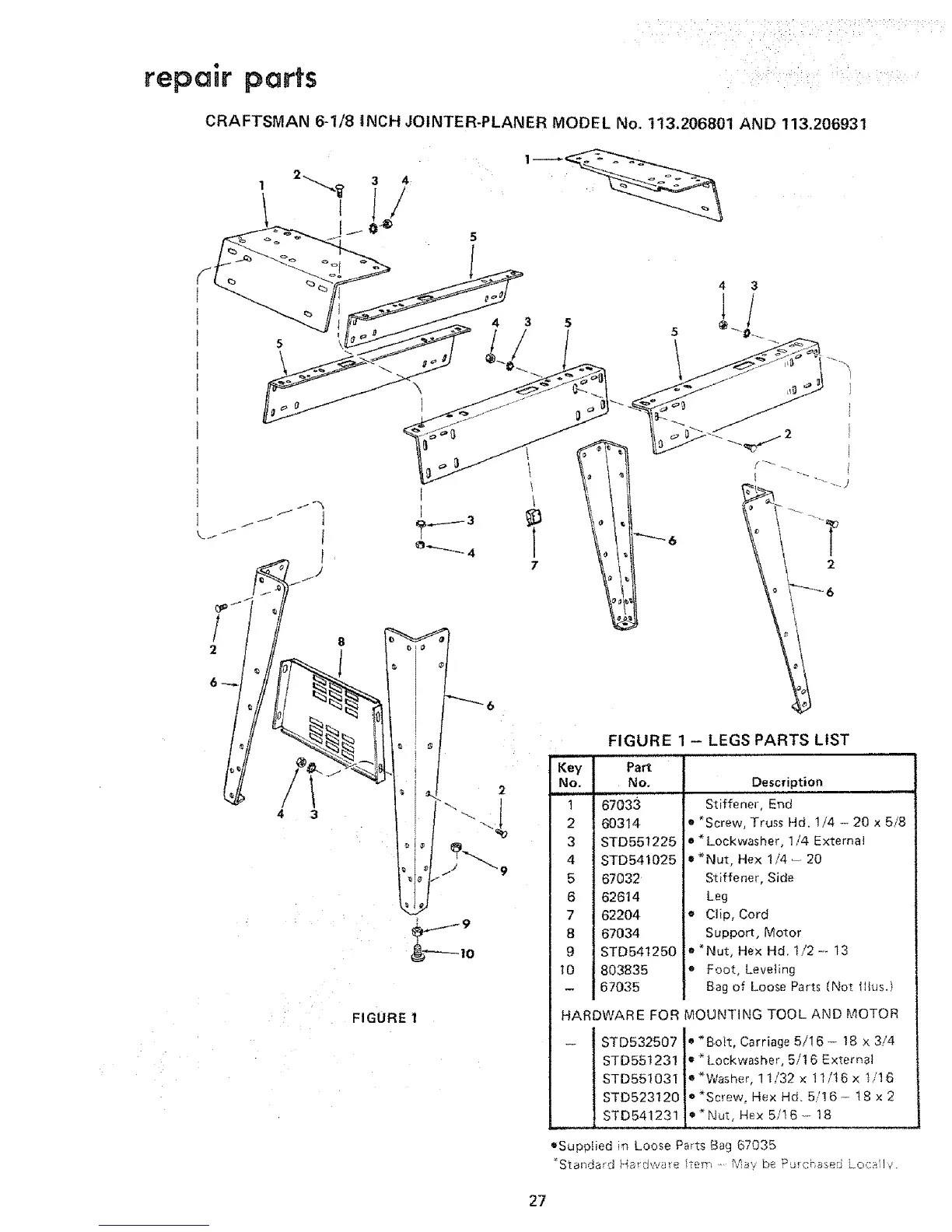

CRAFTSMAN 6-1/8 iNCH JOINTER-PLANER MODEL No. 113.206801 AND 113.206931
l
i't
4 3
FIGURE 1
7
2
FIGURE 1 - LEGS PARTS LIST
Key
No.
1
2
3
4
5
6
7
8
9
10
Pa_
No.
67033
60314
STD551225
STD541025
67032
62614
62204
67034
STD541250
803835
67035
Description
Stiffener, End
• *Screw, Truss Hd. 1/4 - 20 x 5/8
• * Lockwasher, 1/4 External
o'Nut, Hex 1/4- 20
Stiffener, Side
Leg
• Clip, Cord
Support, Motor
• *Nut, Hex Hd. t72--- 13
• Foot, Leveling
Bag of Loose Parts (Not fl{us,)
HARDWARE FOR MOUNTING TOOL AND MOTOR
-- I STD532507 le*Boft, Carriage5/16- t8x 3/4
STD551231 I • *Lockwasher, 5/t6 External
I STD551031 le*Washer, 11/32 × 11/16 x t/16
STD523120 ]e'Screw, Hex Hd, 5/16- 18 x 2
i J
_*Nut, Hex 5/t6 -,- 18
eSupplied i£ Loose Pa_ts Bag 67035
Standard Hardware _em %'_ozbe P,3!c_,,_eJ
27
