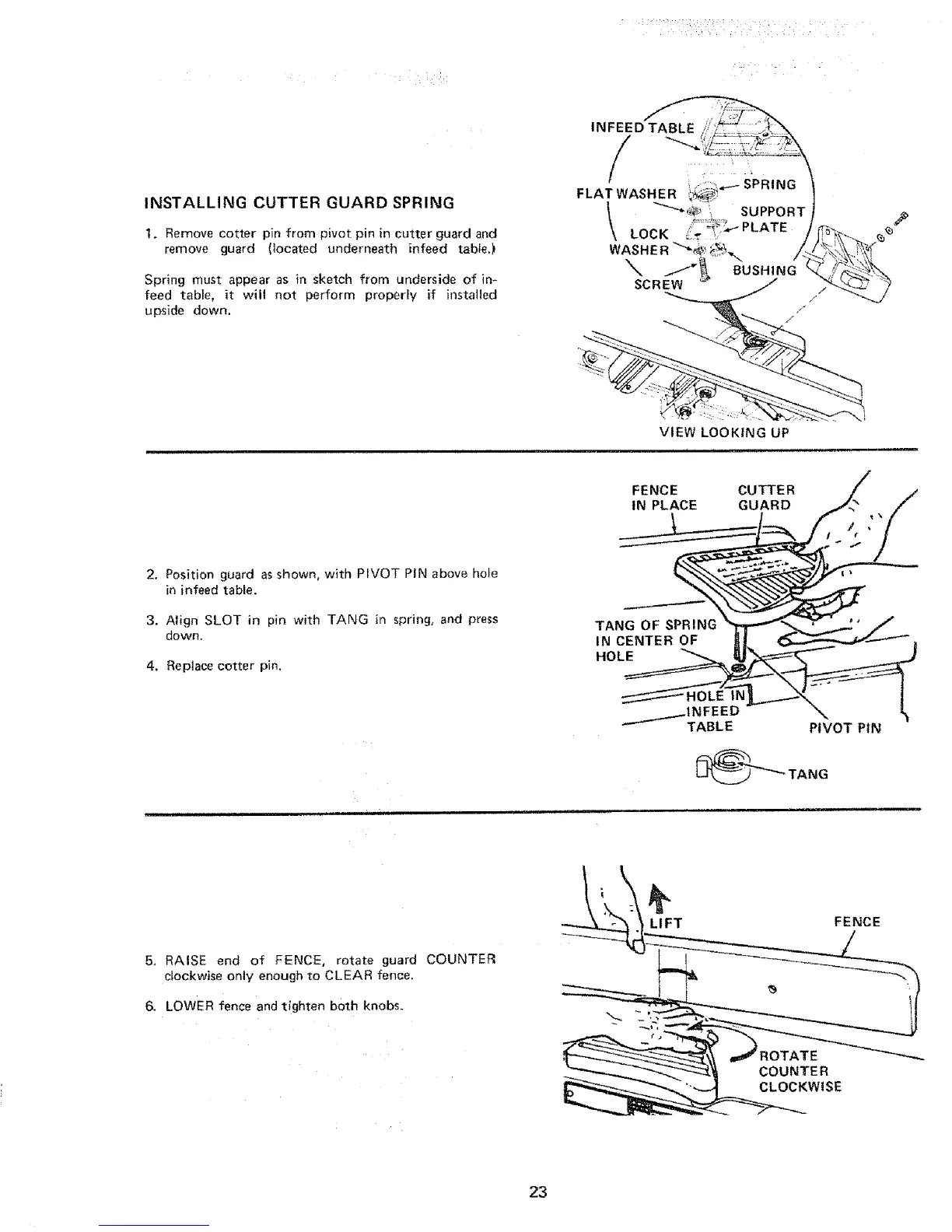

INSTALLINGCUTTERGUARD SPRING
1. Remove cotter pin from pivot pin in cutter guard and
remove guard (located underneath infeed table.)
Spring must appear as in sketch from underside of in-
feed table, it will not perform properly if installed
upside down.
INFEED
/
FLATWASHER <_'- SPRING f
suPPORT/
\ ...... >'"-__,Ip LATE / _ _. --_ _ _
WASHER_ ___ /</_\ _<
//_'_, BUSHING _-_ _._'_
VIEW LOOKING UP
2. Position guard as shown, with PIVOT PIN above hole
in infeed table.
3. Align SLOT in pin with TANG in spring, and press
down.
4. Replace cotter pin.
/
FENCE CUTTER / /
IN PLACE GUARD jr , /
TANG OF SPRING _-T-'_._"j_._ ' J
IN CENTER OF _. _-----"'_ _
HOLE_
_.....INFEED - \_
"-""-TABLE PIVOT PIN
_-_TANG
5. RAISE end of FENCE, rotate guard COUNTER
clockwise only enough to CLEAR fence.
6. LOWER fence and tighten both knobs.
LIFT
FENCE
COUNTER
CLOCKWISE
23
