Craftsman 536.884821 - OPERATION

.......... IJWIILIIlU III IIII , , iiiiii IIIIIIIII I I II I IIIIII _ II I II i ..... III1'1111i ii

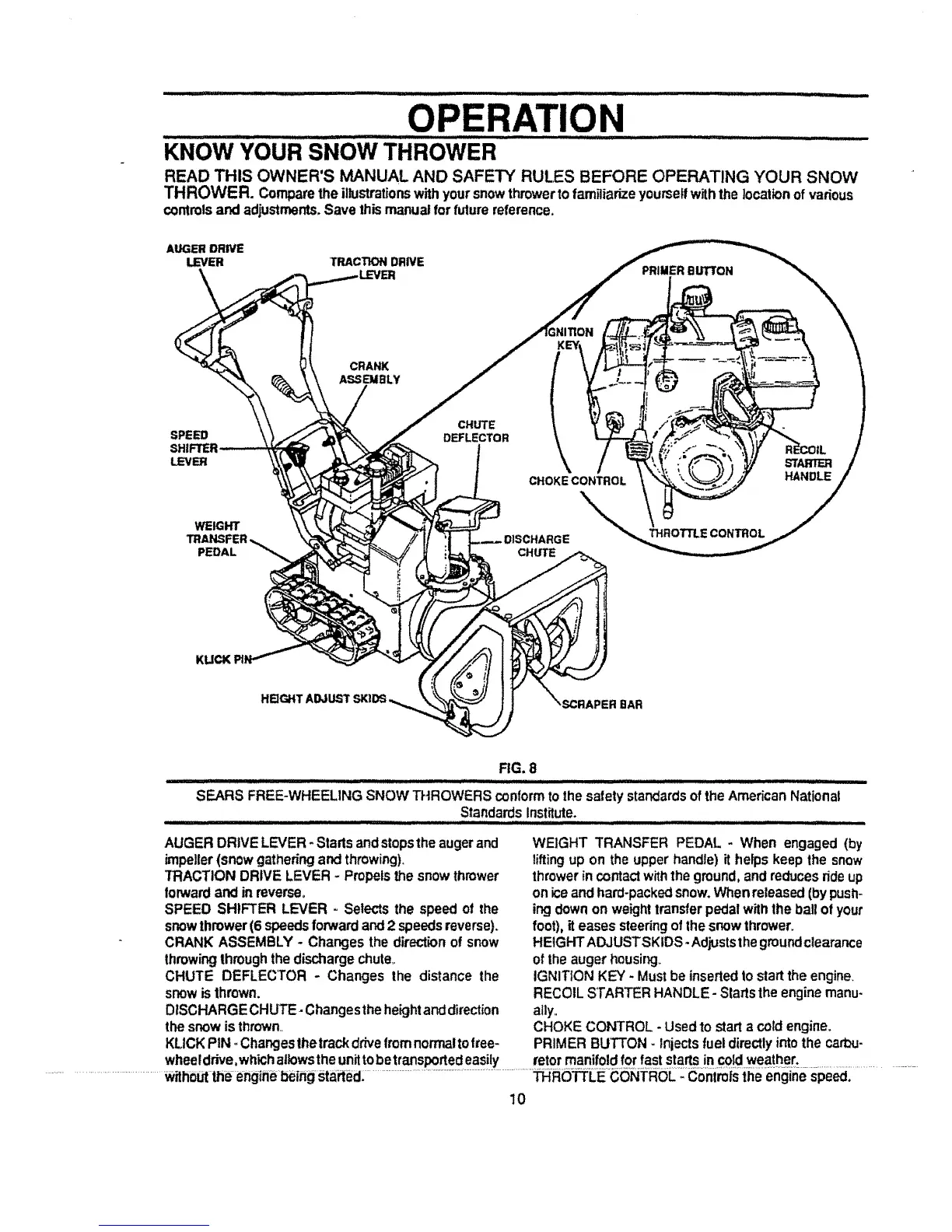

OPERA: ION
KNOwYOUR SNow THROWER .............................................................................
READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR SNOW
THROWER. Comparetheillustrationswithyoursnowthrowerto famgiarizeyourseffwiththe locationof vadous
commlsand adjustments.Save thismanualforfuturereference,
AUGERDRIVE
LEVER
'TRACTION DRNE
PRIMER Bbq'TON
SPEED
LEVER
CRANK
ASSEMBLY
CHUTE
DEFLECTOR
STARTER
CHOKE CONTROL HANDLE
WEmHr
PEDAL CHUTE
THROTTLE CONTROL
HEIGHT ADJUST
FIG. 8
SEARS FREE-WHEELING SNOW THROWERS conformto the safetystandardsof the AmericanNational
StandardsInstitute.
AUGER DRIVELEVER-Starts andstopsthe augerand
impeller(snow gatttering and throwing).
"rRACTIONDRIVE LEVER - Propelsthe snow thrower
forwardand inreverse,
SPEED SHIFTER LEVER _ Selects the speed of the
snowthrower(6 speedsforwardand2 speedsreverse).
CRANK ASSEMBLY - Changesthe direction of snow
throwingthroughthedischargechute.
CHUTE DEFLECTOR - Changes the distance the
snowis thrown.
DISCHARGECHUTE- Changestheheightanddirection
thesnow isthrown
KLICKPIN -Changesthe trackdrivefromnormaltofree-
WEIGHT TRANSFER PEDAL * When engaged (by
lifting up on theupperhandle)it helps keep the snow
throwerin contactwiththe ground,and reducesrideup
on iceand hard-packedsnow.Whenreleased(bypush-
ingdownon weighttransferpedalwiththe ball of your
foot), it eases steedng ofthesnowthrower.
HEIGHTADJUSTSKIDS -Adjuststhegroundclearance
ofthe augerhousing_
IGNITION KEY. Mustbe insertedtostartthe engine.
RECOILSTARTER HANDLE- Startstheenginemanu-
ally,,
CHOKECONTROL - Usedto start a cotdengine.
PRIMER BUTTON - Injectsfuel directlyintothe cart_u-
wheeldrive,whk_haltowstheunittobettansportedeasily retormanifoldforfaststars incoldweather.
................................... ........................................................................................................................ RO LE iheengir e ............
10
