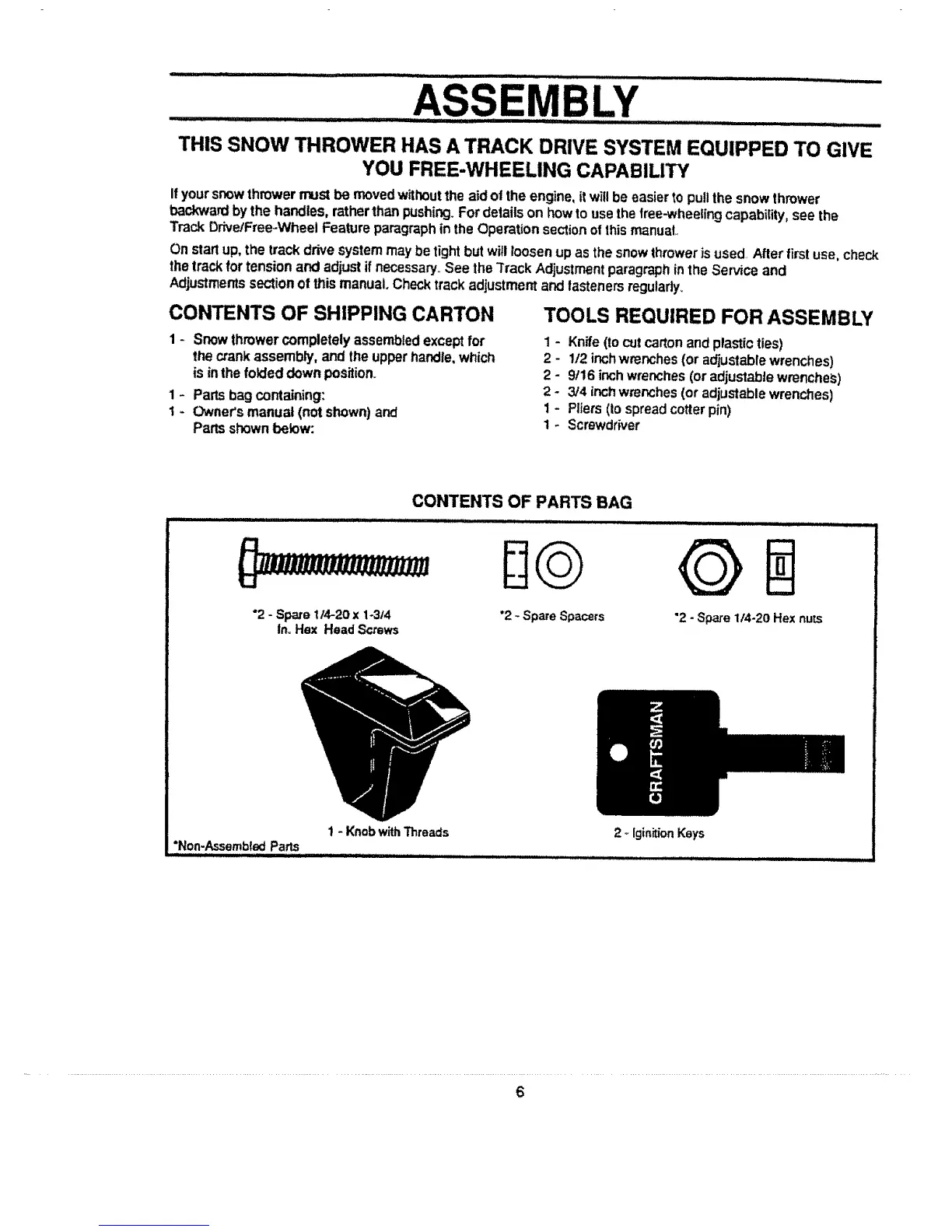

ASSEMBLY
lllll ,,,, ................
............................................. ii i!111 .................
THIS SNOW TI-IROWER HAS A TRACK DRIVE SYSTEM EQUIPPED TO GIVE
YOU FREE-WHEELING CAPABILITY
Ifyoursnowthrowermust be movedwithoutthe aidofthe engine,it willbeeasiertopullthe snowthrower
backwardby the handles, ratherthan pushing.For detailson howtouse the free-wheelingcapability,see the
Track Drive/Free-WheelFeature paragraphinthe Operation sectionof thismanual
Onstartup,the track drive systemmay betightbutwill loosenupas the snowthroweris used Afterfirstuse, check
thetrack for tensionand adjustif necessary.,See the "track Adjustmentparagraphin the Serviceand
Adjustmentssectionofthis manual. Checktrackadjustmentand fastenersreguladyo
CONTENTS OF SHIPPING CARTON
1 - Snowthrowercompletelyassembledexceptfor
thecrankassembly,and the upperhandle,which
isinthe foldeddownposition.
1 - Partsbag containing:
1 - Owner'smanual(not shown)and
Pansshownbelow:
TOOLS REQUIRED FOR ASSEMBLY
1 - Knife (to cut carton and plastic ties)
2 - 1/2 inch wrenches (or a_ustabre wrenches)
2 - 9f16 inch wrenches (or adjustable wrenches)
2 - 3/4 inch wrenches (or adjustable wrenches)
1 - Pliers (Io spread cotter pin)
1- Screwdriver
CONTENTS OF PARTS BAG
............... i I IIIII I II I I IIIIIIII II1'11111[11 I i, iiiiiiiiiiiiii ii i III
°2 - Spa_e 114-20x 1-3/4
In. Hox Head Screws
"2 -Spare Spacers
"2 - Spare 1/4-20 Hex nuts
1 - KnobwithThreads
"Non-AssembledParts
ill IH,ILIJ ,,,I[HIIII_',11'III ............ , ,
2 _iginitionKeys
6
