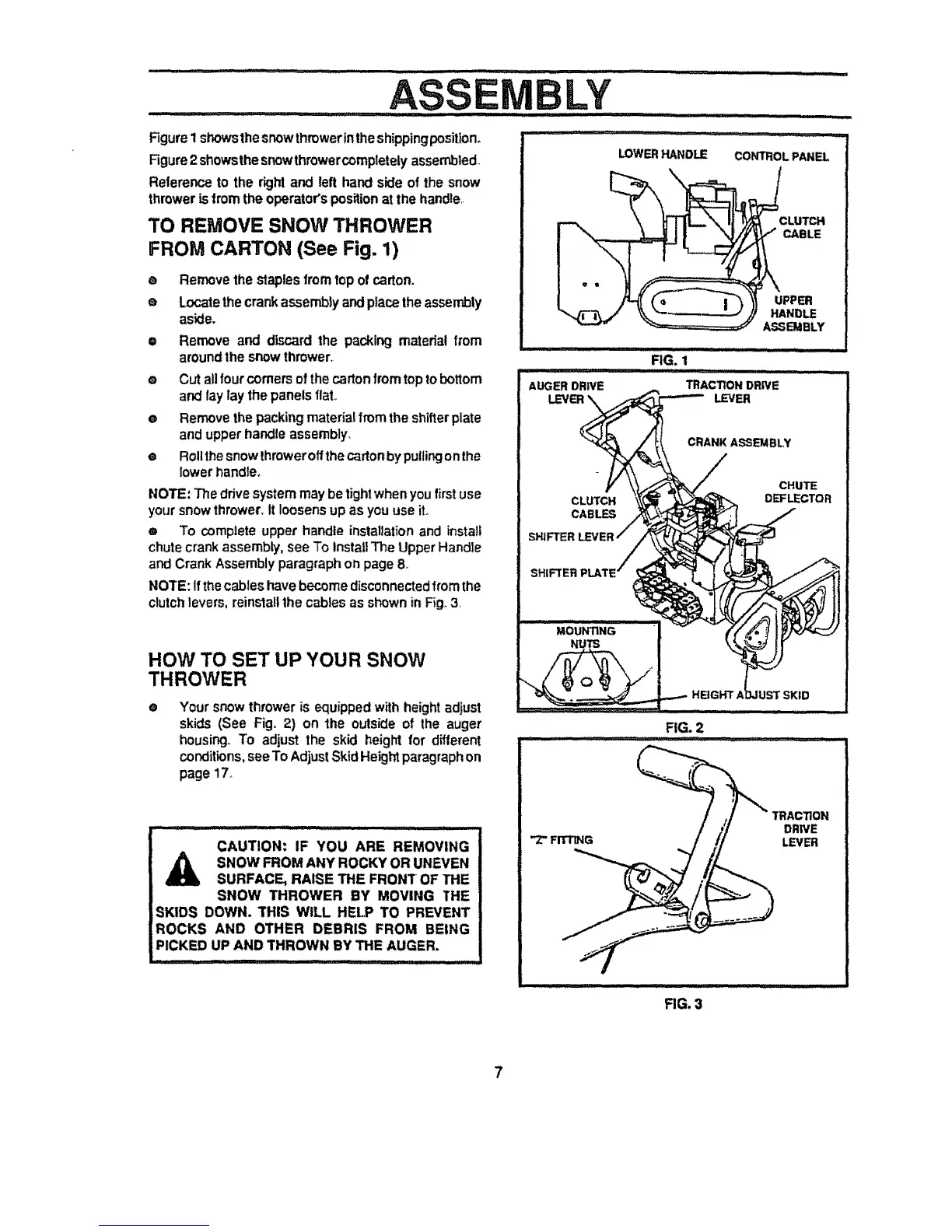

Craftsman 536.884821 - To Remove Snow Thrower from Carton; How to Set up Your Snow Thrower; Clutch Levers

......................ASSE..........L¥ ..............'.............
Hi, _lll,lllll, .......... -.. ........................ ii ll.i ill _,_
,,, .__..:. ...................... .......................................... .,_:..
Figure1showsthe snowthmwerintheshippingposition.
Figure2 showsthe snowthrowercomptetetyassembled,
Referenceto the righl and left hand side of the snow
throwerisfrom the operator'spositionat the handle,,
TO REMOVE SNOW THROWER
FROM CARTON (See Fig. 1)
e Removethestaplesfromtop of carton.
o Locate the crankassembly and placethe assembly
aside,
e Remove and discard the packing material from
aroundthe snowthrower,.
® Cut allfourcomersof thecartonfromtop to bottom
and lay laythe panelsflat,.
e Removethepackingmaterialfrom theshifterplate
and upperhandleassembly.
e Rollthesnowlhmweroffthecartonbypullingonthe
lowerhandle,,
NOTE: Thedrive systemmay betightwhenyoufirstuse
yoursnowthrower.It loosensup as youuse ito
e To completeupper handle installationand install
chutecrankassembly,see To InstallThe UpperHandle
and CrankAssemblyparagraphon page8.
NOTE: Ifthecableshave becomedisconnectedfromthe
clutchlevers, reinstallthe cablesas shownin Fig.3,
HOW TO SET UP YOUR SNOW
THROWER
o
Your snow throweris equippedwithheightadjust
skids (See Fig. 2) on the outsideof the auger
housing,,To adjust the skid height for different
conditions, seeToAdjustSkidHeightparagraphon
page 17._
CAUTION: IF YOU ARE REMOVING
,_ SNOW FROM ANY ROCKY OR UNEVEN
SURFACE, RAISE THE FRONT OF THE
SNOW THROWER BY MOVING THE
SKIDS DOWN. THIS WILL HEt.P TO PREVENT
ROCKS AND OTHER DEBRIS FROM BEING
PICKED UP AND THROWN BY THE AUGER,
.............. _ ;; _ .......... ....... ±
LOWER HANDLE CONTROL PANEL
CLUTCH
CABLE
UPPER
HANDLE
ASSEMBLY
CRANK ASSEMBLY
CLUTCH
CABLES
CHUTE
DEFLECTOR
SHIFTER
FIG. 2
"Z" FITTING
TRACTION
DRt!/E
LEVER
FIG. 3
7
