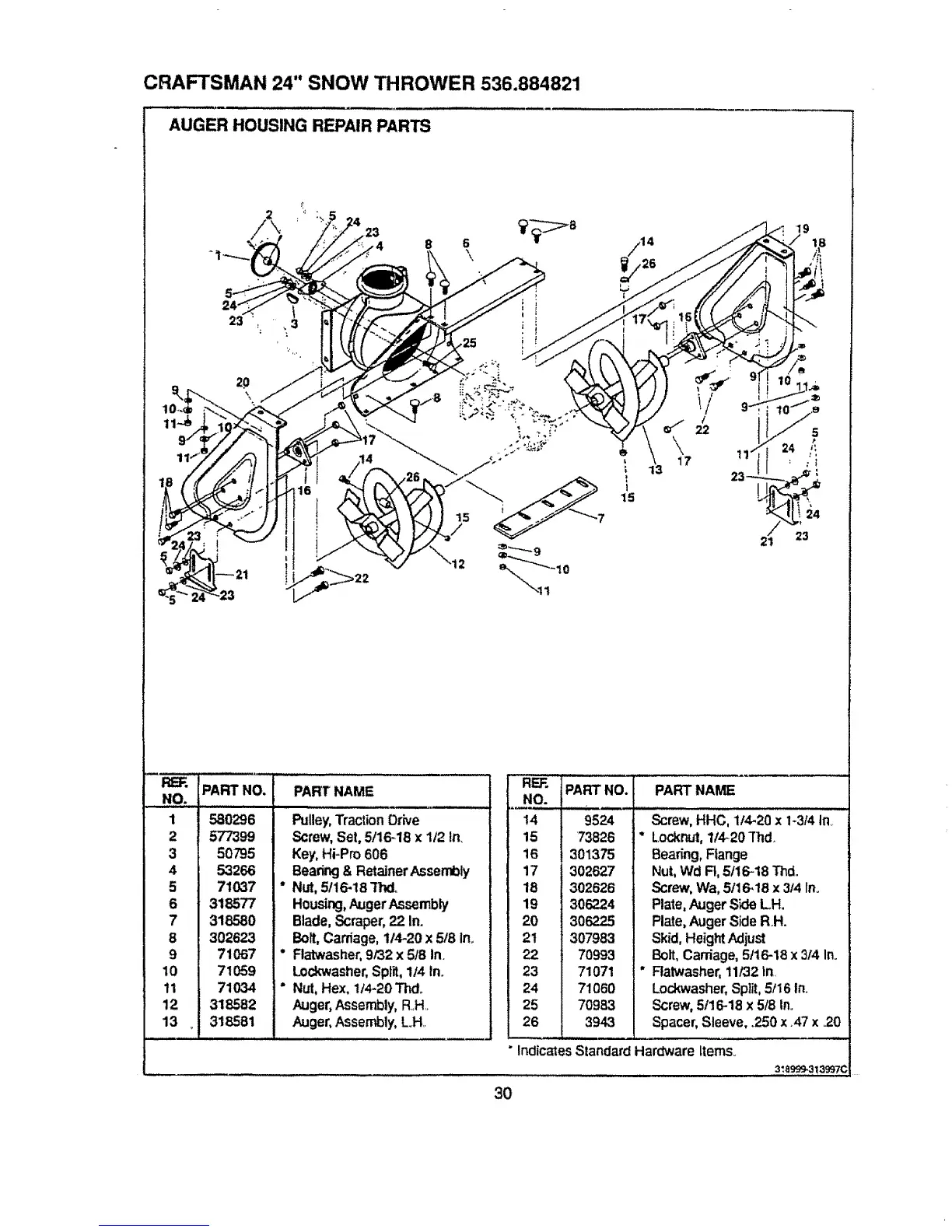

CRAFTSMAN 24" SNOW THROWER 536.884821
AUGER HOUSING REPAIR PARTS
2 _ .r23
6
\
//14
16
21
23
REF. PART NO.
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
580296
577399
5O795
53266
71037
318577
318580
302623
71067
71059
71034
318582
318581
PART' NAME
,,,,,,,,,,i,,,,,,,,,,, i ,llJ
Pulley,Traction Drive
Screw, Set, 5/16-18 x 1/2 in,
Key, Hi-Pro 606
Bearing & Retainer Assembly
" Nut, 5116-18 "Thd°
Housing, Auger Assembly
Blade, Scraper, 22 In.
Bolt, Carriage, 114-20 x 5/8 Ino
" Flatwasher, 9/32 x 5/8 in.
Lockwasher, Split, 1/4 tn.
" Nut, Hex, 1/4-20Thdo
Auger, Assembly, RH
Auger, Assembly, LH
RE]. PART NAME
NO.
14
15
16
17
18
19
2O
21
22
23
24
25
26
"Indicates Standard Hardware ltems_
!.A ,01
9524
73826
301375
302627
302626
306224
3O6225
307983
70993
71071
71060
70983
3943
Screw, HHC, 1/4-20 x i-3/4 In.
* L.o_._nut,1/4-20Thd.
Beating, Flange
Nut,Wd R, 5116-18Thd.
Screw, Wa,5116,18x 3/4 In.
Plate,AugerSideLH.
Plate,AugerSide RH.
Skid, HeightAdjust
Bolt, Carriage,5t16-18x 314In.
" Ratwasher,11/32in
Look'washer,Spilt,5t16 in.
Screw,5f16-18x 5t8 In.
Spacer,Sleeve, .250x .47x 20
3 ',8999,313997C
30
