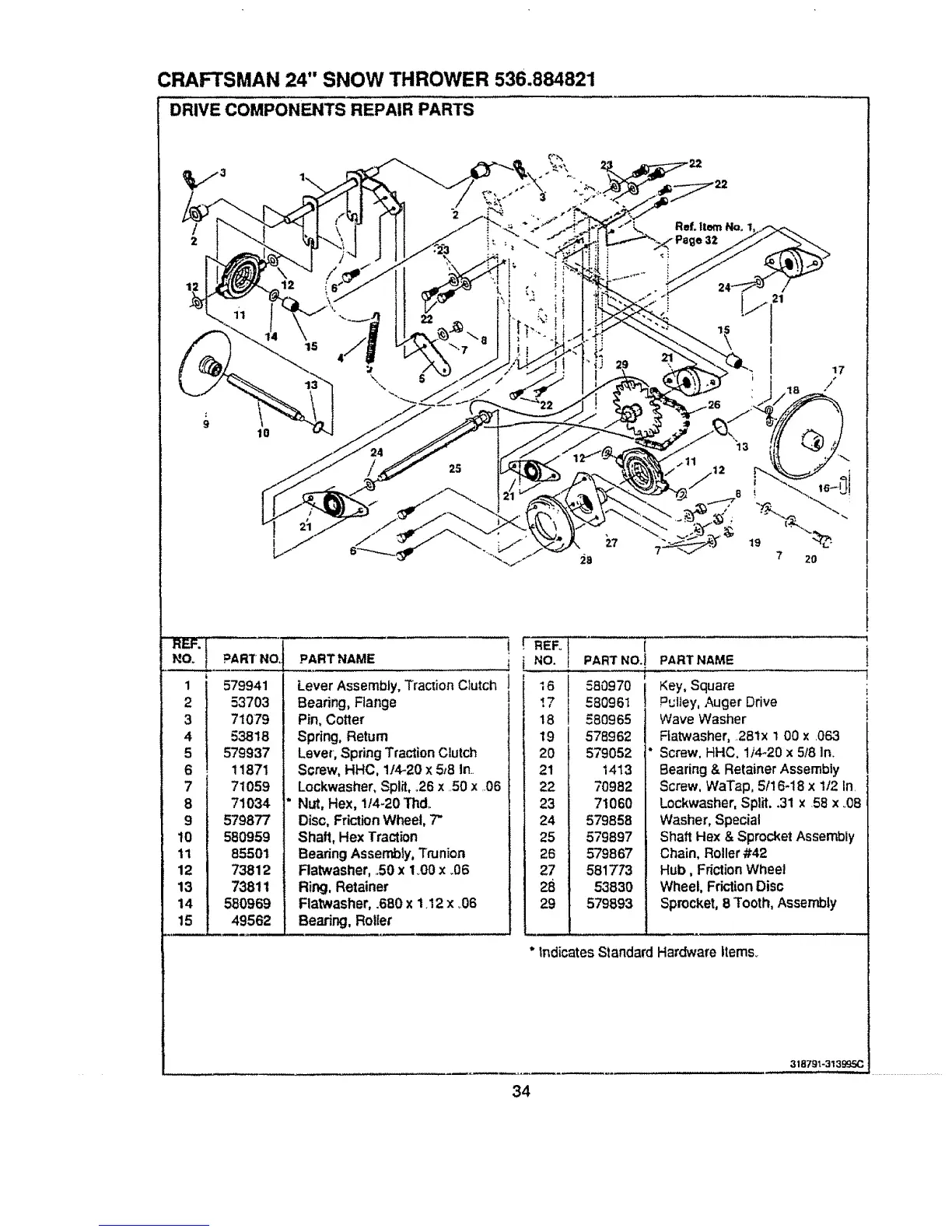

CRAFTSMAN 24" SNOW THROWER 536.884821
DRIVE COMPONENTS REPAIR PARTS
2
\
lO
12
I
15
17
/
REF_¸
NO.
1
2
3
4
5
6
7
8
9
t0
11
12
13
14
t5
PART NO
579941
53703
71079
53818
579937
11871
71059
71034
579877
580959
85501
73812
73811
580969
49562
PART NAME . .!
Lever Assembly, Traction Clutch !
Bearing, Flange
!
Pin, Cotter
Spring, Return
Lever, Spring Traction Clutch
Screw, HHC. 1./4-20 x 5_8 In
Lockwasher, Split, ,26 x ,50 x ,,06
NLrt, Hex, !/4-20 Tnd,.
Disc, Friction Wheel, "7"
Shaft, Hex Traction
Bearing Assembly, Trunion
Ratwasher, .50 x I _00x .06
Ring, Retainer
Flatwasher, .680 x 1.12 x ,.06
Bearing, Rolter
r i
,1
16
_7
;8
19
20
21
22
23
24
25
28
27
28
29
{
PART NO.J
580970 j
580961
580965
578962
579052 *
1413
70982
71060
579858
579897
579867
581773
53830
579B93
PARTNAME
Key, Square
Pulley, Auger Drive
Wave Washer
Ftatwasher, ,281x 1 00 x ,063
Screw. HHC, 1)4-20 × 5/8 In.
Bearing & Retainer Assembty
Screw, WaTap, 5/16-18 x i/2 In
Lockwasher, Split..31 x 58 x ,,08
Washer, Special
Shaft Hex & Sprocket AssembJ),,
Chain, Roller #42
Hub, Friction Wheel
Wheel, Friction Disc
Sprocket, 8 Tooth, Assembly
IndicatesStandard Hardware Items.
!
......1
34
