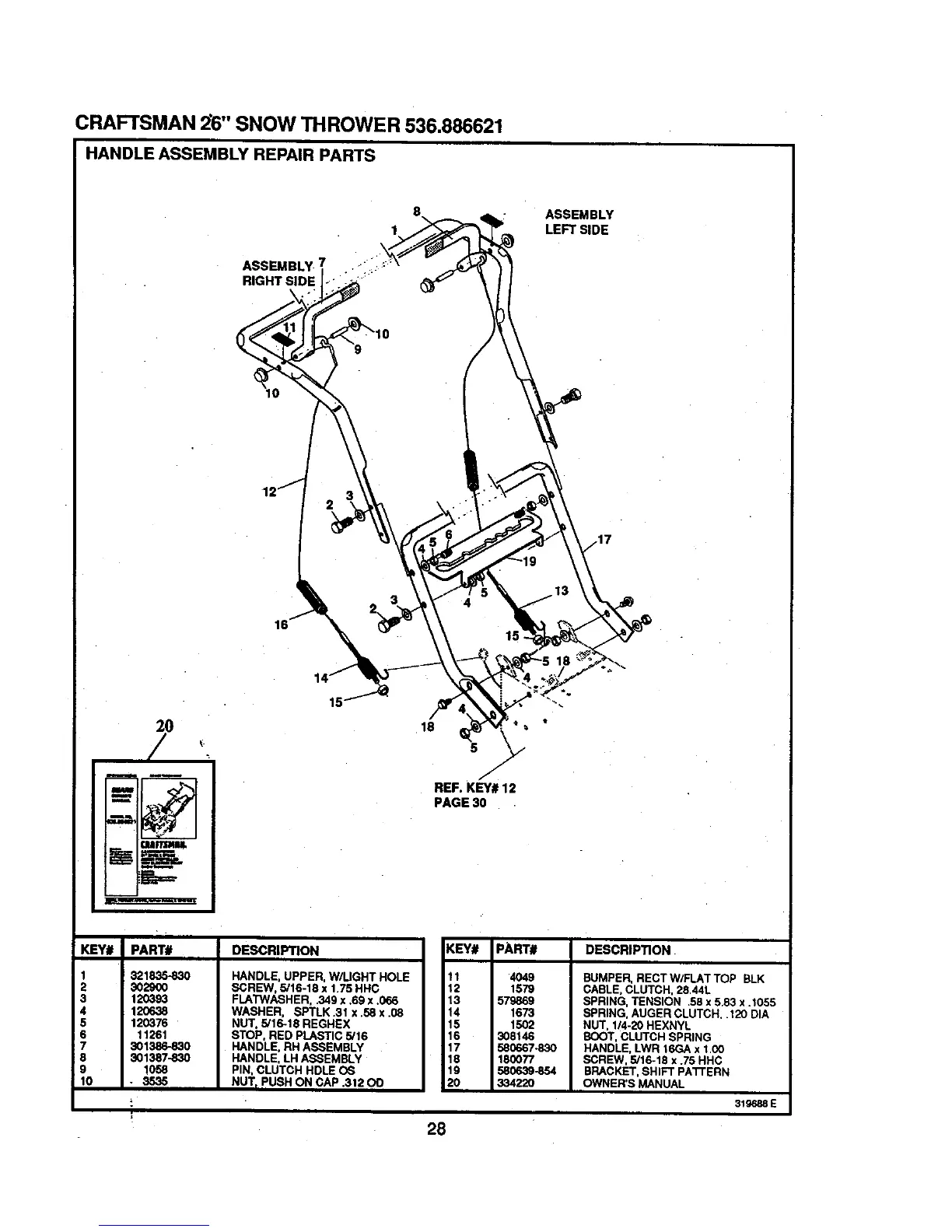

CRAFTSMAN 2"6"SNOW THROWER 536.886621
HANDLE ASSEMBLY REPAIR PARTS
ASSEMBLY 7
RIGHT SIDE "
1
ASSEMBLY
LEFT SIDE
/
/
20
/
/
m[
KEY# [ PART# DESCRIPTION
I
1 I 321835-830 HANDLE, UPPER, WIUGHT HOLE
2 I 302900 SCREW, 5/16-18 x 1.75 HHC
3 I 120393 FLATWASHER, .349 x .69 x .066
4 I 120638 WASHER, SPTLK 31 x .58 x .08
5 I 120376 NUT, 5/16-18 REGHEX
S I 11261 STOP. RED PLASTIC 5/16
7 301386-830
I HANDLE, RH ASSEMBLY
B
1
301387-830
HANDLE. LH ASSEMBLY
I 1058 PIN, CLUTCH HDLE OS
10 I" 3535 NUTr pUSH ON CAP .312 OO
!
18
5
J
f
REF. KEY# 12
PAGE 30
KEY# PART# DESCRIPTION
11 4049 BUMPER, RECTW/FLATTOP BLK
12 1579 CABLE, CLUTCH, 28.44L
13 579869 SPRING, TENSION .58 x 5.83 x .1055
14 1673 SPRING, AUGER CLUTCH, A20 DIA
15 1502 NUT, 1/4-20 HEXNYL
16 308146 BOOT, CLUTCH SPRING
17 580667-830 HANDLE, LWR t6GA x 1,00
18 180077 SCREW, 5/16-18 x .75 HHC
19 580639-854 BRACKET, SHIFT PA'I-r ERN
20 334220 OWNER'S MANUAL
319688[
28
