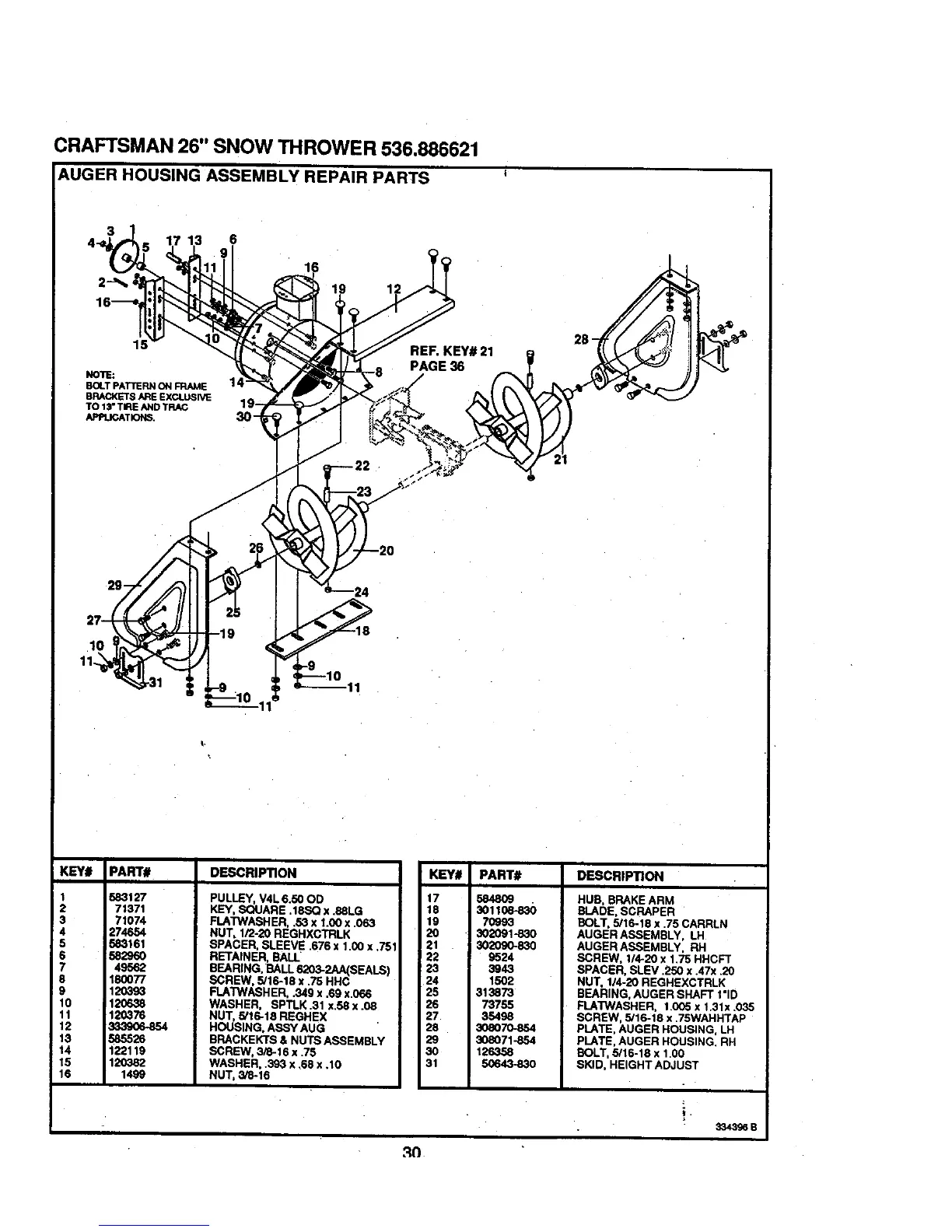

CRAFTSMAN 26" SNOW THROWER 536.886621
AUGER HOUSING ASSEMBLY REPAIR PARTS
4-.TJ-L S 17 13 6
l, 9
• PAGE 36 - '
NOTE: ! 8 I
,,,_,>
"_ .31 , +-9 :', ;_--_-11
t i,,¢'
K_i PART#
1 583127
2 71371
3 71074
4 274654
5 583161
6 582960
7 49562
6 1_O077
9 12_93
10 120638
11 120376
12 333906-854
13 585526
14 122119
15 120382
16 1499
DESCRIPTION
PULLEY, V4L 6.50 OD
KEY, SQUARE .18SQ x .88LG
FLA'IWASHER, .53 x 1.00 x .063
NUT_ 1/2-20 REGHXCTRLK
SPACER, SLEEVE .676 x 1.00 x .751
RETAINER, BALL
BEARING, BALL 6203-2AA(SEALS)
._3REW, 5/16-18 x .75 HHG
FLATWASHER, .349 x .69 x.066
WASHER, SPTLK .31 x.58 x .08
NUT, 5/16-18 REGHEX
HOUSING, ASSY AUG
BRACKEKTS & NUTS ASSEMBLY
SCREW, 3/8-16 x .75
WASHER, .393 x .68 x .10
NUT, 3,_-16
KEY# PART#
17 5848O9
18 _01106-e30
19 70993
20 302091-830
21 302090830
22 9524
23 3943
24 1502
25 313873
26 73755
27 35498
28 308070-854
29 308071-854
30 126358
31 50643-830
Rf)
i
DESCRIPTION
HUB, BRAKE ARM
BLADE, SCRAPER
BOLT, 5/16.18 x .75 CARRLN
AUGER ASSEMBLY, LH
AUGER ASSEMBLY, RH
SCREW, 1/4-20 x 1.75 HHCFT
SPACER, SLEV .250 x .47x .20
NUT, 1/4-20 REGHEXCTRLK
BEARING, AUGER SHAFT 1"ID
FLA'IWASHER, 1.005 x 1.31x .035
SCREW, 5/16-18 x .75WAHHTAP
PLATE, AUGER HOUSING, LH
PLATE, AUGER HOUSING. RH
BOLT. 5/16-18 x 1.00
SKID. HEIGHT ADJUST
1,
33439_B
