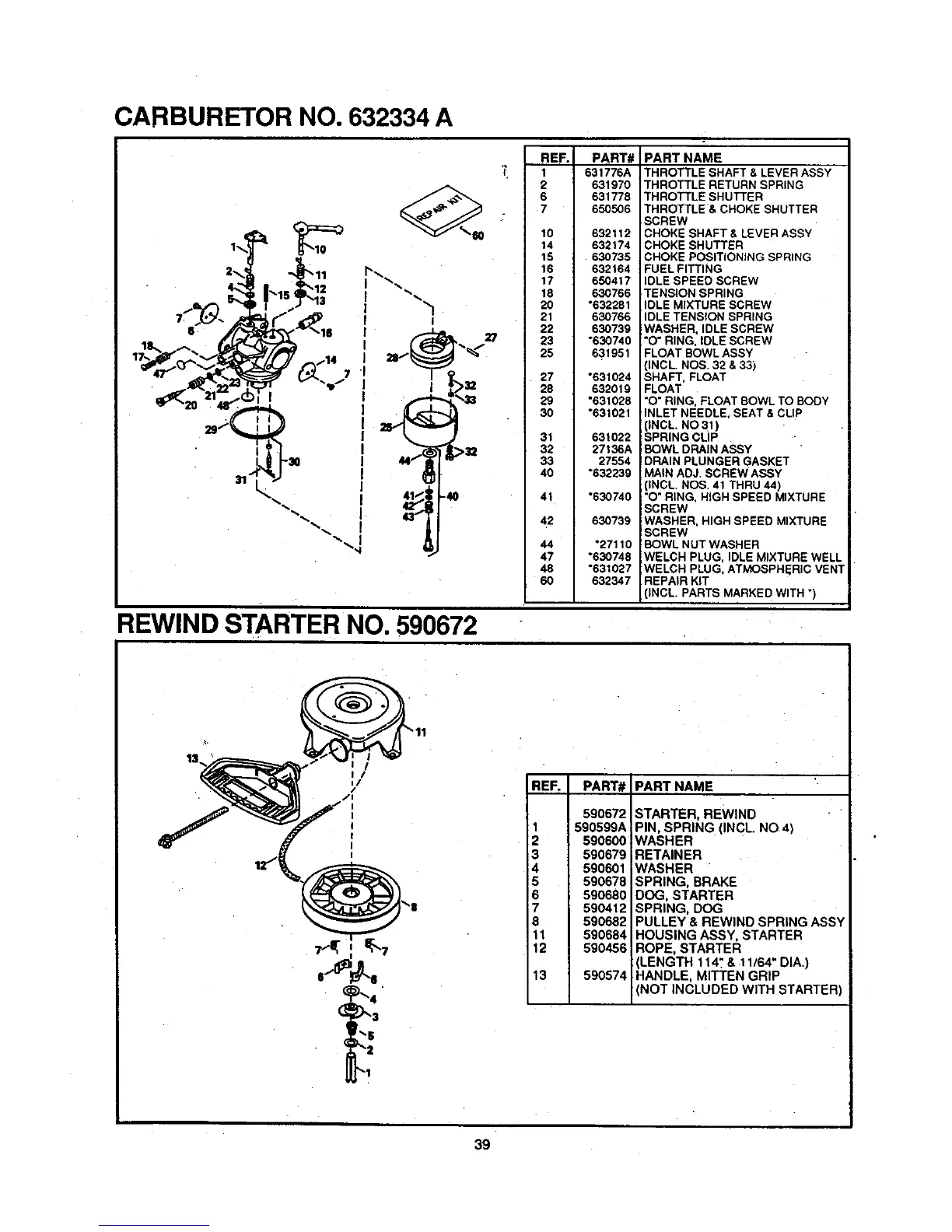

Craftsman 536.886621 - Carburetor Diagram; Rewind Starter Diagram

CARBURETOR NO. 632334 A
REWIND STARTER NO. 590672
REF. PART#
1 631776A
2 631970
6 631778
7 550506
10 632112
14 632174
15 630735
16 632164
17 650417
18 630766
20 "632281
21 630766
22 630739
23 "630740
25 631951
27 "631024
28 632019
29 "631028
30 "631021
31 631022
32 27136A
33 27554
40 "632239
41 "630740
42 630739
44 *27110
47 "630748
48 "631027
60 632347
PART NAME
THROTTLE SHAFT & LEVER ASSY
THROTTLE RETURN SPRING
THROTTLE SHUTTER
THROTTLE & CHOKE SHUTTER
SCREW
CHOKE SHAFT & LEVER ASSY
CHOKE SHUTTER
CHOKE POSITIONING SPRING
FUEL FITTING
IDLE SPEED SCREW
TENSION SPRING
IDLE MIXTURE SCREW
IDLE TENSION SPRING
WASHER, IDLE SCREW
"O" RING, IDLE SCREW
FLOAT BOWL ASSY
(INCL. NOS. 32 & 33)
SHAFT, FLOAT
FLOAT
"O" RING, FLOAT BOWL TO BODY
INLET NEEDLE. SEAT & CLIP
(INCL. NO 31)
SPRING CLIP
BOWL DRAIN ASSY
DRAIN PLUNGER GASKET
MAIN ADJ. SCREW ASSY
(INCL. NOS. 41 THRU 44)
"O" RING, HIGH SPEED MIXTURE
SCREW
WASHER, HIGH SPEED MIXTURE
SCREW
BOWL NUT WASHER
WELCH PLUG, IDLE MIXTURE WELL
WELCH PLUG, ATMOSPHERIC VENT
REPAIR KIT
(INCL. PARTS MARKED WITH ")
REF. PART# PART NAME
I
2
3
4
5
6
7
8
11
12
13
590672
590599A
590600
590679
590601
590678
590680
590412
590682
590684
590456
590574
STARTER, REWIND
PIN, SPRING (INCL NO4)
WASHER
RETAINER
WASHER
SPRING, BRAKE
DOG, STARTER
SPRING, DOG
PULLEY & REWIND SPRING ASSY
HOUSING ASSY, STARTER
ROPE, STARTER
(LENGTH 114': &.11/64" DIA.)
HANDLE, MITTEN GRIP
(NOT INCLUDED WITH STARTER)
39
