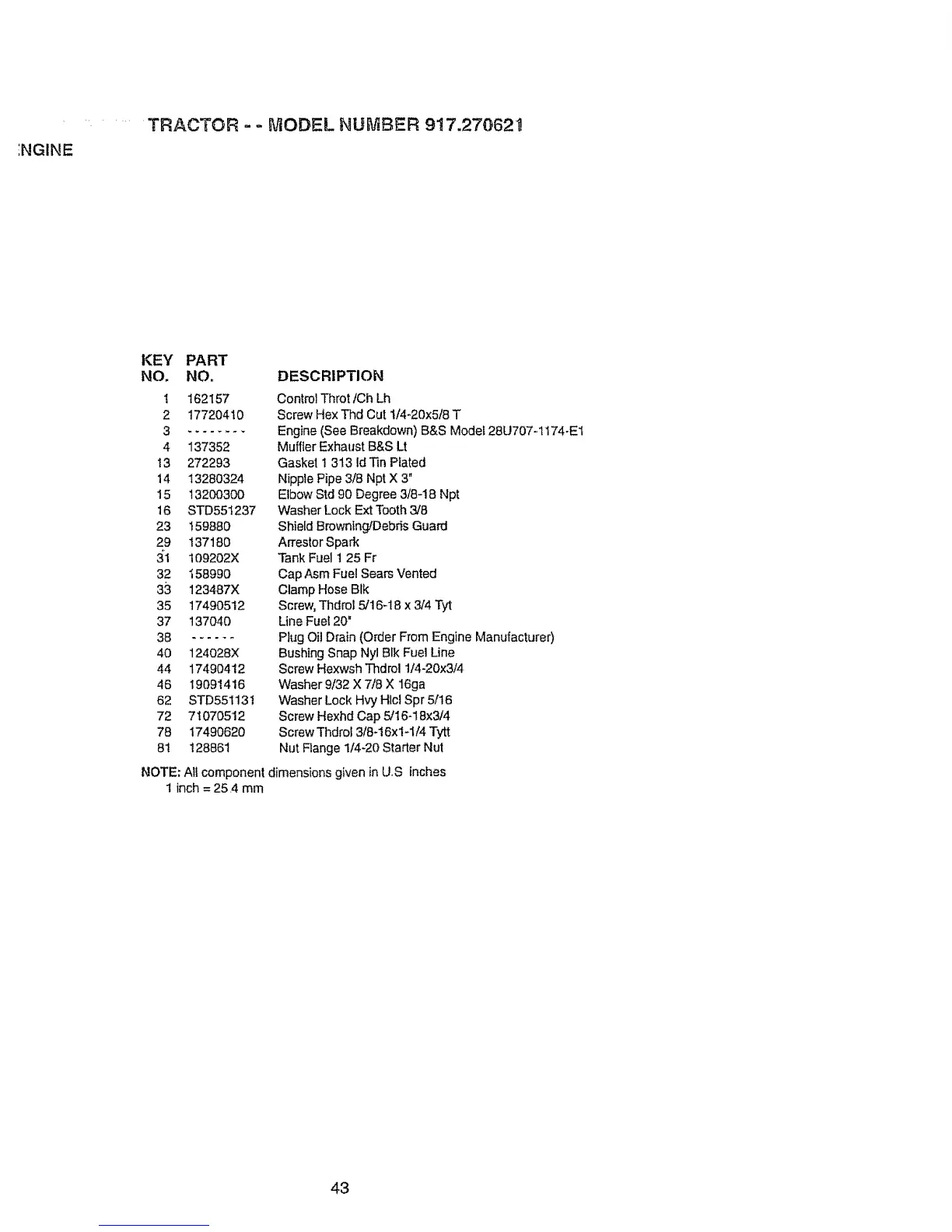

.... TRACTOR - o MODEL NUMBER 917.27062_
INGINE
KEY PART
NO. NO,
! 162157
2 17720410
3 --------
4 137352
t3 272293
14 13280324
15 13200300
16 STD551237
23 159880
29 137180
31 109202X
32 158990
33 123487X
35 17490512
37 137040
38 ......
40 124028X
44 17490412
46 19091416
62 STD55113t
72 71070512
78 17490620
81 128861
DESCRIPTION
Control Throt/Ch Lh
Screw He×Thd Cut 1/4_20x5t8T
Engine (See Breakdown) B&S Model 28U707_1174-E1
Muffler Exhaust B&S Lt
Gasket 1 313 ld Tin Plated
Nipple Pipe 3/8 Npt X 3"
Elbow Std 90 Degree 3/8-18 Npt
Washer Lock Ext Tooth 3/8
Shield Brownfng/Debris Guard
Arrestor Spark
Tank Fuel t 25 Fr
CapAsm Fuel Sears Vented
Clamp Hose BIk
Screw, Thdrol 5/16-18 x 3/4 Tyt
Line Fuel20"
Plug Oi! Drain (Order From Engine Manufacturer)
Bushing Snap Nyl Blk Fuel Line
Screw Hexwsh Thdrol 1/4-20x3/4
Washer 9/32 X 7/8 X 16ga
Washer Lock Hvy Hlcl Spr 5/16
Screw Hexhd Cap 5/16-18×3/4
Screw Thdrot 3/8-16x1-1/4 Tytt
Nut Flange 1/4-20 Starter Nut
NOTE: All component dimensions given in US inches
1 inch = 25.4 mm
