Crane Merchandising Systems Autobar INFINITY - Dispense Pipe Lengths; Instant Machine - 8 Canister; Single Freshbrew Machine - Paperless Brewer

IN FI NI TY36
AU TO BA R

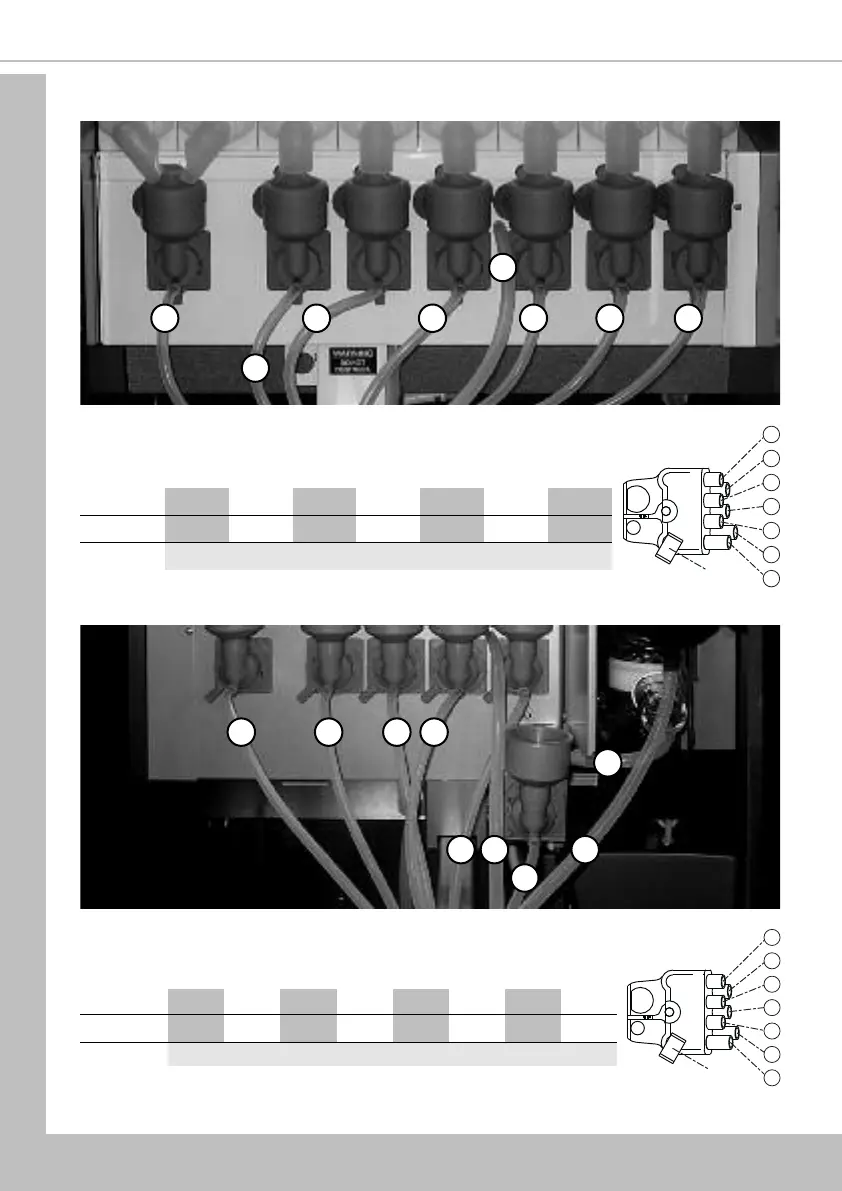

Section 8 - Dispense Pipe Lengths
Section 8 - Dispense Pipe Lengths
1
5
6
7
3
4
2
H
1
2
3 4 5 6 7
H
8.1 Instant Machine - 8 Canister
Pipe No 1 2 3 4 5 6 7
Length 390mm 340mm 320mm 320mm 350mm 380mm 420mm
Diameter 6mm I.D. x 9.5mm O.D.
H = Hot Water Dispense Pipe. 8mm I.D. x 12.5mm O.D.
1
5
6
7
3
4
2
H
8.2 Single Freshbrew Machine - Paperless Brewer
Pipe No 1 2 3 4 5 6 7 8
Length
420mm 370mm 350mm 350mm 340mm 200mm 380mm 130mm
Diameter 6mm I.D. x 9.5mm O.D. (No 7. 8mm I.D. x 12.5mm O.D.)
H = Hot Water Dispense Pipe. 8mm I.D. x 12.5mm O.D.
1 2 3 4
5 7
8
H
6
