Crane Barnes SITHE 3XSCM - Page 9

9
THREE PHASE 460-575 VOLT AC (orange molded plug)THREE PHASE 460-575 VOLT AC (orange molded plug)
Power CablePower Cable Motor Lead IDMotor Lead ID
Green (Ground) Green
Black 1
Red 2
White 3
Jumpered Inside Cord
Automatically (No user jump-
ering required)
T4 & T7 Together
T5 & T8 Together
T6 & T9 Together
THREE PHASE 208-230 VOLT AC (black molded plug)THREE PHASE 208-230 VOLT AC (black molded plug)
Power CablePower Cable Motor Lead IDMotor Lead ID
Green (Ground) Green
Black 1
Red 2
White 3
Jumpered Inside Cord
Automatically (No user
jumpering required)
T4, T5 & T6 Together
T11 & T7 Together
T13 & T9 Together
T12 & T8 Together
MOISTURE AND TEMPERATURE SENSORSMOISTURE AND TEMPERATURE SENSORS
Power CablePower Cable Lead IDLead ID
Brown P1 (Temperature Sensor)
Yellow P2 (Temperature Sensor)
Orange W1 (Moisture Sensor)
Blue W2 (Moisture Sensor)
SINGLE PHASE 208-230 VOLT AC (black molded plug)SINGLE PHASE 208-230 VOLT AC (black molded plug)
Power CablePower Cable Motor Lead IDMotor Lead ID
Green (Ground) Green
Black 1 (Run)
Red 2 (Start)
White 3 (Common)
Jumpered Inside Cord
Automatically (No user
jumpering required)
T4, T5 & T6 Together
T11 & T7 Together
T13 & T9 Together
T12 & T8 Together
* Requires Start/Run Caps and Start Relay in panel *

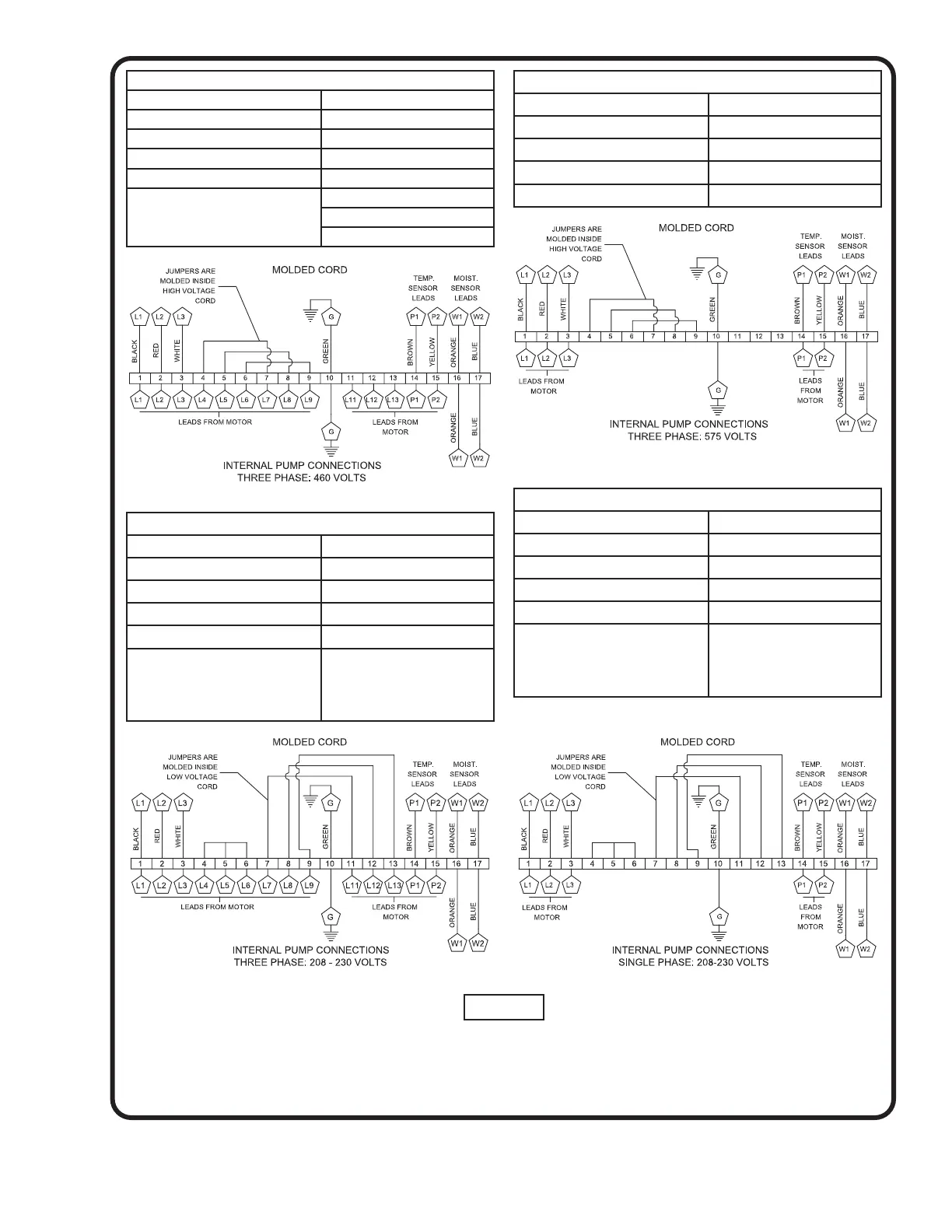

FIGURE 3
External Ground Note:
(Grd symbol) An external ground screw is provided on the side of the motor cap which can be
used for supplemental bonding connection where local codes permit or require such connection.
