Page 17
SNACK/REFRESHMENT CENTER PROGRAMMING GUIDE
1670002
April, 1999

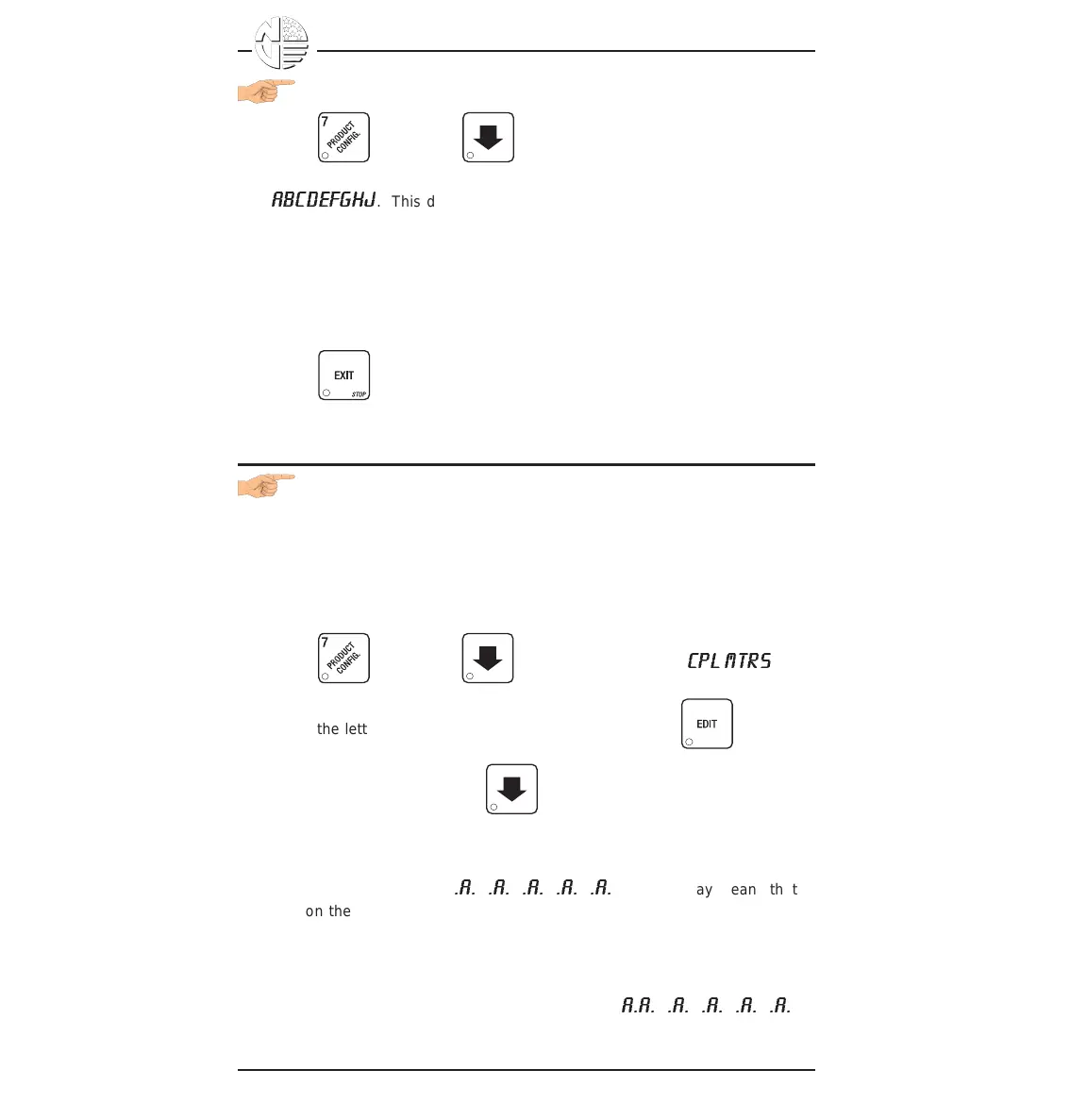

IDENTIFY THE TRAYS IN THE MERCHANDISER
1. Press , then press until the display shows something like
this:
ABCDEFGHJ
. This display means that all trays (A - J) are available for
vending. An unavailable tray has its letter replaced by a blank space.
2. Press the appropriate letter to toggle the display on or off.
NOTE
Unconfigured trays will not appear in the diagnostics.
3. Press until you have left the function.
COUPLE/UNCOUPLE TRAY MOTORS
Two motors may be electronically coupled to turn together to vend a wide
product. In some cases, you may need to connect or disconnect the wire
harness from a specific motor. See your Setup Guide for more information.
NOTE: An even numbered motor (0, 2, 4, etc.) may only be coupled to an odd
numbered motor (1, 3, 5, etc.)
1. Press , then press until the display shows
CPL MTRS
.
2. Press the letter of the tray you want to couple, or press to couple
motors on tray A, then press to get to the desired tray.
COUPLE ADJACENT MOTORS:
A. The display shows +
.A.
+
.A.
+
.A.
+
.A.
+
.A.
. This display means that
on the A tray, all adjacent motors (0 and 1, 2 and 3, etc.) are coupled.
NOTE: The +s and As represent motor positions 0 through 9.
B. On the CONTROL PANEL, press the EVEN motor number of the pair
you wish to couple or uncouple. In our example, to uncouple motors
0 and 1, press 0. The display will now show
A.A.
+
.A.
+
.A.
+
.A.
+
.A.
.
