OPERATION
5.7 BRAKE ADJUSTMENT

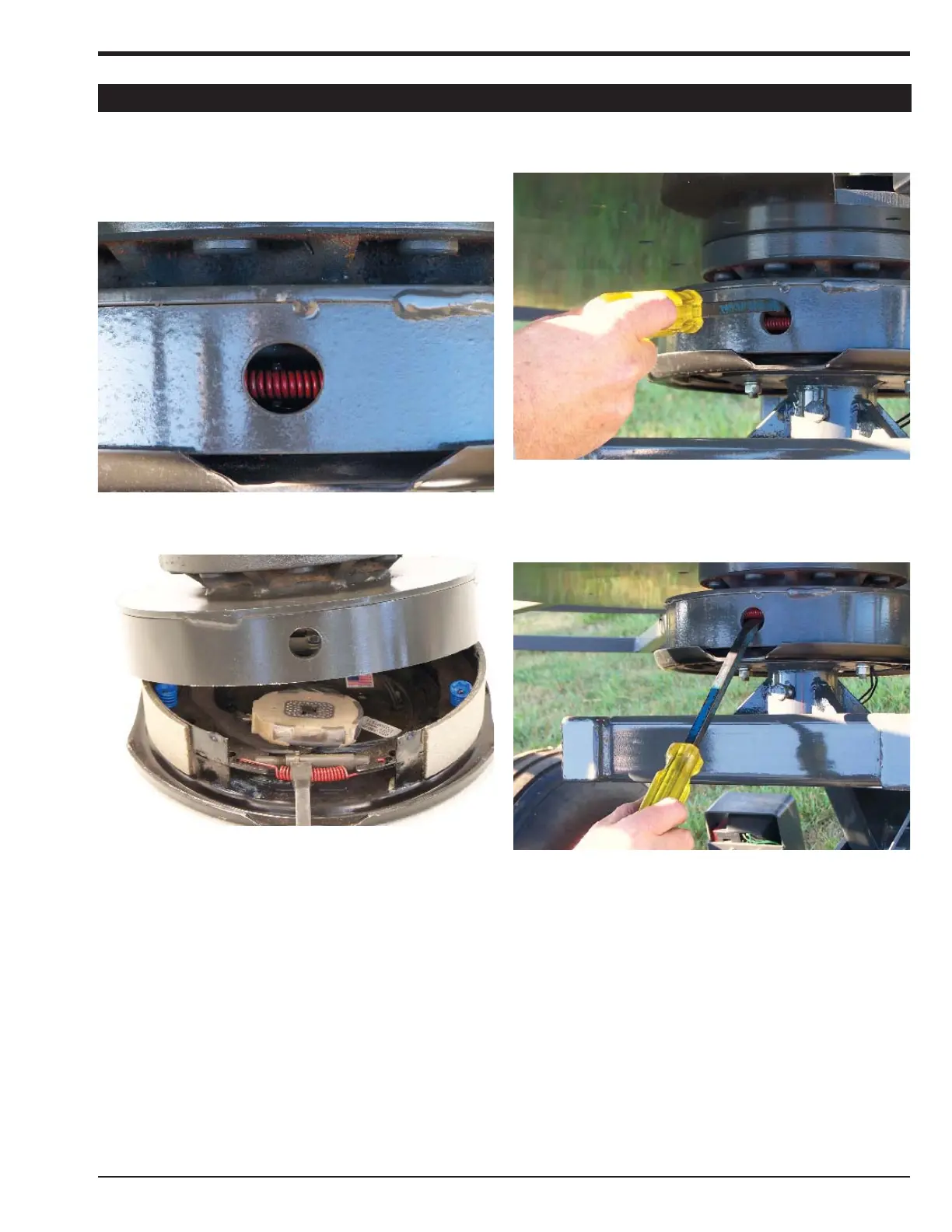

Figure 4: Stringer Trailer Brake Adjustment Port
Figure 5: Expanded view showing star adjuster
When making this adjustment the table top should be po-
sitioned so that the adjustment port is facing the front side
of the trailer.
Figure 6: More tension on brake
To adjust brake to more tension push the star adjuster down
Figure 7: Less tension on brake
To adjust brake to less tension push the star adjustment up
