Crary PRO - Octagon Spool Top

Tile Plow Owner’s/Parts Manual
52
PN:90806-00 R090114
OCTAGON SPOOL TOP 09/14

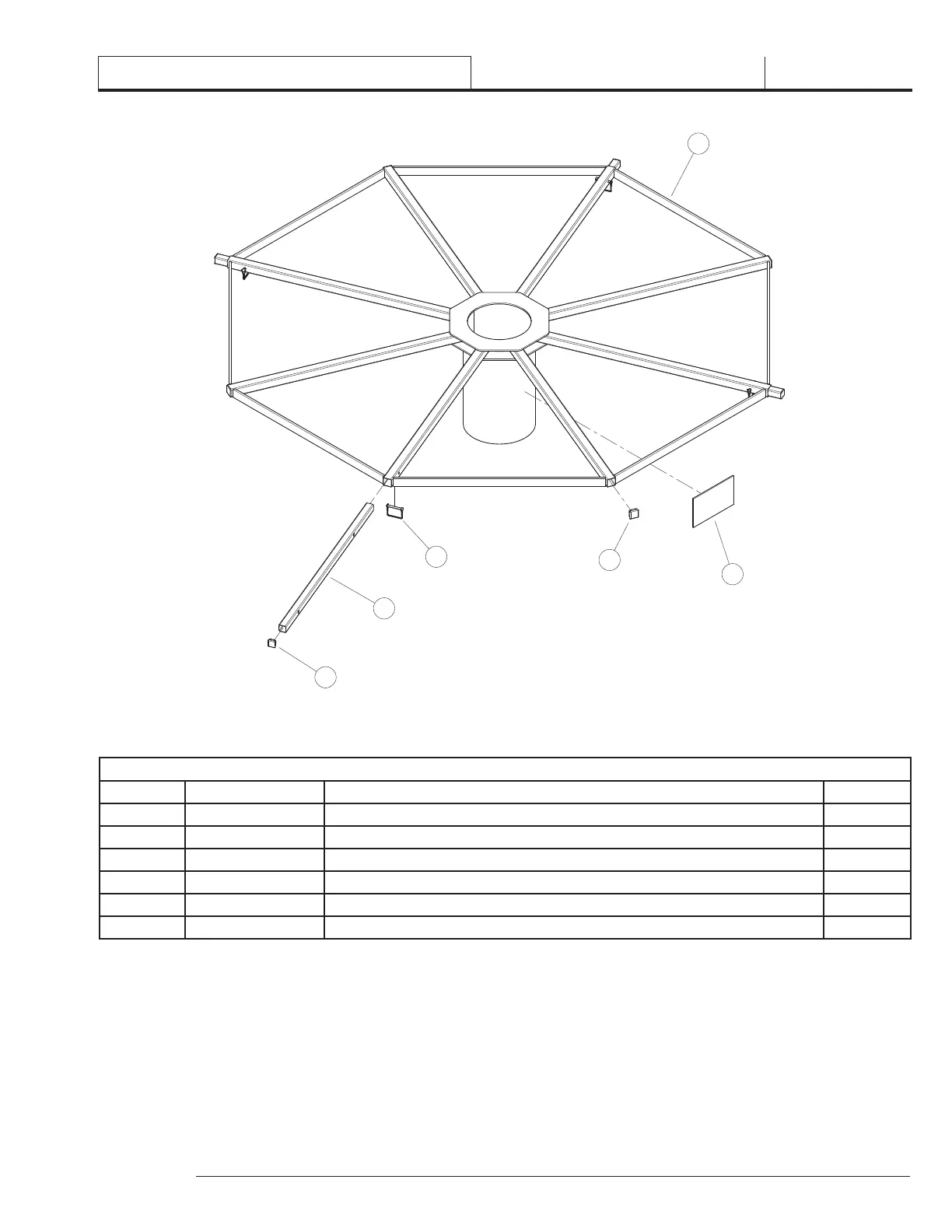

ASSEMBLY, OCTAGON SPOOL TOP ( 90427-00)
ITEM PART NUMBER DESCRIPTION QTY
1 15935-00 PIN, SNAP, 5/16 X 2-1/4" USABLE LENGTH 4
2 15939-00 PLUG, SQUARE TUBING - 1.50" X 14 GA 4
3 15940-00 PLUG, SQUARE TUBING - 1.25" X 14 GA 4
4 32898-00 DECAL, TILE PRO, LARGE 1
5 90428-33 WELDMENT, OCTAGON SPOOL TOP 1
6 90436-33 TUBE, OCTAGON SPOOL ARMS 4
1
2
3
4
5
6
